Hot water shrink tunnel for packaging

Enhance your packaging line efficiency by seamlessly integrating a hot water shrink tunnel, ensuring consistent quality and precise wrapping for vacuum-packed food products.

Automates Shrink Wrapping for Packaged Foods

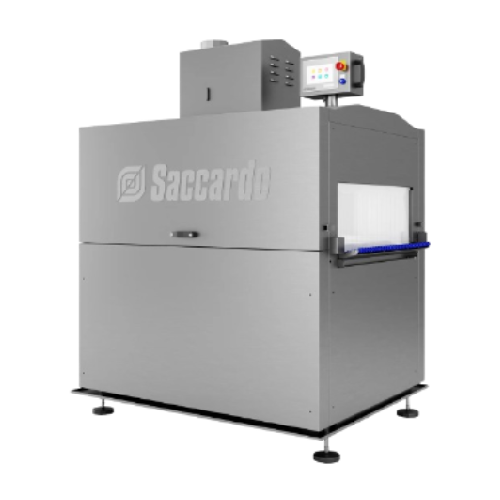

The Saccardo Hot Water Shrink Tunnel TU800, offered by StarVac Systems, is engineered to revolutionize food packaging operations. Constructed entirely from stainless steel, this shrink tunnel minimizes heat loss via its insulated design, optimizing energy use and operational efficiency. Ideal for packaging a variety of vacuum-sealed products—from steaks to tofu blocks—the TU800 enhances production line automation with features like PLC control and customizable conveyor speed. Its continuous, automated cycle is capable of handling high volumes, making it suitable for food packaging companies and meat processing plants. The TU800 employs an electronic temperature control system and supports water heating via electrical resistance or optional steam injection, ensuring precise shrink wrapping. Automatic load and unload functions, coupled with water level and replenishing automation, further streamline the shrink wrapping process, seamlessly integrating into existing high-productivity packaging lines.

Benefits

  • Streamlines operations with automated loading and unloading, enhancing productivity.
  • Optimizes energy usage through insulated design, reducing operational costs.
  • Ensures high-quality sealing with precise electronic temperature control.
  • Easily integrates into existing lines with adjustable conveyor speed.
  • Minimizes maintenance with automated water level monitoring and replenishing.

General


Applications
Meat products,Packaged cheeses,Vacuum-packed products,Packaged vegetables,Packaged seafood,Packaged foods,Ready-to-eat meals,Packaged snacks,Dairy products
End products
Pre-cooked bacon strips,Packaged fish fillets,Vacuum-sealed cheese wedges,Vacuum-sealed steaks,Packaged nuts,Packaged mixed vegetables,Sealed cheese slices,Shrink-wrapped sausages,Ready-to-eat lasagna,Vacuum-packed tofu blocks
Steps before
Vacuum Packing,Product Loading,Conveyor Belt Setup
Steps after
Unloading,Drying,Packaging
Input ingredients
packaged products,vacuum-packed products
Output ingredients
shrunk products,sealed packages
Market info
Starvac Systems is known for manufacturing high-quality vacuum systems and engineered solutions tailored to various industrial applications. They are reputed for their innovation, reliability, and technical expertise in delivering custom-engineered vacuum equipment.

Technical Specifications


Material
Stainless Steel
Insulation
Heat insulation
Product width
Max 805 mm
Product height
Max 260 mm (optional 350 mm)
Automation
PLC-controlled
Conveyor belt speed
Adjustable
Water temperature control
Electronic system
Water level monitoring
Automatic
Water replenishing
Automatic recall
Heating method
Electrical resistance elements / Optional steam injection
Steam aspiration
Fan-assisted
Dimensions
1562 x 1156 x 1850(H) mm

Operating Characteristics


Working Mechanism
Shower Tunnel
Automation Level
PLC-controlled
Batch vs. Continuous Operation
Continuous-Cycle
Cleaning Method
Automatic
Integrated Steps
Automatic Load and Unload
Conveyor Belt Speed
Adjustable
Temperature Control
Electronic System for Temperature Control
Water Level Monitoring
Automatic

Physical Characteristics


Machine footprint
1562 x 1156 x 1850 mm
Max product width
805 mm
Max product height
260 mm (optional 350 mm)
Material
Stainless steel
Insulation
To minimize heat loss
Discharge method
Automatic load and unload
Conveyor belt
Adjustable speed

Custom Options


Control panel type
Touch screen control panel with PLC integration
Integration possibilities
PLC for process automation
Conveyor belt speed
Adjustable
Water heating method
Electrical resistance elements / Optional steam injection
