Hot air dryers for non-hygroscopic material
Ensure reliable material quality by effectively reducing moisture in non-hygroscopic plastics and polymers, essential for maintaining optimal performance in your production line.
Dries Non-Hygroscopic Plastics and Polymers

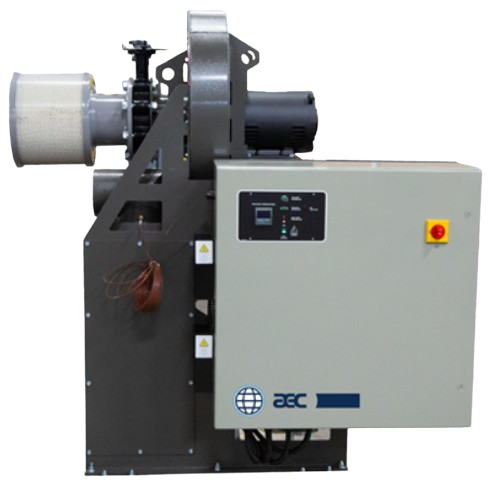

AEC’s HA-F Series Hot Air Dryers are designed to efficiently dry non-hygroscopic plastics and polymers like polyethylene, polypropylene, and polystyrene. These dryers utilize a direct-drive blower system, eliminating belt-related maintenance and providing consistent airflow from 60 to 1500 CFM. The precision 1/16 DIN temperature control, adjustable up to 300°F (149°C), ensures optimal drying conditions while minimizing energy consumption. The dryers integrate seamlessly with existing production lines, working efficiently in pre-processing and final conditioning stages. Their compact design and easy-to-service components, including externally mounted process air heaters, uphold high reliability and ease of maintenance. Customizable features, such as varied supply voltages and additional filtration options, allow for tailored solutions to meet industry-specific demands in plastics, packaging, and automotive sectors.
Benefits
- Ensures consistent drying quality, enhancing the performance of end-products.
- Lowers maintenance requirements with direct-drive blowers, reducing operational disruptions.
- Improves energy efficiency with precise temperature control, minimizing energy costs.
- Enhances operational flexibility with easy integration into existing production lines.
- Customizable features accommodate specific industry needs, providing tailored drying solutions.
- Applications
- Polymers,Plastics,Resins,Thermoplastics,Plastic pellets,Non-hygroscopic materials
- End products
- Pet preforms,Hdpe sheets,Acrylic displays,Polyethylene bottles,Nylon gears,Polypropylene containers,Abs computer housings,Plastic automotive parts,Polystyrene packaging,Pvc pipes,Polycarbonate lenses
- Steps before
- Material Handling,Conveying
- Steps after
- Bulk Material Handling,Storage,Process Cooling
- Input ingredients
- non-hygroscopic materials
- Output ingredients
- dried non-hygroscopic materials
- Market info
- AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.
- Airflow rate
- 60-1500 CFM (102-2548 m3/hr)
- Process temperature control
- Up to 300°F (149°C)
- Electric heaters adjustable
- Up to 350°F (175°C)
- Supply voltage
- 460/3/60
- Size range
- 85-2500 CFM
- Process temperatures
- Up to 250°F (121°C)
- Temperature control type
- Precision,adjustable 1/16 DIN with PID
- Control panel
- NEMA 12
- Main disconnect
- Through-the-door
- Process air heaters
- Externally mounted,drawer-type
- Process air temperature measurement
- Thermocouple
- Power consumption
- Low
- Blower type
- Direct drive,no belts,no sheaves
- Working Mechanism
- Hot air blower with adjustable temperature control
- Airflow Control
- Air throttling valve
- Automation Level
- Precision,adjustable 1/16 DIN temperature control with PID
- Batch vs. Continuous Operation
- Continuous
- Changeover Time
- Quick access through-the-door main disconnect
- Maintenance
- Simple maintenance with direct drive blowers
- Energy Efficiency
- Low power consumption
- Temperature Range
- Adjustable up to 350°F (175°C)
- Accessibility
- Accessible from unit exterior for easy servicing
- Air Incorporation Control
- Blower inlet filter
- Temperature resistance
- Up to 250°F (121°C)
- Flexible hose compatibility
- High temperature
- NEMA rating
- NEMA 12
- Compact Design
- Yes
- Machine Footprint
- Compact
- Material Compatibility
- Non-hygroscopic Materials
- Feed/Discharge Method
- Flexible Dryer Hose
- Adjustable Temperature Control
- 1/16 DIN PID
- Control panel type
- NEMA 12
- Process temperatures
- Adjustable up to 350°F (175°C)
- Supply voltage
- 460/3/60
- Size range
- 85-2500 CFM
- Compact Design
- Yes
- Heater type
- Electric,adjustable
- Airflow control
- Air throttling valve
- Temperature control
- Precision,adjustable 1/16 DIN with PID
- Blower type
- Direct drive,no belts,no sheaves
- Process air heater
- Mounted externally,drawer-type
