Horizontal continuous motion cartoner

An automatic cartoning machine designed for both high-speed operations and medium packaging speeds with an output of approximately 400 cartons/min.

Automatic cartoning solution suitable for various kinds of products

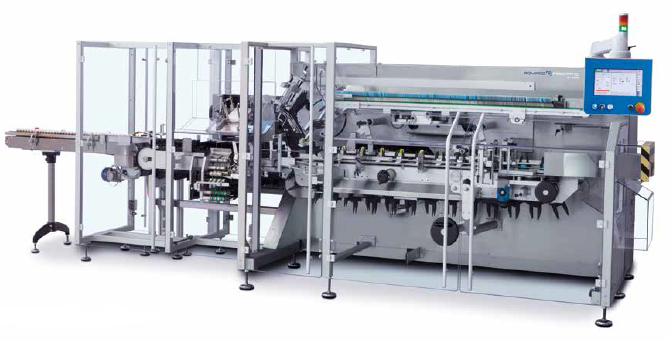

The Romaco Promatic PC 4000 flexible high-speed cartoner series is designed to satisfy the most demanding applications. It offers a wide range of tailor-made feeding options for different products. It consistently delivers flexibility, optimal ergonomics and efficiency at speeds up to 400 cartons /min. They are designed for high-speed operation and medium packaging speeds.

This state-of-the-art automatic cartoning is controlled through total machine management via the operator panel. All movements are harmonized and precisely handled with servo motors and electronic cams, individually optimized for each type of product packed.

This Horizontal continuous motion cartoner has a weight of 2300 to 2500 kg depending on the configuration. Basic dimensions of the machines are around 4900 x 1745 x 200 (L x W x H, in mm).


  • Easy access reduces retooling and cleaning times to a minimum
  • Patented positive carton pick-up and of carton quality
  • Output of up to 400 cartons /min
  • High flexibility for customization
  • Low vibration and noise levels thanks to servo motors and belt drives
