Hollow wafer film-spreading machine for confectionery

Achieve precise and uniform cream distribution on hollow wafer sheets, enhancing efficiency and product quality in high-speed confectionery production.

Spreads Cream on Hollow Wafer Sheets

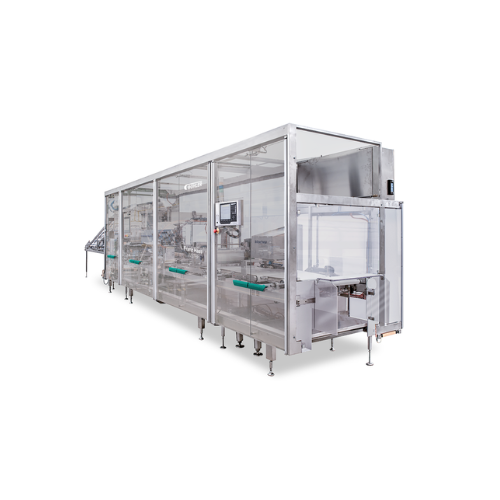

The Franz Haas WSTBF from Bühler Group is a precision-engineered hollow wafer film-spreading machine designed for efficient and uniform cream application. This equipment specializes in evenly distributing a cream film ranging from 3 to 7 mm thick onto up to 60 hollow wafer sheets per minute. By positioning wafer sheets edge to edge in a buffer zone, it uses a film-spreading head to ensure consistent cream coverage, followed by a device that pushes cream into wafer cavities for optimal folding preparation.

Ideal for applications in wafer production, confectionery, and snacks, it produces high-quality end products such as hollow wafer rolls, filled wafer fingers, and layered wafer cakes. The machinery operates continuously at high speeds, making it suitable for demanding food processing environments. Integrated with sturdy Makrolon windows, the machine allows real-time process monitoring to ensure production precision and quality control. Furthermore, it efficiently utilizes raw materials, contributing to sustainable operations by minimizing waste. Tailored to meet diverse production needs, this machine is an invaluable asset for food processing companies seeking a reliable solution in wafer sheet management.

Benefits

  • Ensures precise cream distribution, maximizing product consistency and quality.
  • Optimizes raw material usage, contributing to cost-efficiency and sustainability.
  • Allows for real-time monitoring, enhancing process control and reducing potential errors.
  • Supports high-speed production, increasing throughput with minimal operational delays.
  • Integrates seamlessly into existing production lines, enabling flexible and scalable operations.

General


Applications
Sweets,Wafers,Confectionery,Snacks
End products
Wafer cones,Hollow wafer rolls,Layered wafer cakes,Cream-filled wafer balls,Filled wafer fingers
Steps before
Raw material preparation,Dough preparation,Wafer baking
Steps after
Folding,Packing,Buffering
Input ingredients
hollow wafer sheets,fat cream
Output ingredients
cream-filled hollow wafer sheets
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Spreading Accuracy
3-7 mm cream film
Capacity
Up to 60 wafers/minute
Automation
PLC-controlled
Monitoring
Makrolon windows

Operating Characteristics


Working mechanism
Continuous film spreading
Integrated steps
Film spreading and cavity filling
Automation level
Automated spreading device
Batch vs. continuous operation
Continuous
Changeover time
Quick setup for different wafer sizes
CIP/SIP
Manual cleaning
Material utilization efficiency
Efficient cream distribution
Process monitoring
Viewing through Makrolon windows

Physical Characteristics


Machine footprint
Compact
Film-spreading head
Adjustable
Makrolon windows
Sturdy
Wafer sheet capacity
Up to 60 sheets per minute
Spreading thickness
3-7 mm
Buffer zone
Edge to edge

Custom Options


Control panel type
HMI with Makrolon windows
Integration possibilities
PLC integration
Cream film thickness range
3-7 mm
Wafer sheet capacity
Up to 60 sheets per minute
