High-temperature and high-pressure flow reactor
Achieve unparalleled precision in high-temperature and high-pressure chemical reactions, expanding your capacity to synthesize novel compounds with enhanced safety and accuracy.

Controls High-Temperature High-Pressure Chemical Reactions

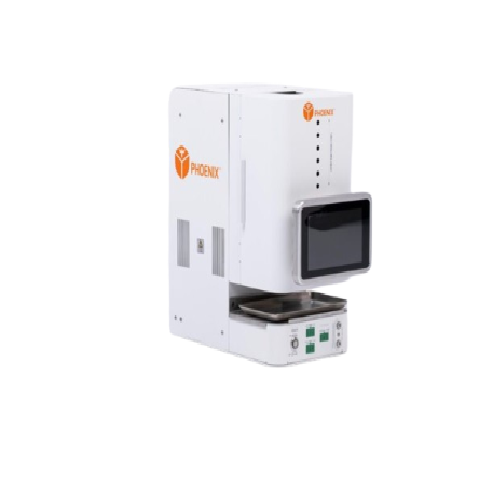

The Phoenix Flow Reactor from ThalesNano is a versatile solution designed for conducting high-temperature and high-pressure chemical reactions, ideal for pharmaceutical manufacturers, fine chemical producers, and research laboratories. This modular flow reactor stands out with its capacity to manage reactions up to 450°C and 200 bar, making it suitable for synthesizing complex compounds like active pharmaceutical ingredients (APIs) and specialty polymers. It integrates seamlessly with other instruments, thanks to its user-friendly software interface and modular design, allowing for easy customization and expansion. With options for PTFE, Hastelloy, and stainless-steel reactor materials, the Phoenix Flow Reactor ensures chemical compatibility and corrosion resistance. It features rapid heating and cooling capabilities, multiple temperature sensors for accurate monitoring, and supports both homogeneous and heterogeneous reactions. Whether you are conducting hydrogenation, oxidation, or carbonylation processes, this reactor accommodates your needs with efficiency and precision, making it an indispensable tool in high-demand research and production environments.
Benefits
- Enhances reaction precision with customizable high-temperature and high-pressure capabilities.
- Increases operational flexibility through modular design, allowing easy integration and system expansion.
- Supports a wide range of chemical reactions, enabling versatile applications in pharmaceutical and chemical production.
- Reduces reaction time with rapid heating and cooling, elevating productivity in research and development.
- Provides robust chemical compatibility and corrosion resistance with material options like Hastelloy and stainless steel.
- Applications
- Fine chemicals,Chemical intermediates,Chemical compounds,Catalysts,Pharmaceuticals
- End products
- Carbonylation agents,Deuterated compounds,Active pharmaceutical ingredients (apis),Hydrogenation catalysts,Agrochemical intermediates,Drug intermediates,Flavor and fragrance compounds,Specialty polymers,Supercritical fluid-processed materials
- Steps before
- Reagent Preparation,Catalyst Loading,Gas Module Setup
- Steps after
- Product Collection,Cooling and Storage,Data Analysis
- Input ingredients
- hydrogen gas,water,gases (carbon monoxide,oxygen,syngas),catCarts,midiCarts,liquid feed,solid materials,catalysts
- Output ingredients
- novel compounds,reaction products,waste
- Market info
- Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.
- Temperature Range
- up to 450°C
- Pressure Capacity
- up to 200 bar
- Heating Elements
- PTFE,Hastelloy,stainless steel
- Reaction Capability
- Homogeneous and Heterogeneous
- Automation
- User-friendly software interface
- Gas Flow Rate
- up to 1000 NmL/min
- HPLC Pump Capacity
- 10 mL/min or 50 mL/min
- Cooling Functionality
- Included
- Temperature Sensors
- Multiple sensors
- Gas Module Pressure
- up to 100 bar
- Pressure Module
- up to 100/200 bar
- Loop Volumes
- 4 mL,8 mL,16 mL
- Packed Bed Reactor Length
- 125 mm and 250 mm
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- Cleaning method
- CIP / Manual
- Energy efficiency
- High
- Changeover time
- Minimal
- Temperature control
- ±1°C
- Pressure control
- ±1 bar
- Rapid heating
- Yes
- Modularity
- Yes
- Reactor type
- Homogeneous / Heterogeneous
- Temperature Range
- Up to 450°C
- Pressure Range
- Up to 200 bar
- Reactor Materials
- PTFE / Hastelloy / Stainless Steel
- Reactor Volume
- 4,8,or 16 mL
- Control Panel Type
- Movable Touch Screen
- Modularity
- Interchangeable Modules,Reactor Elements
- Heating Elements
- Coiled Loop Reactors / Packed Bed Reactors
- Control panel type
- Movable GUI touch screen
- Integration possibilities
- Modular design for easy integration with various instruments
- Heated elements
- Custom-sized heated elements available
- Gas Module configuration
- Multiple Gas Modules and mixers can be used
- Reactor options
- PTFE,Hastelloy,stainless steel coiled loops
