High-speed tubular centrifuges for solid-liquid separation
Efficiently separate microscopic solids from liquids in high-speed operations using these centrifuges, designed for precise handling of delicate fermenter suspensions and achieving high purity levels in processed end-products.
Separates and Stratifies Solid-Liquid Suspensions

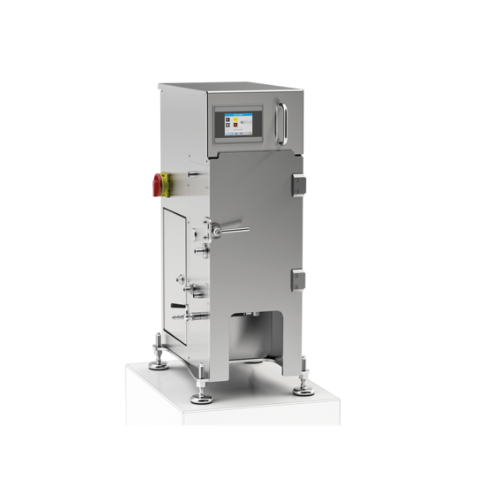

The high-speed tubular centrifuge lineup from CEPA offers robust solutions for precise solid-liquid separation, tailored for industries including biotechnology, pharmaceuticals, and chemicals. This centrifuge operates on continuous feeding and manual solids discharge, achieving efficient separation through stratification of suspension components by density. It is ideal for applications such as microbial culture protein extraction and metal nanoparticle suspensions. The models—LE, LE GP, Z 11, Z 41, GP, GP ex, Z 61, Z 611, Z 101, GE—offer throughput capacities ranging from 15 to 3,000 liters per hour, with rotational speeds up to 60,000 min⁻¹, ensuring optimal processing efficiency. Available in GMP-compliant and explosion-proof versions, this centrifuge also features corrosion-resistant stainless steel options. It integrates well into existing production lines, providing customizable configurations and engineering support to meet specific operational requirements.
Benefits
- Enhances separation efficiency for high-purity end products in continuous operations.
- Minimizes manual intervention with streamlined manual solids discharge.
- Reduces energy consumption with efficient rotor designs at speeds up to 60,000 min⁻¹.
- Supports compliance in regulated industries with GMP and explosion-proof certifications.
- Offers flexibility in challenging environments with corrosion-resistant stainless steel construction.
- Applications
- Chemicals,Biotechnology,Metalworking industry,Fermenter suspensions,Pharmaceuticals
- End products
- Cosmetic active ingredients,Metal nanoparticle suspensions,Chemical reaction intermediates,Polymer dispersions,Fermentation broth derivatives,Pharmaceutical enzyme extracts,Yeast biomass extracts,Microbial culture proteins,Industrial solvent purifications,Vaccine components
- Steps before
- Fermentation,Suspension Preparation,Mixing
- Steps after
- Manual Solid Harvesting,Liquid Discharge,Post-Separation Analysis
- Input ingredients
- fermenter suspensions,suspension,E.coli bacteria,silica nanoparticles,water
- Output ingredients
- solid,liquid,separate smallest particles
- Market info
- Speed
- 14,000–60,000 min⁻¹
- Maximum Throughput
- 150–3000 L/h
- Nominal Capacity
- 0.25–10 L
- RCF (G-value)
- 15,500–80,000 g
- Material
- Stainless Steel
- Explosion-proof Version
- Available (GP ex)
- CIP Version
- Available (GE)
- Capacity Reduction Factor
- Up to 50%
- Working mechanism
- Solid-liquid separation
- Feed method
- Continuous feeding
- Solids discharge
- Manual
- Installation type
- Stationary / Trailer-based
- High-speed operation
- Up to 60,000 rpm
- CIP compatibility
- Available in CIP version
- Explosion-proof version
- GP ex.
- Abrasion resistance
- Yes
- Biological compatibility
- Yes
- Cleanability
- GMP-compliant
- Corrosive resistance (e.g. acids)
- Stainless Steel
- Explosion-proof
- Available (GP ex.)
- Separation Type
- Solid-liquid
- Feed Method
- Continuous
- Discharge method
- Continuous feeding,manual solids discharge
- Material Selection
- Cast Housing / Stainless Steel
- Compliance Options
- GMP-compliant / Explosion-proof (Ex) / CIP
- Portability Option
- Trailer Installation
