High-speed side loading case packer for small dimensions

Optimize your packaging line with a high-speed solution designed for seamless integration, ensuring efficient handling of small dimension cases while maximizing productivity and minimizing downtime through easy accessibility and rapid changeovers.

Packs and Seals Small Cases Efficiently

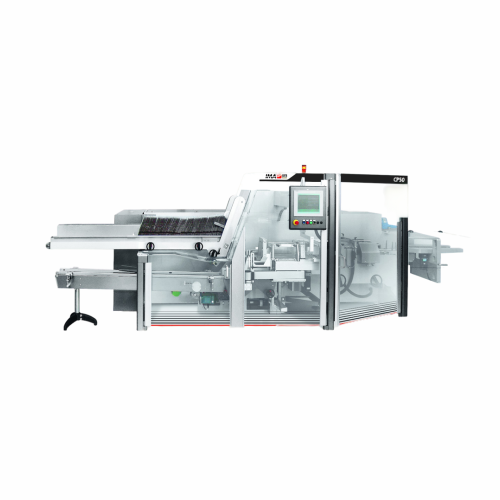

The CP50 from IMA Group is a servo-driven side loading case packer tailored for industries like pharmaceuticals, food, and e-commerce. It specializes in packing and sealing small cases with precision, operating at speeds up to 50 cases per minute. Leveraging servo technology, the CP50 ensures smooth product handling and compact footprint, making it ideal for limited floor space. It’s equipped with a low-positioned horizontal case magazine and full accessibility due to cantilever design, enhancing operator convenience and reducing downtime. The machine is PLC-controlled, supporting seamless integration into existing production lines and offers optional features like tool-less size changeover and label verification, catering to various production needs. Compliance with CE standards and customizable options further underscore its adaptability across diverse applications, from blister packs to e-commerce boxes.

Benefits

  • Enhances production efficiency with high-speed operation, reducing bottlenecks.
  • Minimizes operator fatigue with ergonomic design and easy access controls.
  • Integrates seamlessly with existing production lines, reducing implementation time.
  • Customizable options facilitate adaptation to diverse product specifications.
  • Meets stringent safety standards with full-size safety guards and interlocked panels.

General


Applications
Food,Home care,Nonwoven,E-commerce,Tobacco,Confectionery,Beverage,Coffee,Tissue,Personal,Tea,Dairy,Pharmaceuticals
End products
Biscuits,Sachets,E-commerce packaging boxes,Coffee pods,Tea bags,Cigarette packs,Chocolates,Vials,Milk cartons,Paper towels,Wet wipes,Blister packs,Soft drink cans,Ampoules,Skincare products,Tobacco pouches,Soap bars,Detergent pods
Steps before
Product stacking,Case opening and folding
Steps after
Case closing,Labelling,Label verification,Case rejection,Case overturning
Input ingredients
small dimensioned cases,flat carton material
Output ingredients
packed cases,sealed cases with hot-melt glue
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Machine Type
Side loading case packing
Speed
Up to 50 cases/min
Case Handling
Small dimensioned cases
Footprint
Compact
Drive System
Servo-motors
Automation
Standard PLC unit
Case Sealing
Hot-melt glue
Operator Accessibility
Cantilever design
Safety Features
Full size transparent panels with safety switches
Case Erecting Mechanism
Low positioning horizontal case magazine

Operating Characteristics


Automation level
PLC / Servo-motor driven
Loading Mechanism
Side loading
Case Packing Speed
Up to 50 cases/min
Operator Friendly Design
Cantilever design
Case Closing Method
Hot-melt glue
Changeover Options
Tool-free (optional)
Safety Features
Full size transparent panels,interlocked safety switches
Servomotor Applications
Dedicated strokes and motions

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Control panel type
Standard PLC
Machine footprint
Not specified
Discharge method
Side loading
Feed method
Horizontal case magazine

Custom Options


Control panel type
PLC-controlled
Discharge method
Case rejection at discharge (optional)
Integration Possibilities
Servo-motors driving for specialized applications
Case labelling
Label verification (optional)
Changeover
Tool-less changeover (optional)
