High-speed liquid mixing solution

Optimize your beverage mixing operations with a system that ensures even ingredient distribution and reduces cleaning time, perfect for high-speed production lines requiring consistent quality and efficiency.

Efficiently Mixes and Agitates Beverages and Dairy Products

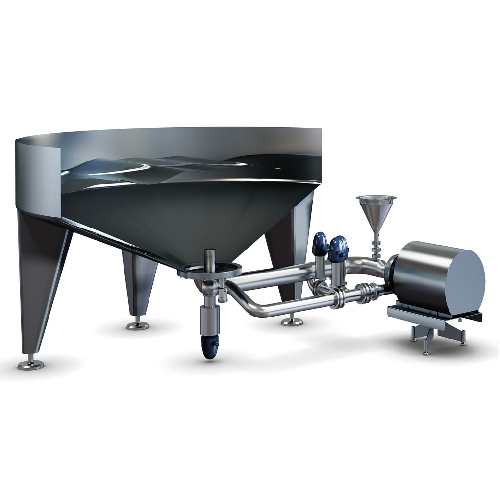

The Tetra Pak Radial Jet Mixer, designed for high-speed liquid and powder integration, offers a unique mixing solution for the food and beverage industry. Utilizing the power of turbulence, this mixer efficiently agitates products ranging from carbonated soft drinks to plant-based milks. With the flexibility to handle batch operations, it boasts integration with existing PLC systems for seamless automation. Consuming significantly less energy thanks to its single or twin nozzle configuration, it can swiftly mix beverages in as little as 2-10 minutes. The mixer is crafted from durable materials to withstand varying product viscosities and is equipped with a CIP system for efficient cleaning. Ideal for beverage manufacturers and dairy producers, the Tetra Pak Radial Jet Mixer promises dependable performance in diverse production environments.

Benefits

  • Accelerates batch mixing, reducing production time by up to 70%.
  • Minimizes operational costs with lower energy consumption through turbulence-based mixing.
  • Ensures product consistency with homogenous integration of diverse ingredients.
  • Streamlines cleaning processes, cutting CIP cycle times for sticky products.
  • Offers flexible batch production, adapting to varied production demands.

General


Applications
Beverages,Plant-based drinks,Still drinks,Nectars,Carbonated soft drinks,Dairy drinks,Functional drinks,Juices
End products
Lemonade,Protein shakes,Orange juice,Almond milk,Iced tea,Soy milk,Fruit nectars,Energy drinks,Cola drinks
Steps before
Ingredient addition,Liquid preparation
Steps after
Cleaning,Filling,Beverage packaging
Input ingredients
carbonated soft drinks,juices,nectars,still drinks,functional drinks,dairy drinks,plant-based drinks,pulps,fibres,floating ingredients,powders,undispersed sediments,sticky drinks,non-sticky soft drinks,ingredients added from the bottom
Output ingredients
homogeneously mixed beverages,cleaned tanks after CIP cycle,fast-mixed standard beverages,efficiently mixed products without vortex
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Mixing capacity
Single or twin nozzles
Mixing time
2–10 minutes
Batch size
Up to 200 cP
Filling level flexibility
6–100%
Cleaning cycle time
Standard cycle for non-sticky drinks
Cycle time
Time for standard cycle for non-sticky soft drinks
Nozzle shear rate
100 times lower than agitator blade tip
Installation component
One flange welded to tank bottom
Pump position
Ground level outside tank
Cost savings
17,300 euros in first two years
Filling level
As low as 6% for small batch sizes
Operating principle
Recirculation pump with nozzle

Operating Characteristics


Mixing method
Radial Jet Mixing
Integration level
Single or Twin Nozzles
Batch time reduction
24 minutes per batch
Homogeneity assurance
100% regardless of fill level
Automation level
PLC-controlled
Cleaning method
Cascade CIP
Batch vs. continuous operation
Batch

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heat Sensitivity
Suitable for non-thermal processes
Filtration Requirements
None specified
Ingredient Type
Floating or sinking ingredients
Batch Size
Varies

Physical Characteristics


Machine footprint
Compact
Nozzle type
Single or twin nozzle
Tank compatibility
Batch mixes up to 200 cP
Tank filling level flexibility
6–100% filling level
Installation method
Flange welded to tank bottom
Recirculation pump location
Ground level outside tank

Custom Options


Hopper option
Manual butterfly valve
