High-speed dosing and wrapping for butter and margarine
Achieve precision in butter and margarine packaging with a high-speed solution designed for rapid changeovers and exceptional control, ensuring accuracy and efficiency in every packet.
Doses and Wraps Butter and Margarine Efficiently

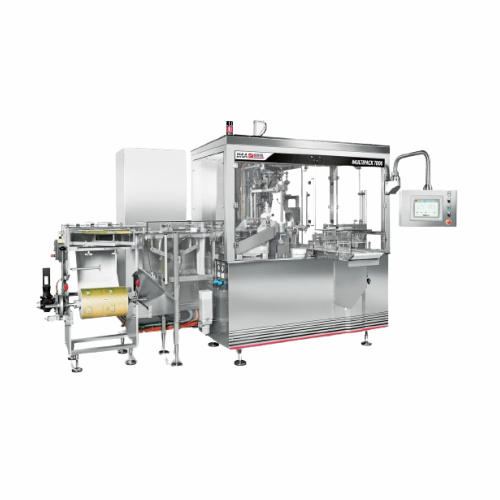

The Multipack 7000 from IMA Group is a high-speed dosing and wrapping machine tailored for the food and dairy industries, expertly handling products like butter, margarine, edible fats, and fresh cheese. This machine stands out with its ability to dose and wrap up to 200 packets per minute, thanks to its servo-driven main drive and individual servo-drives for the wrapping material feed.
Designed to integrate seamlessly into continuous, automated production lines, the Multipack 7000 ensures precision with its CIP cleanable dosing unit and a filling accuracy between ±0.2g to ±0.3g, depending on the size. Its flexibility allows for rapid size adjustments and complete changeovers in under 45 minutes, aided by optional features like electrical packet height adjustment and remote access control.
Constructed from corrosion-resistant materials, the Multipack 7000 accommodates a variety of wrapping materials including aluminum laminated foil and PE foil. The PLC by Allen Bradley with a touch screen panel further enhances control and operation. Options for CIP valve systems, central lubrication, and date coding provide additional customization to meet specific production requirements.
Benefits
- Enhances production efficiency with a capacity of up to 200 packets per minute.
- Minimizes changeover time to under 45 minutes, boosting operational flexibility.
- Ensures packaging precision with a filling accuracy of up to ±0.3g.
- Integrates seamlessly into automated lines, reducing manual intervention.
- Facilitates easy cleaning and maintenance with CIP cleanable components.
- Applications
- Butter,Fresh cheese,Edible fats,Margarine
- End products
- Cream cheese packets,Butter blocks,Low-fat spreads,Margarine bricks
- Steps before
- Mixing,Emulsification,Direct feed from the process plant
- Steps after
- Case packing,End-of-line packaging
- Input ingredients
- butter,margarine,edible fats,fresh cheese
- Output ingredients
- packets,wrapped products,bricks,cubes
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Speed
- Up to 200 packets/min.
- Dosing range
- 50 g – 250 g
- Filling accuracy
- s = 0.2g for Qn ≤ 100 g
- S = 0.3g for Qn ≤ 250 g
- Automation
- PLC by Allen Bradley with touch screen operating panel
- Wrapping material
- Aluminum laminated foil,plastic coated papers,PE foil,other materials on request
- Folding and shapes
- Bottom fold for bricks/cubes
- Nominal output
- Up to 200 packets/min.
- Product feed
- Direct feed from the process plant or product hopper
- Changeover time
- No more than 45 minutes
- End-of-line packaging
- By downstream fully automatic or semi-automatic case packer
- Servo-driven systems
- Servo-driven main drive,individual servo-drives for wrapping material feed,servo driven dosing unit and lifting cells
- Machine control
- PLC by Allen Bradley with touch screen operating panel
- Working mechanism
- High-speed dosing and wrapping
- Integrated steps
- Dosing,wrapping,packaging
- CIP principles
- CIP cleanable dosing system
- Batch vs. continuous operation
- Continuous
- Changeover time
- Up to 45 minutes
- Automation level
- PLC-controlled
- Corrosive resistance
- Corrosion-resistant materials
- Cleanability
- CIP cleanable dosing unit
- Footprint
- Compact design
- Dosing system
- CIP cleanable dosing unit
- Height adjustment
- Electrical packet height adjustment system (optional)
- Machine design
- Modern,attractive
- Control panel type
- Allen Bradley with touch screen
- Integration possibilities
- Remote access control
- Discharge method
- Discharge conveyor
- Height adjustment system
- Optional electrical packet height adjustment
- Dosing system
- CIP cleanable dosing system
