High speed continuous motion liquid filling and capping system

Achieve high-speed, precision filling and capping for liquid formulations, ensuring reliability and minimal maintenance for continuous operation across diverse industries.

Fills and Caps Liquid Products Efficiently

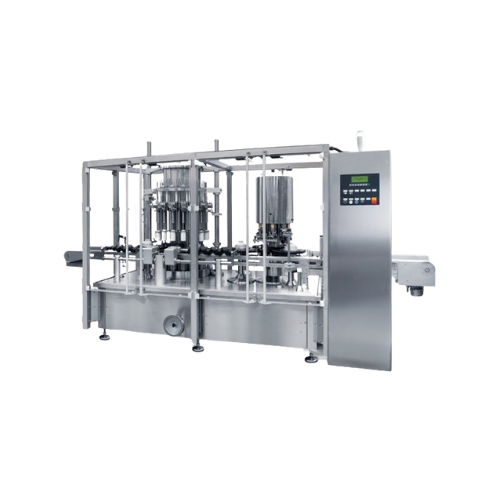

The L112/L212 from CAM is a continuous motion liquid filling and capping machine that addresses the needs of industries such as pharmaceuticals, food and beverage, cosmetics, and chemicals. This machine stands out due to its high-speed capability of up to 400 bottles per minute, available in three versions with 12, 16, and 24 dosing units, providing flexibility to adapt to various production demands. It seamlessly handles different cap types, including pressure, screw-on, and pilfer proof, thanks to its one or two capping stations equipped with 8 heads each.

The L112/L212’s continuous operation is supported by a robust rotary mechanism designed for minimal mechanical wear, ensuring longevity with reduced maintenance. The integration of a CIP (Clean-In-Place) system allows for efficient washing of dosing heads while in motion, minimizing downtime and risk of contamination. Suitable for applications in liquid formulations, its versatility extends to end-products like syrups, liquid vitamins, and detergents. Constructed with durable materials, this machine is prepared to meet stringent industry standards while ensuring optimal performance, making it an ideal choice for manufacturers seeking to enhance their packaging processes with precision and speed.

Benefits

  • Increases production speed with the capability to process up to 400 bottles per minute.
  • Enhances operational efficiency with minimal mechanical wear and reduced maintenance needs.
  • Supports multi-type cap handling, providing flexibility in packaging various liquid products.
  • Streamlines cleaning processes and minimizes contamination risks with an integrated CIP system.
  • Offers versatility across multiple industries including pharmaceuticals, cosmetics, and food & beverage.

General


Applications
Sauces,Liquid formulations,Pharmaceuticals,Detergents,Nutraceuticals,Essential oils
End products
Liquid vitamins,Cough medicines,Tomato sauce,Syrups,Lavender essential oil,Dishwashing liquid
Steps before
Bottle Preparation,Cap Selection,Feeding Bottles
Steps after
Capping Verification,Labeling,Packing,Quality Control
Input ingredients
bottles,liquids,caps
Output ingredients
filled bottles,capped bottles
Market info
CAM Packaging is known for its expertise in designing and manufacturing advanced packaging machinery tailored to client specifications, with a strong reputation for reliability and innovation in the engineered-to-order equipment market.

Technical Specifications


Speed
Up to 400 pieces per minute
Dosing Units
12,16,and 24 units
Cap Types
Pressure,screw-on,pilfer proof,pumps
Capping Stations
One or two stations
Heads per Capping Station
8 heads
Motion Type
Continuous motion rotary
CIP System
Included for simple washing of dosing heads

Operating Characteristics


Working mechanism
Continuous motion rotary
Dosing units options
12,16,and 24 units
Capping options
Pressure,screw-on,pilfer proof,pumps
CIP capability
Included
Automation level
Automatic
Changeover time
Minimal due to design

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Discharge method
Rotary filling and capping
Number of dosing units
12,16,or 24
Capping stations
Up to 2 stations
Cap type
Pressure,screw-on,pilfer proof,pumps
CIP system
Included

Custom Options


Control panel type
Touchscreen HMI
Capping stations
One or Two
Dosing units configuration
12,16,or 24 units
Cap compatibility
Pressure,Screw-on,Pilfer Proof,Pumps
Cleaning integration
CIP system
