High shear lab granulation system for powder processing

Achieve precise granulation and consistent mixing of powders with this advanced top-drive system, designed to streamline your production line with easy maintenance and rapid changeovers.

Facilitates Wet Granulation and Mixing

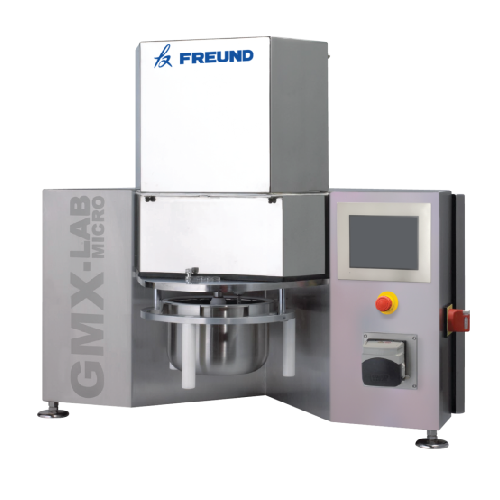

The GMX-LAB Micro GRANUMEIST® from Freund-Vector is a high shear granulator designed to deliver efficient wet granulation and homogenous mixing. Its top-drive design simplifies cleaning and maintenance, while ensuring faster processing times without compromising user safety. With a range of applications, including pharmaceuticals and nutraceuticals, it can produce immediate and extended-release tablets, as well as multivitamin and enzyme supplements.

The system features interchangeable 1L and 4L bowls, offering flexibility for varying batch sizes, and integrates user-defined settings for mixer and chopper blade speeds. Equipped with an optional jacketed bowl for product temperature control and an integrated peristaltic pump for precise solution addition, it ensures consistent granule formation. The Smart-Safe™ containment option enhances operational safety, while the proportional mixer blade tip-speeds and customizable bowl and blade geometries optimize processing outcomes.

Its color touchscreen control system simplifies operation, and the process control is designed for validation, supporting multiple end-point detection parameters. The unit supports scalability with its modular design and comes equipped with a USB data collection port for process monitoring. This portable and self-contained system is ideal for bench-top and pilot-scale operations in R&D and laboratory settings within pharmaceutical, biotech, and chemical industries.

Benefits

  • Enhances production efficiency by offering quick changeover and easy cleaning.
  • Provides precision in granule formation with user-defined settings and integrated pump.
  • Ensures safer operations with Smart-Safe™ containment features.
  • Allows flexible production by accommodating multiple batch sizes with interchangeable bowls.
  • Facilitates comprehensive data tracking and validation through a USB port and customizable process control.

General


Applications
Supplements,Pharmaceutical tablets,Fine chemicals,Nutraceuticals,Enzymes,Pharmaceuticals
End products
Vitamin e granules,Lactase enzyme granules,Antioxidant supplements,Chymotrypsin enzyme blends,Herbal extract capsules,Extended-release tablets,Multivitamin tablets,Protein supplements,Immediate-release tablets,Amylase enzyme powders,Excipients for tablet formulation
Steps before
Powder Preparation,Weighing,Mixing of Ingredients,Pre-Granulation Blending
Steps after
Drying,Sieving,Blending,Tablet Compression,Coating
Input ingredients
powders,wet granulation solutions
Output ingredients
medium to high density granules
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Bowl Capacity
1L and 4L interchangeable bowls
Working Capacity
0.3 - 0.7 L / 1.3 - 2.7 L
Mixer Speed
50 - 1550 RPM / 30 - 950 RPM
Automation
User-defined settings
Granulation Flexibility
Portable,self-contained system
Control System
Color touchscreen control
Process Control
Validatable process control
Data Collection
USB Data Collection Port
Process Timing
Multiple End-Point Detection Parameters
Power Requirement
Smart-Safe™ Containment Optional
Temperature Control
Optional Jacketed Bowl
Solution Addition
Integrated Peristaltic Pump

Operating Characteristics


Working Mechanism
High Shear Wet Granulation
Integrated Steps
Mixing and Granulation
CIP/SIP
Quick Change Design,No Tools Required
Processing Flexibility
1L and 4L Interchangeable Bowls
Automation Level
User-Defined Settings,Color Touchscreen Control System
Batch vs. Continuous Operation
Batch
Cleaning Method
Quick Change,No Tools Required
Smart-Safe™ Containment
Optional
Proportional Mixer Blade Tip-Speeds
Configurable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Interchangeable Bowl Sizes
1L and 4L
Integrated Peristaltic Pump
Precision Addition

Physical Characteristics


Bowl Capacity
1L and 4L Interchangeable
Control panel type
Color Touchscreen Control System
Discharge method
Self-Contained Design
Machine footprint
Portable System

Custom Options


Control panel type
Color Touchscreen Control System
Integration possibilities
USB Data Collection Port
Interchangeable Components
1L and 4L Interchangeable Bowls
Changeover mechanism
Quick Change Design – No Tools Required for Cleaning or Changeover
Temperature Control
Optional Jacketed Bowl for Product Temperature Control
