High-pressure hydrogenation reactor for chemical labs
Achieve precise high-temperature hydrogenation with integrated on-demand hydrogen generation, eliminating cylinder dependency and enhancing safety for complex chemical synthesizing processes.
Generates Hydrogen and Facilitates High-Pressure Chemical Reactions

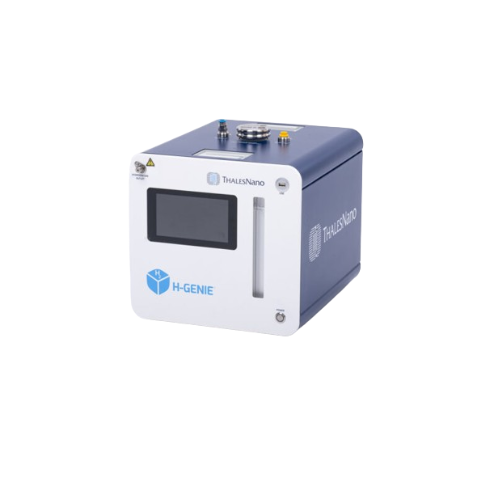

The Phoenix-H-Genie Hydrogenation Platform from ThalesNano offers a cutting-edge solution for chemical and pharmaceutical sectors, enabling seamless hydrogenation processes without the need for external hydrogen supplies. By generating hydrogen through the electrolysis of water, this system ensures on-demand, safe production up to 1 NL/min at pressures of up to 100 bar. Designed with versatility in mind, it accommodates both homogeneous and heterogeneous catalysts, operating at temperatures reaching 450°C.
Its modular nature means you can tailor configurations for specific lab setups, with components such as HPLC pumps and mixer modules enhancing its capabilities. This platform is particularly valuable in producing synthetic fuels, pharmaceuticals, and specialty chemicals, supporting continuous and scalable operations. The integrated mass flow controller provides precise monitoring, optimizing both reaction conditions and efficiency. The use of self-fillable Catcarts enables catalyst testing and synthesis in varied quantities, making it ideal for fine chemical and pharmaceutical research. Configured from durable materials and offering easy maintenance, the Phoenix-H-Genie ensures long-lasting performance in demanding chemical environments.
Benefits
- Enhances safety by eliminating the need for hydrogen cylinders, reducing storage and handling risks.
- Improves reaction efficiency with precise control over hydrogen flow and pressure, optimizing experimental outcomes.
- Increases operational flexibility with modular configuration, catering to diverse laboratory and industrial needs.
- Saves time and resources with rapid temperature and pressure adjustments for quick experimental optimization.
- Supports sustainable practices by using water electrolysis to generate hydrogen, promoting a lower environmental footprint.
- Applications
- Homogeneous catalysts,Fine chemicals,Hydrogenation systems,Catalyst screening,Industrial chemistry,Petrochemical applications,Heterogeneous catalysts,Chemical synthesis,Laboratory research and development,Pharmaceuticals
- End products
- Surfactants,Ibuprofen,Dyes,Ammonia,Styrene,Fragrances,Aniline,Intermediates for pharmaceuticals,Synthetic fuels,Margarine,Biodiesel,Vaccines,Agrochemicals,Polyethylene,Paracetamol,Methanol,Ethanol,Polypropylene,Specialty polymers
- Steps before
- Catalyst preparation,Solvent selection,Sample loading,Setting up reactor configurations,Gas selection,Temperature calibration,Pressure adjustment
- Steps after
- Data analysis,Reaction yield calculation,Product purification,Product collection,Waste disposal,Post-reaction cleaning,Process optimization review
- Input ingredients
- water,hydrogen,carbon monoxide,oxygen,syngas,homogeneous catalysts,heterogeneous catalysts,various gases
- Output ingredients
- hydrogen gas,reaction products,mixed gases,chemical compounds
- Market info
- Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.
- Hydrogen generation rate
- Up to 1 NL/min
- Operating temperature
- Up to 450°C
- Operating pressure
- Up to 100 bar
- Mass flow control
- Yes
- Customizable setup
- Modular
- Reactor type
- Homogeneous and heterogeneous
- Gas flow rate (Gas Module Plus)
- Up to 1 NL/min
- Pressure Module max pressure
- 100/200 bar
- HPLC pump capacity
- 10 mL/min or 50 mL/min
- Available reactor loops
- 4,8,or 16 mL
- CatCart dimensions
- 30 mm,70 mm length
- MidiCart lengths
- 125 mm and 250 mm
- Loop material
- PTFE,stainless steel,Hastelloy
- THS ReAction software
- Yes
- Hydrogen generation method
- Electrolysis of water
- Temperature range
- Up to 450°C
- Pressure range
- Up to 100 bar
- Hydrogen flow rate
- Up to 1 NL/min
- Gas introduction capability
- Integrates various gases (e.g.,CO,O2)
- Automation level
- Integrated THS System Controller,Software
- Modularity
- Customizable system setup
- Reactor type
- Homogeneous and Heterogeneous
- Integrated monitoring
- In-built mass flow controller
- Reaction optimization
- Rapid temperature,pressure,and flow rate adjustments
- Batch vs. continuous operation
- Batch / Inline Continuous
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Reaction type
- Hydrogenation/Deuteration
- Modular system configuration
- Customizable modules
- Control panel type
- Intuitive interface with user-friendliness
- Integration possibilities
- Seamless integration with ThalesNano reactor systems (e.g.,H-Cube Pro,Phoenix Flow systems)
- Scalability
- Self-fillable cartridges for various synthesis scales (milligrams to kilos)
- Temperature and pressure customization
- Adjustable up to 450°C and 100 bar
- Gas introduction capability
- Supports multiple gases through Gas Module and Mixers
- Heated element customization
- Available reactor setups for homogeneous and heterogeneous applications
