High pressure gasketed plate heat exchangers for carbonated beverages

When ensuring high-pressure handling in your pasteurization or cooling processes, these heat exchangers provide superior fouling resistance and thermal efficiency, ideal for maintaining product integrity in carbonated beverages.

Facilitates High-Pressure Heat Transfer and Pasteurization

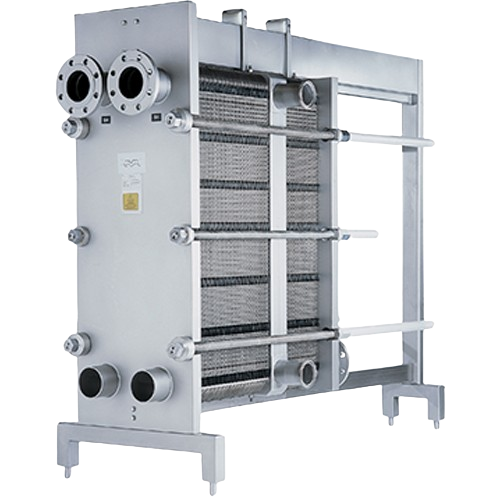

The M Line Gasketed Plate Heat Exchangers from Alfa Laval are engineered to handle challenging high-pressure tasks, ensuring optimal heat transfer in hygienic applications across the dairy, food, beverage, and pharmaceutical industries. Their unique design includes a combination of customizable plates and FDA-compliant gaskets, making them particularly suitable for processes requiring up to 10 bar design pressure, such as pasteurization and cooling. These exchangers allow you to adapt to changing process conditions by adding or removing plates, thus optimizing for different thermal requirements. The chevron plate pattern and corrugated surfaces enhance thermal efficiency and turbulence, reducing fouling risks and maintaining consistent flow distribution. Integrated with a Cleaning-in-Place (CIP) system, they minimize downtime and upkeep effort. With options in materials and configurations, and compliance with food safety standards, Alfa Laval’s exchangers can be tailored to specific needs, supported by expert engineering advice to guarantee optimal line integration and performance.

Benefits

  • Enhances production flexibility by allowing easy adaptation to process changes with adjustable plate configurations.
  • Ensures product safety and quality through FDA-compliant gaskets and efficient Cleaning-in-Place (CIP) capabilities.
  • Optimizes energy usage, minimizing operational costs due to efficient thermal design and reduced fouling.
  • Supports high-pressure operations, increasing process reliability and expanding application versatility.
  • Facilitates seamless integration into existing production lines, reducing space and installation requirements.

General


Applications
Food,Beverages,Carbonated beverages,Hygienic processes,Pasteurization,Utility applications,Dairy,Pharmaceuticals
End products
Carbonated sodas,Pharmaceutical syrups,Nutritional supplements,Wine,Milk,Cheese,Sparkling water,Pasteurized milk,Beer,Yogurt,Soft drinks,Fruit juices
Steps before
Purification,Mixing
Steps after
Cooling,Packing
Input ingredients
carbonated beverages,dairy products,food ingredients,beverages,pharmaceutical ingredients
Output ingredients
pasteurized products,heated food,cooled beverages,treated dairy products
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Design Pressure
>10 bar/145 psi
Heat Transfer Area
Adjustable via adding/removing plates
Plate Types
Chevron,Gemini Double-Wall
Plate Corrugation
Corrugated for turbulence and efficiency
Fouling Resistance
Enhanced by diverse plate patterns
Thermal Efficiency
High due to optimal plate design
Cleaning Method
CIP (Cleaning-in-Place)

Operating Characteristics


Working Mechanism
Counter-current flow
Cleaning Method
Cleaning-in-Place (CIP)
Batch vs. Continuous Operation
Batch or Inline
Automation Level
Manual / PLC
Service Friendliness
FDA compliant gaskets

Material Compatibility


Cleanability
Designed for Cleaning-in-Place (CIP)
Biological compatibility
Food Contact Materials (FCM) compliant

Product type Characteristics


Process adaptability
Multi-section
Hygienic suitability
Dairy,food,beverage,pharma

Physical Characteristics


Machine Footprint
Compact
Plate Type
Chevron / Gemini double-wall
Discharge Method
Through corner ports

Custom Options


Heat transfer area
Modifiable by adding or removing plates
Plate types
Various types including chevron and Gemini
Plate material
Various materials based on process parameters
Multi-section configuration
Available for space and cost optimization
Connection type
Quick cleaning and inspection
Design pressure
High design pressure (>10 bar/145 psi)
