High capacity egg grader for efficient egg processing
Maximize egg quality and safety with this high-capacity grader, designed to handle up to 450 cases per hour. Enhance your processing line with precise sorting, washing, and detection to ensure only the highest quality eggs reach your end products.
Grades, Sorts, and Packs Eggs Efficiently

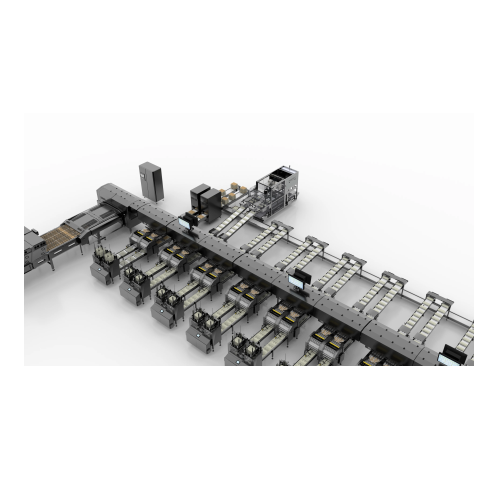

The OptiGrader 450 from SANOVO TECHNOLOGY GROUP streamlines egg processing by providing precise grading, weighing, and packing solutions tailored for poultry farms, egg processing facilities, and vaccine production plants. Leveraging advanced camera vision and UV sanitization systems, this equipment ensures eggs meet stringent food safety standards. With its capacity to handle 162,000 eggs per hour, the OptiGrader 450 maintains high throughput while integrating seamlessly within existing production lines. Its modular design supports customization and fits compactly with machinery for flexible investment strategies. Notable features include automatic dirt rejection, adjustable crack detection sensitivity, and intuitive touchscreen controls, all housed in a CIP-compatible sanitary design for easy maintenance and reduced downtime.
Benefits
- Enhances operational efficiency by processing up to 162,000 eggs per hour.
- Ensures food safety with UV sanitization, reducing contamination risks.
- Minimizes labor with fully automated grading and packing operations.
- Offers flexible integration with existing equipment, optimizing investment.
- Simplifies cleaning and maintenance with a CIP-compatible design.
- Applications
- Egg processing,Food safety,Egg-cultured vaccine production,Fertilized egg handling
- End products
- Egg cartons,Pasteurized liquid eggs,Clean and sanitized eggs,Graded egg products,Fertilized eggs for vaccine production
- Steps before
- Egg collection,Egg washing,Egg inspection
- Steps after
- Egg packing,Egg labeling,Distribution
- Input ingredients
- eggs,mixed egg colors,off-grade eggs
- Output ingredients
- graded eggs,specific egg colors,packed eggs,underweight eggs,overweight eggs,off-grade eggs,crack-detected eggs
- Market info
- Sanovo is renowned for manufacturing ETO industrial equipment, specializing in egg handling, processing, and packaging machinery. They hold a strong market reputation for innovative solutions and reliable, high-quality systems tailored to the food and egg industry.
- Capacity
- 162,000 eggs/hour
- Case Capacity
- 450 cases/hour
- Operation Type
- In-line
- Cleaning Method
- Washdown
- Weighing Accuracy
- ±0.1 g
- Automation
- Fully automated
- Dirt Detection Sensitivity
- 1.0 mm²
- Scale Type
- Digital,dynamic,stable
- Egg Orientation
- 12 or 18 rows
- Color Detection
- Full color camera system
- Energy Efficiency
- High performance
- UV Lighting System
- Ultraviolet technology
- Reject System
- Leak and dirt detector
- Screen Type
- Touch screen (ICON-based)
- Traceability
- Software available
- Carton Closer
- Low profile,variable speed
- Batch Size
- 700 cases/hour
- Transfer Method
- Soft brush receiver
- Contamination Reduction
- UV lighting,Legger detection
- Cleaning System
- CIP optional
- Working Mechanism
- Inline operation
- Batch vs. Continuous Operation
- Inline Continuous
- Automation Level
- Fully Automated
- CIP Principles
- Optional CIP available
- Cleaning Method
- Washdown / CIP
- Density/particle size
- 0.5–2.5 g/cm³
- Compact footprint
- Configurable to fit into the same footprint as older 300 to 400 cases/hour machines
- Transportation System
- Roller entry conveyor
- Packing Flexibility
- Various choices of packers can be installed
- Egg Carrier System
- Four-row chain conveyor
- Egg Transfer
- Soft brushes for gentle transfer
- Assembly Configuration
- Modular principle
- Integration with used machinery
- Yes
- Configurable footprint
- Yes,compatible with older 300-400 cases/hour machines
- Modular design principle
- Yes
