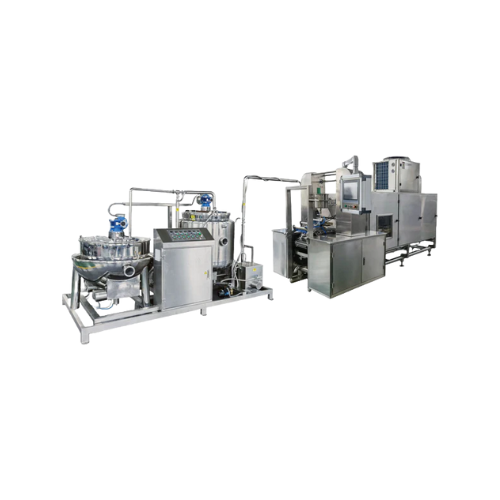

High-capacity automatic gummy production line
Achieve high-speed gummy production with precision depositing and cooling, ideal for creating dual-colored and infused gummies while maintaining consistent quality and efficiency.

Produces and Deposits High-Volume Gummies
The G-80 Automatic Gummy Production System, offered by Candy Pros, stands out as a high-capacity solution for producing a diverse range of gummies, including CBD, THC, vitamin, and dual-colored gummies. The system employs a streamlined depositing process, integrating precision in flavoring and coloring to deliver consistent product quality. Capable of generating up to 30,000 gummies per hour with a maximum production capacity of 80kgs/h, the G-80 is tailored for high-demand environments.
Key benefits include its PLC control system and intuitive LED touch panel, ensuring seamless operation and easy integration with existing production lines. The equipment’s energy efficiency is supported by a 70kw power supply, while the environmentally controlled cooling system optimizes product stability, requiring room temperatures between 20-25°C and maintaining humidity at 55%. With its robust design, the G-80 accommodates continuous, high-speed operation, making it a preferred choice for confectionery manufacturers and nutraceutical producers. Additionally, the system offers customization options to meet specific production needs, supported by engineering assistance.
Benefits
- Enhances production speed, producing up to 30,000 gummies per hour for high-demand operations.
- Supports diverse product lines with dual-color capabilities, meeting market needs for CBD, THC, and vitamin gummies.
- Simplifies user operation and reduces training time with a user-friendly PLC control system and LED touch panel.
- Offers efficient energy use through optimized cooling systems, promoting sustainable production practices.
- Customizable configurations to match specific production requirements, supported by expert engineering assistance.
- Applications
- Gummy sweets,Cbd gummies,Thc gummies,Vitamin gummies
- End products
- Thc gummy worms,Multi-vitamin gummy bears,Cbd-infused gummy squares,Dual-colored vitamin gummies
- Steps before
- Ingredient Preparation,Mixing,Heating
- Steps after
- Cooling,Demoulding,Packaging
- Input ingredients
- CBD,THC,Vitamin,dual colors
- Output ingredients
- gummy candies,30,000 gummies/hour
- Market info
- Speed
- 30,000 gummies/hour
- Production capacity
- 80kgs/h
- Power supply
- 70kw/220V
- Compressed air pressure
- 0.3 0m3 /min 0.4-0.6 Mpa
- Room temperature (cooling system)
- 20-25°C
- Humidity needed for cooling system
- 55%
- Length of the whole line
- 16 m
- Refrigerator
- MT120,15,000 kcal/h
- Automation
- PLC control system,LED touch panel
- Speed
- 30,000 gummies/hour
- Production capacity
- 80kgs/h
- Automation level
- PLC
- User interface
- LED touch panel
- Biological compatibility
- Compatible with CBD,THC,Vitamin gummies
- Cleanability
- Easy to clean due to smooth surfaces
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Product speed
- 30,000 gummies/hour
- Production capacity
- 80kgs/h
- Machine footprint
- 16 m length
- Control panel type
- LED touch panel
- Refrigerator capacity
- MT120,15,000 kcal/h
- Control panel type
- LED touch panel
