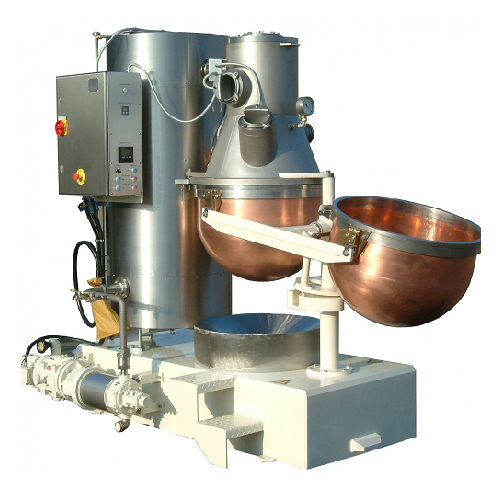

High boiled sugar continuous batch cooker

Streamline your confectionery production with efficient high boiled sugar cooking, ensuring consistent quality and high-speed output for sweets and snacks.

Processes and Cooks High Boiled Sugar Continuously

The A.M.P-Rose 1300 Vacuum Continuous Batch Cooker is a sophisticated, automatic solution designed to enhance confectionery production through its innovative vacuum cooking methodology. This equipment is engineered to streamline the processing of high boiled sugar, efficiently transforming raw materials or pre-dissolved solutions into refined, high-quality candies and sugar-based snacks.

Key features include an insulated steel steam pressure vessel, a variable-speed product feed pump, and a product heating coil, which enables precise control over cooking conditions. The machine’s distinct vacuum extraction chamber efficiently removes boiling vapors, ensuring a consistent product texture and quality. With a capacity of up to 1300 kg/hr (2860 lbs/hr), this batch cooker caters to high-speed production demands common in food, confectionery, and sugar manufacturing industries.

Operators benefit from its semi-automated functionality, which minimizes manual intervention; the only exception being the manual tipping of filled pans. The system is engineering-focused, offering seamless integration into existing candy production lines, suitable for both small-scale candy producers and large confectionery manufacturers.

Constructed for durability, the A.M.P-Rose 1300 prioritizes energy efficiency and operational reliability by utilizing separate baseplates for pumps, motors, and vacuum condensers. Its design supports various configurations to meet specific processing needs, accommodating liquid or slurry product types while maintaining optimal performance.

Benefits

  • Increases production efficiency with a capacity of up to 1300 kg/hr.
  • Enhances product consistency through precise vacuum extraction and temperature control.
  • Saves energy through optimized motor systems and effective vapor removal.
  • Integrates seamlessly into existing confectionery lines for streamlined operations.
  • Minimizes manual labor with automated cooking and feeding processes.

General


Applications
High boiled sugar,Sweets,Snacks
End products
Sugar lollipops,High boiled candies,Toffee,Sugar-based snacks,Caramel chews
Steps before
Raw material selection,Cold slurry preparation,Pre-cooking,Pre-dissolving
Steps after
Vacuum treatment,Pan tipping,Cooling,Packing
Input ingredients
cold slurry of raw materials,precooked sugar solution,pre-dissolved sugar solution
Output ingredients
high boiled sugar
Market info
AMP Rose is renowned for manufacturing and supplying high-quality machinery for the confectionery, chocolate, and snack industries, offering innovative solutions and engineered-to-order equipment tailored to meet specific customer needs.

Technical Specifications


Capacity
1300 kg/hr (2860 lbs/hr)
Automation
Automatic
Batch vs. continuous
Continuous
Product feed type
Cold slurry or pre-cooked/pre-dissolved sugar solution
Heating method
Heating coil
Vapour management
Vapour extraction chamber
Vacuum system
Yes,with vacuum pumps and condensers
Material
Stainless steel
Feed system
Variable speed product feed pump

Operating Characteristics


Working mechanism
Automatic and continuous batch cooker
Batch vs continuous flow
Continuous
Integrated steps
Product feed,heating,vapour extraction,vacuum treatment
Automation level
Automatic
Cleaning method
Manual
Changeover time
Automatic pan position change

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Insulated steel steam pressure vessel mounted on a common base plate
Component layout
Separate baseplates for syrup and vacuum pumps,motors,and vacuum condensers
Feed method
Variable speed product feed pump
Discharge method
Adjustable valve to receiving pan
Material
Stainless steel product pump
Configuration
Automatic,continuous

Custom Options


Footprint
Common base plate
Pump Speed
Variable speed
Receiving Pan Operation
Automatic position change
