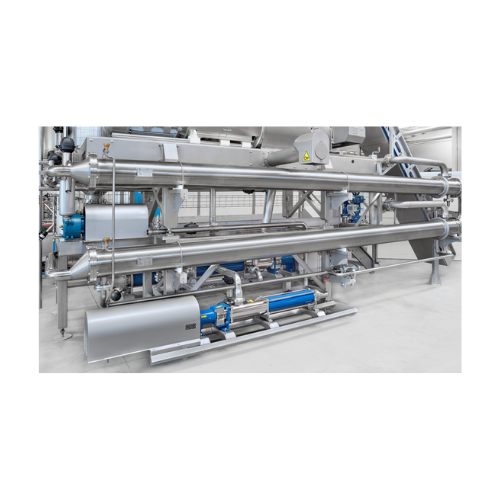

Heater for enzymatic inactivation of fruit and vegetable pulp

Optimize your puree and concentrate production with efficient enzymatic inactivation, ensuring your fruit and vegetable pulps maintain quality and stability in continuous operations.

Inactivates Enzymes and Heats Purees

The Heater-Enzymatic Deactivator H54 series from Boema S.p.A. is engineered to enhance your puree and concentrate production, efficiently inactivating enzymes while maintaining product integrity. This equipment features various models, including the H54_FO with horizontal shell and tube design and product recycle, the H54_BR tailored for Cold Break tomato pulp, and the H54_HB optimized for Hot Break processes. With configurations supporting vacuum heating and vertical arrangements, it suits diverse applications from apple and banana purees to marinara sauce. Designed for continuous operation, each model integrates seamlessly into existing lines, offering precise control over heating and enzymatic deactivation.

Benefits

  • Ensures consistent product quality by effectively inactivating enzymes.
  • Streamlines integration with existing lines, minimizing restructuring costs.
  • Promotes energy efficiency with optimized recycle and heating processes.
  • Adaptable for diverse puree and concentrate applications, enhancing production flexibility.
  • Continuous operation minimizes downtime, increasing overall throughput.

General


Applications
Sauces,Fruit purees,Tomato pulp,Concentrates,Vegetable purees
End products
Ketchup,Cold break tomato pulp,Apple puree,Banana puree,Tomato concentrate,Carrot puree,Mixed fruit concentrate,Vegetable soup base,Marinara sauce,Tomato sauce,Hot break tomato pulp
Steps before
Pulp Extraction,Fruit and Vegetable Sorting,Fruit and Vegetable Washing,Pulp Milling
Steps after
Cooling,Storage,Packaging,Concentration
Input ingredients
fruit pulp,vegetable pulp,tomato pulp,Cold Break tomato pulp,Hot break tomato pulp
Output ingredients
enzymatically deactivated fruit pulp,enzymatically deactivated vegetable pulp,enzymatically deactivated tomato pulp
Market info
Boema is known for manufacturing customized industrial equipment, particularly for the food processing industry, with expertise in handling engineered-to-order projects. The company is reputed for delivering innovative, high-quality solutions tailored to client-specific requirements.

Technical Specifications


Model Type
H54_FO
Model Type
H54_BR
Model Type
H54_HB
Model Type
H54_RD
Configuration
Horizontal Shell and Tubes
Configuration
Vertical Shell and Tubes
Product Recycle
Yes
Extraction Electropump
Yes
Vacuum Heating
Yes (H54_RD)
Condenser
Yes (H54_RD)
Application Type
Fruit and Vegetables Pulp
Application Type
Tomato Pulp (Cold Break,Hot Break)

Operating Characteristics


Working mechanism
Shell and tube heat exchange
Integrated steps
Enzymatic inactivation
Product recycle
Yes
Extraction electropump
Included
Vacuum heating
Available (H54_RD model)
Condensing
Available (H54_RD model)
Flow type
Inline
Operation type
Manual / Automatic
Heating method
Vacuum / Shell and tube
CIP/SIP capability
CIP
Batch vs. continuous operation
Inline Continuous
Changeover time
N/A
Cleaning method
CIP

Material Compatibility


Biological compatibility
Compatible with fruit and vegetable pulp
Cleanability
Designed for easy cleaning with CIP/SIP methods
Corrosive resistance (e.g. acids)
Designed for resistance to organic acids in fruits and vegetables
Density/particle size
Suitable for handling variable pulp densities

Physical Characteristics


Heater Type
Horizontal/Vertical shell and tube
Heating Method
Product recycle with extraction electropump
Model Variants
H54_FO,H54_BR,H54_HB,H54_RD
Vacuum Heating
Available in H54_RD model
Condenser Inclusion
Available in H54_RD model
Product Compatibility
Fruit and Vegetable Pulp
Flow Passage
Simple/Brovatrice
Break Type for Tomato Pulp
Hot Break,Cold Break

Custom Options


Heater Type
Horizontal Shell,Vertical Shell,"Brovatrice"
Product Recycle
Incorporated
Extraction Method
Electropump
Heating Method
Vacuum Heating and Condenser
Application Type
Cold Break Tomato Pulp,Hot Break Tomato Pulp,Fruit and Vegetables Pulp
