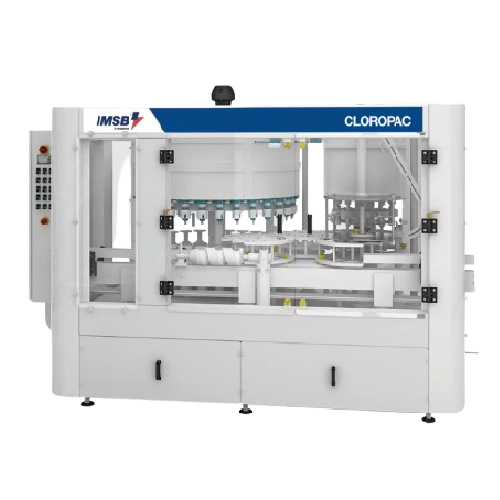

Gravimetric filling and capping system for chlorine solutions

Optimize your filling and capping processes for chlorinated and corrosive liquids with a dual-function machine that ensures precision and durability, even under demanding conditions.

Fills and Caps Corrosive Liquid Containers

The CLOROPAC Gravimetric Filling and Capping Machine, offered by OCME, is engineered for precision and reliability in handling chlorinated and corrosive products. It integrates filling and capping within a single unit, utilizing gravimetric valve technology for accuracy in high-speed operations. Targeted applications include sodium hypochlorite solutions and hydrochloric acid bottles, as well as liquid food flavorings and cosmetic lotions.

This equipment boasts a production capacity of up to 300 bottles per minute, fully automated to minimize human intervention and optimize workflow. Constructed from chlorine-resistant materials such as titanium and engineering polymers, it is designed to withstand aggressive chemical environments. Integration with Industry 4.0 systems allows for seamless connectivity across production lines and remote monitoring capabilities.

The machine’s versatility is underscored by its adaptability to various bottling sizes and shapes, featuring customizable torque settings for different lid types. It emphasizes operator safety and equipment longevity through its torque-limiting system, protecting against mechanical shocks. Cleaning is streamlined via an external self-cleaning system, ensuring compliance with stringent hygiene standards across food, cosmetic, and pharmaceutical sectors, among others.

Benefits

  • Ensures precise filling and capping to maintain product integrity and minimize waste.
  • Adapts to various bottle sizes, enhancing flexibility for diverse production requirements.
  • Minimizes human intervention, reducing labor costs and the potential for operator error.
  • Withstands corrosive environments, extending machine lifespan and reducing maintenance frequency.
  • Integrated safety features protect against mechanical shocks, preserving equipment integrity and enhancing operational safety.

General


Applications
Food,Chlorinated products,Cosmetic,Chemical,Corrosive products,Sanitizing,Pharmaceutical
End products
Sodium hypochlorite solution,Hydrochloric acid bottles,Liquid food flavoring bottles,Cosmetic lotion bottles,Disinfectant spray bottles,Industrial cleaning agents,Pharmaceutical solution vials
Steps before
Purification,Material Preparation,Mixing
Steps after
Capping,Packing,Quality Inspection
Input ingredients
chlorine based product,chlorinated products,corrosive products,plastic bottles
Output ingredients
filled plastic bottles,closed plastic bottles
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Production Capacity
300 BPM (bottles per minute)
Automation
Fully automatic
Filling Method
Gravimetric concept valves
Material
Plastic bottles
Torque Regulation
Individual torque for different lids
Main Structure Material
Carbon steel,engineering polymer,titanium
External Thread Guide Material
AISI 904L stainless steel
Pick and Place Disc Material
AISI 904L stainless steel
Piston Plunger Material
Duplex stainless steel

Operating Characteristics


Filling process
Gravimetric
Integrated operation
Filling and Capping in a single block
Capping mechanism
Magnetic heads with torque regulation
Production capacity
300 BPM (bottles per minute)
Automation level
Fully automatic
Operator intervention
Low need due to Industry 4.0 integration
Versatility
Customization for different production needs
Safety compliance
Designed to meet relevant safety standards
Changeover time
Quick setup adjustments via HMI

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Plastic bottles

Physical Characteristics


Control panel type
HMI (friendly and intuitive interface)
Main structure material
Carbon steel coated with rubberized paint,and engineering polymer
Parts in contact material
Engineering polymer and/or titanium
Pick and place disc material
AISI 904L stainless steel
Piston plunger material
Duplex stainless steel
Plate material
AISI 9041 stainless steel
External thread guide material
AISI 904L stainless steel
Grooved chestnuts material
Duplex steel
Threaded insert material
AISI 904L steel
Closure system
Magnetic heads with individual torque regulation

Custom Options


Control panel type
HMI with friendly and intuitive interface
Integration possibilities
Industry 4.0 integration with low need for operator intervention
Closure system customization
Magnetic heads with individual torque regulation
Material options for parts in contact
Engineering polymer and titanium
Versatility
Adaptation to client production needs
