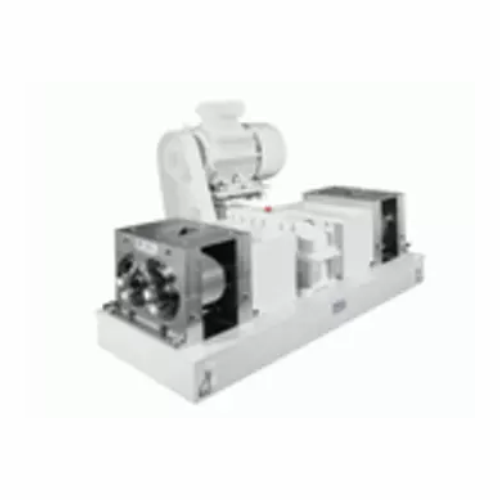

Gear pelletizer for stable cylindrical pellets

Achieve uniform pellet size and stability in your production line with a low-pressure extrusion solution, ideal for forming cylindrical pellets from materials like titanium dioxide and lithium-ion battery electrodes.

Forms Uniform Cylindrical Granules through Extrusion

The Gear Pelletizer AGF, offered by Hosokawa Alpine, employs a unique low-pressure extrusion process to create uniform cylindrical granules. Specially designed with counter-rotating toothed rollers, it excels in producing precise granules from materials such as titanium dioxide, industrial wax, and lithium-ion battery components. With an operational capacity ranging from 40 to 3,000 kg/h, the AGF series supports continuous, dust-tight, and gas-tight production, ideal for environments with stringent adherence to inert gas or solvent use. The machine’s integration capabilities include seamless incorporation into existing production lines for sectors like chemicals, food, and recycling. Built with corrosion-resistant materials, it is compatible with a range of industrial applications and complies with industry standards. Easy maintenance is ensured with integrated features enabling efficient cleaning and component accessibility. Additionally, customization options are available to meet specific production needs, supported by Hosokawa Alpine’s expert engineering assistance.

Benefits

  • Enhances product consistency with uniform cylindrical granule formation.
  • Ensures operational safety through dust-tight and gas-tight design.
  • Minimizes energy consumption via low-pressure extrusion process.
  • Facilitates seamless integration into existing production lines for versatile use.
  • Customizable to meet diverse industry-specific requirements, backed by expert engineering support.

General


Applications
Chemicals,Food,Animal feed,Titanium dioxide,Industrial wax,Dishwashing powder,Metals,Particle processing,Fertiliser,Lithium-ion batteries,Pharma,Additive manufacturing,Crop protection agents,Powder,Cocoa processing,Lactose and dairy products,Minerals,Recycling
End products
Lithium-ion battery electrode pellets,Industrial wax granules,Crop protection granules,Additive manufacturing powder,Fertilizer granules,Dishwashing powder pellets,Cylindrical pellets of titanium dioxide,Dairy product granules,Animal feed pellets,Cocoa granules,Lactose granules
Steps before
Grinding,Mixing,Pre-Crushing
Steps after
Drying,Packing,Coating
Input ingredients
powder,particle,bulk materials
Output ingredients
cylindrical pellets,dust-free granulate,smooth surface pellets,stable cylinder pellets
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Pellet Diameter
1–10 mm
Pellet Shape
Cylindrical
Throughput
40–3000 kg/h
Operation Compatibility
Dust and Gas Tight
Conical Product Chamber
Yes
Nozzle Bores
Between Teeth
Roller Type
Counter Rotating Toothed Rollers
Feed Method
Even Product Feed
Surface Finish
Smooth Surface
Gas Usage
Inert Gas Operation Possible
Solvent Usage
Operation with Solvents Possible

Operating Characteristics


Working Mechanism
Counter rotating hollow toothed rollers
Pellet Formation
Extrusion through nozzle bores
Pressing Mechanism
Pressure determined by nozzle diameter to length ratio
Batch vs. Continuous Operation
Continuous
Dust and Gas-tight Operation
Yes
Inert Gas Operation
Possible

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Sizes
GCS 200/40,GCS 200/60,GCS 200/80,GMS 300/120,GMS 300/200
Nozzle Diameter
1 to 10 mm
Compression Control
Relation of Nozzle Diameter to Nozzle Length
Pellet Shape
Cylindrical
Pellet Surface
Smooth
Product Chamber Shape
Conical
Feed,Discharge Method
Counter Rotating Toothed Rollers
Operation Environment
Dust and Gas-tight
Operation with Inert Gas
Possible
Roller Characteristics
Hollow Toothed

Custom Options


Integration possibilities
Dust and gas-tight operation,inert gas operation
Discharge method
Counter rotating toothed rollers
Nozzle diameter
1 to 10 mm
