Fully automatic linear labeling system for bottles

Optimize your bottle labeling process with precision and speed, ensuring accurate label application and seamless integration into high-speed production lines.

Applies Labels to Pharmaceutical Containers

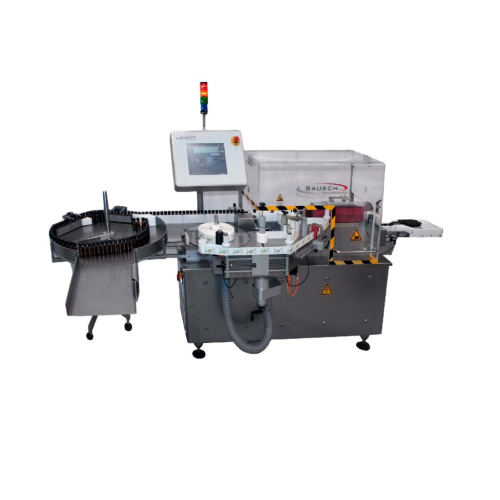

The Type 604 from BAUSCH Advanced Technology Group is a fully automatic, linear labeling machine designed for pharmaceutical and biotech applications. This machine stands out for its ability to accurately and efficiently apply self-adhesive labels to various containers, including sterile vials, ampoules, pre-filled syringes, and IV bags. Operating at a maximum output of 12,000 containers per hour, the Type 604 uses servo technology for precise label placement and features automatic speed synchronization for seamless integration into existing production lines. The system supports a range of printing options, such as hot foil, thermal transfer, and laser, ensuring flexibility in labeling needs. With a user-friendly PLC-controlled touch screen interface, operators can easily manage and adjust settings, while additional features like barcode scanning and label position checks enhance operational reliability. Designed to meet the stringent requirements of the pharmaceutical industry, the Type 604 is an ideal solution for pharmaceutical manufacturers, biotechnology companies, and aseptic processing facilities seeking high-speed, compliant labeling processes.

Benefits

  • Enhances production efficiency by processing up to 12,000 containers per hour.
  • Ensures precise label application, minimizing errors and reducing waste.
  • Integrates seamlessly with existing production lines for streamlined operations.
  • Minimizes operational disruptions with automatic speed synchronization.
  • Supports compliance with pharmaceutical industry standards, ensuring product safety and quality.

General


Applications
Biopharmaceuticals,Aseptic fill-finish packaging,Liquid formulations,Pharmaceuticals
End products
Iv bags,Monoclonal antibodies,Injectable biologics,Ampoules,Pre-filled syringes,Ophthalmic solutions,Sterile vials,Infusion solutions,Oral liquid medications,Vaccine doses
Steps before
Steps after
Input ingredients
bottles,containers,labels
Output ingredients
labeled bottles,labeled containers
Market info
Bausch Group is known for its precision engineering and manufacturing of custom industrial equipment, specializing in engineered-to-order solutions for various industries, prioritizing quality, innovation, and client-specific needs.

Technical Specifications


Maximum output
12,000 containers/hr
Design
Fully automatic,linear
Label application method
Self-adhesive
Label printing options
Hot foil,thermos transfer,laser printer
Container feeding system
Rotary table or conveyor
Label dispenser unit
Servo technology
Speed synchronization
Automatic
System control
PLC
Operation interface
User-friendly touch screen
Barcode scanner
Available
Label position,presence check
Available

Operating Characteristics


Automation level
Fully automatic
Changeover time
Quick
CIP/SIP
N/A
Cleaning method
N/A
Batch vs. continuous operation
Continuous

Material Compatibility


Compatibility with hot foil
Yes
Compatibility with thermos transfer printer
Yes
Compatibility with laser printer
Yes
Density/Particle Size
For labels

Product type Characteristics


Container type
Bottles
Labeling method
Self-adhesive

Physical Characteristics


Compact footprint
Yes
Machine footprint
Linear design
Feed/discharge method
Rotary table or conveyor
Control panel type
User-friendly touch screen

Custom Options


Control panel type
User-friendly touch screen operation
Automation level
Automatic speed synchronization
Integration possibilities
Compatible with upstream rotary table or conveyor
Custom labeling options
Hot foil,thermos transfer,or laser printer
Servo technology
Label dispenser unit
Labeling accuracy features
Barcode scanner,label position,presence check
System control
Via PLC
