Fully automatic chapati making machine

Streamline your flatbread production with this intelligent system that mimics handcrafting precision, ensuring consistency and quality across chapatis, tortillas, and more, while reducing manual labor and increasing output efficiency.

Processes and Bakes Chapatis and Flatbreads

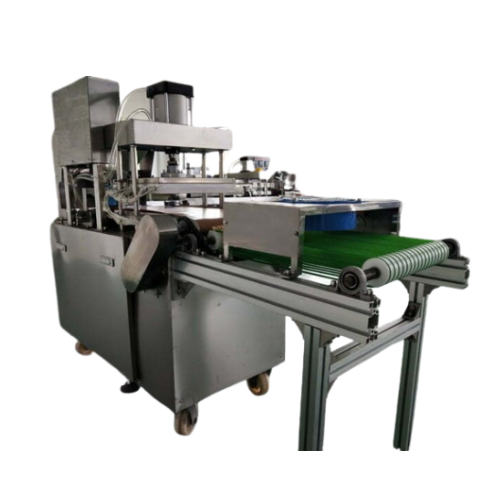

The Chapati and Flatbread Production Machine, available in models TZ-120, TZ-700, and TZ-1400, from Zhengzhou Taizy Machinery Co., Ltd., optimizes the production of diverse flatbreads and dough-based foods. Utilizing an intelligent PLC control system, it automates the process from dough mixing to final baking with continuous output. This equipment is suitable for producing chapatis, rotis, tortillas, spring roll wrappers, and vegetable cakes, offering customization in shape, size, and pattern to meet various specifications.

Designed for food processing businesses, commercial kitchens, restaurants, and bakeries, it integrates seamlessly into existing production lines. Capable of handling capacities ranging from 120 to 1800 pieces per hour, the machine is equipped with energy-efficient low-temperature baking pans, adjustable cutting and pressing settings, and a conveyance system to ensure uniform cooking and superior handmade-style taste. Maintenance is simplified through easy access parts, while its robust construction ensures durability in high-demand environments.

Benefits

  • Enhances production efficiency with continuous, automated operation, minimizing manual intervention.
  • Increases capacity with variable output capabilities, accommodating small to large-scale production needs.
  • Ensures product consistency and quality, replicating handmade taste through precise temperature and pressure controls.
  • Offers flexibility in production with customizable shapes, sizes, and patterns to meet diverse market demands.
  • Saves energy with optimized low-temperature baking, reducing operational costs.

General


Applications
Chapati products,Baked goods,Tortillas,Flatbreads,Dough-based foods,Spring rolls,Roti products,Vegetable cakes,Bread products
End products
Chapati,Handmade-style chapatti,Tortilla,Roti,Vegetable chapatti,Spring roll wrappers,Square roti,Patterned chapatti
Steps before
Dough mixing,Preheating
Steps after
Cooling,Packaging
Input ingredients
flour,water,dough
Output ingredients
chapati,roti,tortilla,spring roll wrapper,vegetable chapatti,buns,cakes
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Model Size
1.6*0.6*1.2m / 5.2*0.8*1.4m / 5.2*1.05*1.4m
Voltage
220V/380V
Power
5-7KW / 20KW / 30KW
Capacity
120-200pcs/h / 700-1200pcs/h / 1400-1800pcs/h
Weight
150KG / 420KG / 480KG
Automation
Full automatic,PLC-controlled
Bake temperature
Low to high
Cooling Machine
Included for post-baking process
Output Control
Intelligent control system for production
Shape Customization
Different patterns,shapes,and sizes
Noodle Thickness Control
Adjustable via control panel
Operating Automation Level
Requires only one person to operate
Production Line Integration
Capable of forming a complete chapatti production line

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Continuous
Changeover time
Minimal
CIP/SIP
CIP optional
Cleaning method
Manual / Automated
Energy efficiency
Optimized for baking
Integrated steps
Cutting,pressing,baking
Working mechanism
Imitates handwork
Preheat time
15 minutes
Cooling requirement
Integrated cooling

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Food-grade material compatibility
Yes

Product type Characteristics


Product versatility
Chapatti,roti,tortilla,spring roll wrappers

Physical Characteristics


Machine footprint
1.6*0.6*1.2m to 5.2*1.05*1.4m
Flour bucket capacity
Holds dough for chapatti formation
Discharge method
Conveyor belt
Control panel type
Intelligent PLC control screen
Weight
150KG to 480KG
Customization options
Different shapes and sizes of chapatti

Custom Options


Control panel type
Intelligent PLC control
Size and pattern customization
Customizable according to customer requirements
Production capacity customization
120-200 pcs/h to 1400-1800 pcs/h
Shape and size customization
Round or square
