Flour and dough analyzer

Enhance your dough and flour testing with precise rheological analysis, ensuring optimal water absorption and dough consistency for superior bakery products.

Analyzes Dough Rheology and Water Absorption

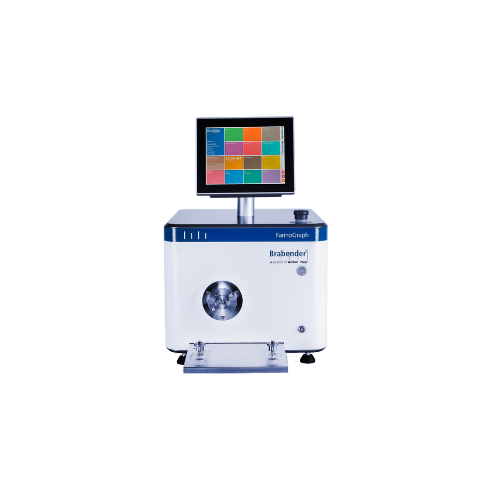

The Brabender FarinoGraph from Anton Paar is a specialized analyzer for precise rheological testing and water absorption analysis of flour and dough. This equipment stands out with its ability to cover all major national and international standards, including ICC, AACCI, and ISO, ensuring you communicate with a universally recognized metric: the Brabender/Farinograph Units (BU/FU). Ideal for applications in flour mills, bakeries, and food R&D laboratories, it simplifies critical evaluations like dough stability, development time, and softening degree. Using a 3-phase system, it simulates entire baking processes and integrates with MetaBridge software for seamless data connectivity, allowing access and sharing from any device. The device supports various processes from mixing and kneading to stretching and gelatinization analysis, while the AquaInject module automates precision water titration, enhancing consistency and safety. The FarinoGraph is available with a range of mixer attachments to suit different sample sizes and applications, with a focus on gluten-free and plant-based food sectors. This bench-top unit operates continuously and automates many testing functions, equipped with USB and LAN interfaces to integrate easily into laboratory environments.

Benefits

  • Ensures consistent product quality by adhering to all major international standards.
  • Enhances operational efficiency with automated water dosing and software-driven analysis.
  • Facilitates seamless data sharing and integration with existing systems to optimize production workflows.
  • Supports diverse applications with customizable mixer attachments for various sample sizes.
  • Improves safety and reliability with automation features and durable construction.

General


Applications
Dough,Grain,Plant-based food,Gluten-free products,Flour,Starch,Bakery products
End products
Plant-based meat substitutes,Pasta dough,Cornstarch,Bread loaves,Wheat flour,Gluten-free bread
Steps before
Milling,Grinding,Sifting,Weighing,Mixing
Steps after
Kneading,Fermentation,Baking,Cooling,Packaging
Input ingredients
flour,water,grain,gluten-free dough
Output ingredients
dough,water absorption data,rheological properties,Farinogram,Brabender/Farinograph Units (BU/FU)
Market info
Brabender is renowned for producing high-quality, engineered-to-order lab equipment for material testing, particularly in food and plastics industries, specializing in precision instruments for measuring, preparation, and processing.

Technical Specifications


Speed
0 min-1 to 200 min-1
Torque
28 Nm
Main connections voltage
230 V / 115 V
Power frequency
50/60 Hz
Current
4.3 A / 8.7 A
Power consumption
1 kW
Dimensions (W x H x D)
430 mm x 630 mm x 740 mm
Weight without measuring mixer
56 kg
Weight with measuring mixer S 300
74 kg
Interfaces
4x USB,1x HDMI,2x LAN

Operating Characteristics


Automation level
Automated with MetaBridge Software
Batch vs. continuous operation
Batch
Cleaning method
Manual / Automated water dosing
Air incorporation control
Automated water dosing for consistency
Energy efficiency
Integrated data management

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
430 mm x 630 mm x 740 mm
Weight without measuring mixer
56 kg
Weight with measuring mixer S 300
74 kg
Control panel type
Not specified

Custom Options


Mixer attachments
10 g breeder mixer to S300 miller/baker mixer
Automation
Automated water dosing
