Flex-bräu beer brewing system

Achieve high-efficiency beer production with integrated milling, filtration, and energy-saving technologies, designed for craft brewers to effortlessly manage diverse beer styles and batch sizes.

Brews and Processes Various Beer Styles Efficiently

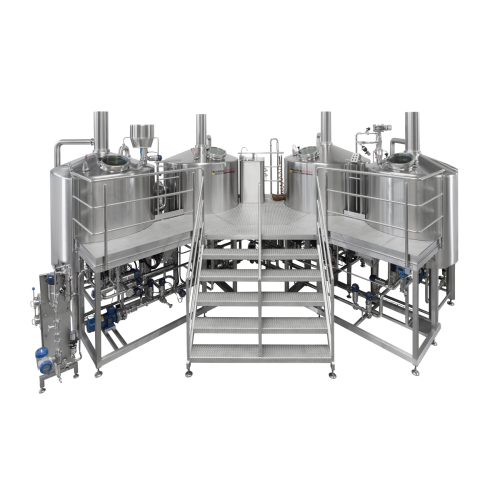

The Brewhouse Flex-Bräu from Easybräu-Velo is an adaptable brewing system engineered for craft breweries and beverage manufacturers seeking efficient beer production. Crafted from AISI 304/316 stainless steel, it supports a range of beer styles, including Blonde Ales, IPAs, and Stouts, with options for single or double batches. Its integrated system manages everything from malt milling to post-boil cooling with advanced automation features, including customized software for flexibility in operation. The brewhouse’s design reduces energy consumption through a fumes condenser and cooling water recovery, while limiting wort oxidation with innovative recirculation and transfer methods. Maintenance is streamlined with CIP (Cleaning in Place) and remote assistance capabilities, ensuring minimal downtime. Adjustable configurations allow for tailored throughput between 10 to 50 hectoliters, making it a scalable solution for varied production needs.

Benefits

  • Enhances operational efficiency with flexible batch processing options.
  • Minimizes oxidation risk through innovative wort handling techniques.
  • Saves energy costs via an integrated heat recovery system.
  • Simplifies maintenance with automated CIP and remote support features.
  • Customizable software improves process control and adaptability.

General


Applications
Craft beer,Alcoholic beverages,Brewing industry,Food and beverage industry,Specialty beers
End products
Belgian ale,Pilsner,Lager,Ipa (india pale ale),Barleywine,Stout,Saison,Wheat beer,Blonde ale,Porter
Steps before
Milling,Transport,Pre-mixing,Hydration of malt
Steps after
Filtration,Cooling,Fermentation,Maturation,Wort distribution
Input ingredients
malt,water
Output ingredients
wort,beer
Market info
Easybrau-Velo (Omnia Technologies) is known for manufacturing and supplying custom-engineered brewing and beverage processing equipment, offering tailored solutions to fit specific needs, while maintaining high quality and innovation standards in the industry.

Technical Specifications


Brewhouse Capacity
10–50 HL
Tun Configuration
3,4,or 5 tuns
Material
AISI 304/316 stainless steel
Production Density
Up to 20°P
Automation Level
Customized software-driven
Energy Savings
High efficiency with energy-saving system
Maintenance
Limited maintenance required
Cooling System
Single or double phase with high thermal efficiency
Filtration
Completely automatic using pressure sensors
Sanification
Included in software
Remote Assistance
Available
Brewing Program Management
Weekly production and wort distribution
Process Water Integration
Implemented
Hop-back Device Connection
Setup available
Boiling Fumes Condenser
Included

Operating Characteristics


Tun Configuration
3,4,or 5 tuns
Batch Type
Single/double batch or continuous brewing
Material
AISI 304/316 stainless steel
Automation Level
Various degrees,from malt grinding to full production
Energy Efficiency
High energy savings system
Wort Recirculation
Inside the wall under liquid level
Lautering Process
Independent tun
Maintenance
Limited maintenance required
Cleaning Method
CIP included in the system
Remote Assistance
Available
Brewing Production Management
Weekly program management and wort distribution
Recipe and Parameter Management
Customizable
Hop-back Device Connection
Setup available
Energy Saving
Boiling fumes condenser and cooling water recovery

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
High,supports CIP
Corrosive resistance (e.g. acids)
Stainless steel AISI 304/316
Density/particle size
Supports high density (over 20°P)

Physical Characteristics


Material
AISI 304/316 stainless steel
Tun Quantity
3,4,or 5 tuns
Tun System
Single/double batch or continuous brewing batches
Brewhouse Size Range
10 - 50 HL
Tun Types
Mash/Kettle tun,Lauter tun,Whirlpool tun
Energy Saving Feature
Boiling fumes condenser and cooling water recovery
Footprint
Varies depending on configuration (3,4,or 5 tuns)
Recirculation Process
Wort recirculation under the liquid level,transfers from below
Maintenance Requirement
Limited maintenance

Custom Options


Control panel type
Customized software
Automation options
Various degrees of automation
Remote-Assistance
Implementation possible
Energy-saving features
Boiling fumes condenser,cooling water recovery
Malt processing options
Grinding,transport,pre-mixing,hydration
Sanitation and cleaning
Included in software
Process water integration
Feature available
Hop-back device setup
Ability to connect
