Flat lollipop forming and wrapping system
Enhance your candy production with precision-engineered lollipop forming and wrapping, designed for intricate shapes and high-speed output to meet diverse confectionery demands.
Forms and Wraps Diverse Lollipop Shapes

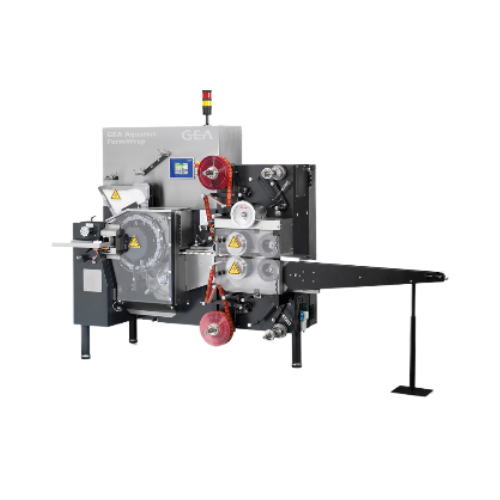

The GEA Aquarius FlatFormWrap series, including the FlatFormWrap SC and HC, provides lollipop manufacturers with a comprehensive solution for forming and wrapping flat, fancy, and 3D lollipops. This equipment stands out for its efficient multi-stage process that forms, cools, and wraps lollipops in one continuous operation, achieving up to 1,000 units per minute, depending on the model. Applications range from standard to custom designs, such as branded logo and cartoon character lollipops. With a hardened die set and enhanced pressing bridge (patent pending), the machine minimizes friction and reduces sugar stickiness. The pre-heating system ensures optimal film sealing temperatures, while an automatic reject system maintains quality by removing defects during startups and restarts. Designed for seamless integration, its user-friendly PLC system with a touch screen interface facilitates easy monitoring and control. The equipment is built with hygiene in mind, featuring easy-to-clean components and compliance with CE standards, along with reliable support from GEA’s dedicated service teams to ensure efficient operation and maintenance.
Benefits
- Increases production efficiency with the capability of forming and wrapping up to 1,000 lollipops per minute.
- Enhances product appeal through precision wrapping and icing for diverse, intricate lollipop designs.
- Minimizes production waste and defects using an automatic reject system for quality control.
- Lowers operational costs by reducing energy consumption due to optimized press and sealing systems.
- Ensures easy maintenance and cleaning with a design compliant with CE hygiene standards.
- Applications
- Sweets,Confectionery,Lollipops,Snacks
- End products
- Fancy lollipops,Flat lollipops,Branded logo lollipops,Flower-themed lollipops,Cartoon character lollipops,3d lollipops,Animal shape lollipops
- Steps before
- Forming,Heating
- Steps after
- Cooling,Packing,Icing
- Input ingredients
- sugar,film for wrapping,format set components
- Output ingredients
- flat lollipops,fancy lollipops,spherical 3D lollipops,sandwich wrapped lollipops
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Capacity
- 600–1000 lollipops per minute
- Die positions
- 12 positions (FlatFormWrap SC),15 positions (FlatFormWrap HC)
- Die change time
- 20–25 minutes
- Wrapping style
- Sandwich wrap style
- Film pre-heating
- Patent pending
- Sealing temperature
- Lowered due to pre-heating system
- Lollipop shapes
- Flat,Fancy,and Spherical 3D
- Output quality
- Excellent consistent high quality
- Sugar cooling
- PopCooler F cooler
- Icing feature
- Available on FlatFormWrap SC
- Lubrication system
- Autolubrication set on die set
- Automatic reject system
- Included
- Machine size
- Compact machine
- Working principle
- Flat,fancy,spherical 3D lollipops forming with wrapping
- Automation level
- PLC
- Film pre-heating system
- Patent pending,lowers sealing temperature
- Revised pressing system
- Reduces friction and sugar sticking
- Changeover time
- 20-25 minutes for die sets
- Batch vs. continuous operation
- Batch operation
- Cooling method
- Immediate after forming with PopCooler F
- Output rate
- 600 to 1,000 lollipops per minute
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- Yes
- Hygienic Design
- Optimized hygienic design
- Lollipop Style
- Flat / Fancy / 3D
- Icing Capabilities
- Yes
- Machine footprint
- Compact
- Die configuration
- 15 positions hardened die set
- Discharge method
- Automatic reject system
- Cooling system
- PopCooler F cooler
- Control panel type
- Touch screen
- Die set change time
- 20-25 minutes
- Sealing temperature control
- Pre-heating system
- Forming possibilities
- Flat,fancy,spherical 3D
- Wrap style
- Sandwich wrap
- Automatic reject system
- Yes
