Flash pasteuriser for high-quality fresh juice

Achieve superior juice quality and extended shelf life with precision pasteurization, ensuring optimal flavor and freshness while rapidly chilling your beverages.

Pasteurises and Chills Fresh Juices

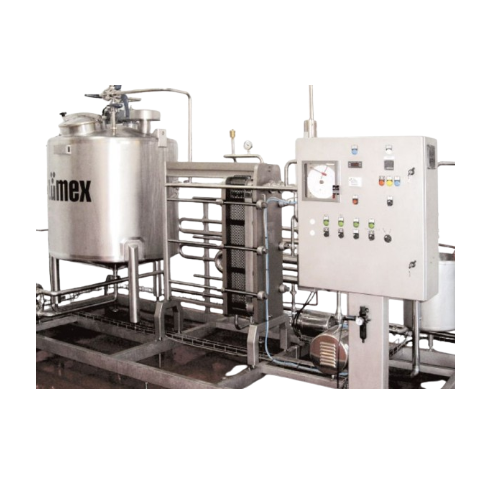

The Zumex ZF1000 Flash Pasteuriser is designed to enhance juice production by ensuring hygiene and preserving quality. This machine uses a high pitch plate heat exchanger, or an optional tubular exchanger for high-viscosity juices, to pasteurise and chill juices while maintaining their natural flavor and aroma. With a capacity of up to 1000 liters per hour, it accommodates various juice types, including orange, pomegranate, and tropical fruit juices. Its continuous operation and PLC control allow seamless integration into processing lines, providing precise temperature adjustments for varying shelf-life requirements. Energy efficiency is achieved through regenerative heat exchange, while built-in CIP systems facilitate easy cleaning and maintenance. Made of stainless steel, the ZF1000 offers durability and resistance to corrosion, making it ideal for food and beverage manufacturers aiming for efficient and reliable juice processing.

Benefits

  • Enhances juice freshness and shelf life with precise temperature control.
  • Minimizes energy use through efficient regenerative heat exchange.
  • Preserves natural flavor and aroma for high-quality end products.
  • Streamlines cleaning and reduces contamination risk with integrated CIP system.
  • Easily integrates into existing production lines for seamless operations.

General


Applications
Citrus juices,Freshly squeezed juices,Fruit juices,Multifruct juices
End products
Pomegranate juice,Orange juice,High pulp orange juice,Freshly squeezed citrus juice,Cold pressed juice,Tropical fruit juice
Steps before
Selection,Washing,Loading,Calibrating,Juice Extraction
Steps after
Chilling,Packing,Bottling,Labelling
Input ingredients
oranges,fruit with pulp,high viscosity juices
Output ingredients
freshly squeezed juice,high quality juice
Market info

Technical Specifications


Capacity
Up to 1000 l/h
Pasteurisation stages
2 or 3 stages
Pulp content
Maximum 10% pulp
Temperature adjustment
Adjustable for different expiry dates
Output temperature
2-4°C with third exchanger stage
Cooling temperature
Optional chilling stage
Cleaning method
Built-in CIP system
Energy saving technology
Flash technology
Construction material
Stainless steel
Automation
Electronic control and recording
Product pump
With hot water system
Juice output indication
Electronic indicator

Operating Characteristics


Working Mechanism
Plate or Tubular Exchanger
Integrated Steps
Regeneration,Pasteurising,Chilling
CIP Principles
Built-in CIP System
Batch vs. Continuous Operation
Inline Continuous
Automation Level
Electronic Control
Temperature Adjustment
Adjustable
Chill Technology
Frozen Water Generation Module
Pasteurisation Speed
Flash Technology

Material Compatibility


Biological compatibility
Yes
Cleanability
Integrated CIP system
Corrosive resistance (e.g. acids)
Stainless steel construction
Heat exchanger material
Stainless steel

Product type Characteristics


Foaming
Minimized foaming with Flash technology
Heat sensitivity
Preserves original flavour,colour,texture,aroma

Physical Characteristics


Feed/discharge method
Tubular or high pitch plate heat exchanger
Material
Stainless steel
Control panel type
Electronic
Cooling option
Chilling available

Custom Options


Control panel type
Electronic control with circular recorder
Temperature adjustment
Adjustable for different expiry dates
Exchanger stage
Two or three stages
Exchanger type
High pitch plate / Tubular for high viscosity juices
CIP system
Built-in with product pump and probes
Cooling option
Optional third exchanger for reduced temperature
