Filter washing cabinet for industrial cartridge filters
In industrial environments, cartridge filters require regular and thorough cleaning to maintain efficiency and ensure compliance with hygiene standards. This process is often challenging due to the complexity of the filter structures, which can retain residues and contaminants if not cleaned properly.
Automate washing and drying processes for cartridge filters

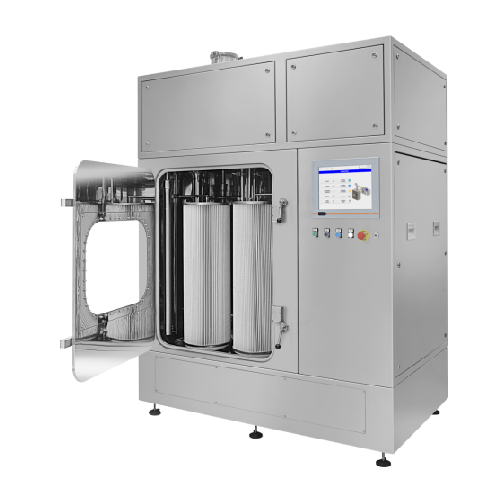

The Filter Washing Cabinet by Freund is designed for the automatic washing and drying of cartridge filters. This system features an ultrasonic washing system that ensures thorough cleaning by utilizing lower rotating locking cones with internal washing nozzles and external washing nozzles. An upper locking mechanism with a height adjustable arm provides flexibility for different filter sizes. The cabinet supports multiple water inlets including industrial and demineralized water, as well as a compressed air pipe drainage system. Controlled via a PLC and touchscreen, users can easily program and monitor washing cycles, and there is a USB port for printer connection to log processes. Made from AISI 304 stainless steel, it supports filter sizes ranging from Ø 100-330 mm and heights of 300-900 mm.
Benefits
- Efficient and thorough cleaning with ultrasonic system
- Supports a range of filter sizes for versatile use
- Automated process reduces manual labor and errors
- Customizable settings for specific cleaning requirements
- Durable AISI 304 stainless steel construction
