Filled capsule conveyor system for pharmaceutical production

Ensure gentle and efficient conveying of filled capsules in your production line, minimizing damage and maintaining product integrity throughout transfer processes.

Gently Transfers Filled Capsules

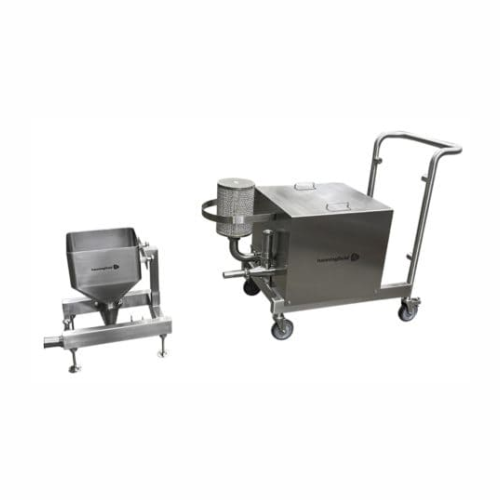

The Hanningfield CapsuJet FCC is an engineered capsule conveyor system tailored for pharmaceutical and nutraceutical industries. Utilizing a patented venturi system, it ensures the gentle transfer of filled capsules with minimal damage, maintaining product integrity. Positioned adjacent to capsule filling machines, it integrates smoothly into your production line, automating the transfer process with a capacity of 200,000 capsules per hour. The compact design, featuring a 200-liter hopper and Tri-Clover clamps, provides efficient operation and easy cleaning without special tools. Built with 316L stainless steel for contact parts, it ensures durability and compliance with pharmaceutical standards. Mounted on a mobile trolley for flexible placement, the system supports continuous and automatic operations, optimizing your handling needs while reducing manual labor.

Benefits

  • Enhances production efficiency by automating the capsule transfer process.
  • Minimizes product damage through gentle handling, preserving capsule integrity.
  • Reduces manual labor requirements, improving workplace safety and reducing costs.
  • Facilitates easy cleaning and maintenance with tool-free disassembly.
  • Complies with pharmaceutical industry standards, ensuring operational reliability.

General


Applications
Supplements,Oral solid dosage,Nutraceuticals,Capsules,Pharmaceuticals
End products
Digestive health supplements,Vitamin d capsules,Calcium capsules,Paracetamol capsules,Probiotic capsules,Fish oil capsules,Herbal supplements,Multivitamin supplements,Pain relief capsules,Iron supplements
Steps before
Capsule Filling,Capsule Polishing
Steps after
Packing,Bulk Storage,Downstream Processing
Input ingredients
filled capsules
Output ingredients
bulk container,transported capsules
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Transfer Rate
200,000 capsules/hr
Max. Vertical Convey Distance
5m (16ft)
Max. Horizontal Convey Distance
2.5m (8ft)
Hopper Capacity
200 litres
Weight
Approximately 150 kgs (330 lbs)
Material
316L stainless steel (1.4404) for contact parts,304 stainless steel (1.4301) for non-contact parts
Dimensions
(H) 1150mm x (W) 500mm x (L) 885mm
Capsule Compatibility
Suitable for all sizes of hard shell capsule
Automation
PLC-controlled (implied from features description)
Mobile System
Mounted to a mobile trolley
Cleaning Method
Easy-clean design with Tri-Clover clamps
Country of Design
United Kingdom
Country of Manufacture
United Kingdom

Operating Characteristics


Working mechanism
Gravity-fed,air-cushioned transport
Integrated steps
Capsule storage,air-driven transport
Cleaning method
Easy-clean,quick dismantle
Batch vs. continuous operation
Batch
Automation level
Manual loading,automated transfer

Material Compatibility


Corrosive resistance (e.g. acids)
316L stainless steel (1.4404)

Product type Characteristics


Capsule fill type
Filled capsules
Suitable capsule sizes
All hard shell capsule sizes

Physical Characteristics


Machine Footprint
(H) 1150mm x (W) 500mm x (L) 885mm / (H) 45in x (W) 20in x (L) 35in
Weight
Approx. 150 kgs (330 lbs)
Compact Design
Yes,enabling easy placement adjacent to machinery
Mobile Platform
Mounted to a mobile trolley
Construction Material
Contact Parts
Hopper Size
200 litre
Feed/Discharge Method
Gravity feed with venturi airflow transfer

Custom Options


Compact design modification
Yes,upon request
Mobile trolley dimensions
Customizable dimensions
Material of construction
316L stainless steel,304 stainless steel
System dismantling method
Tri-Clover clamps,no special tooling required
Conveyance configuration
Adjustable feed chute positioning
