Electronic tablet counter for tablets and capsules
Optimize your production line with precise counting solutions for a wide range of pharmaceutical and nutraceutical solid products, ensuring accurate batch management and effective dust removal.
Counts and Sorts Tablets and Capsules

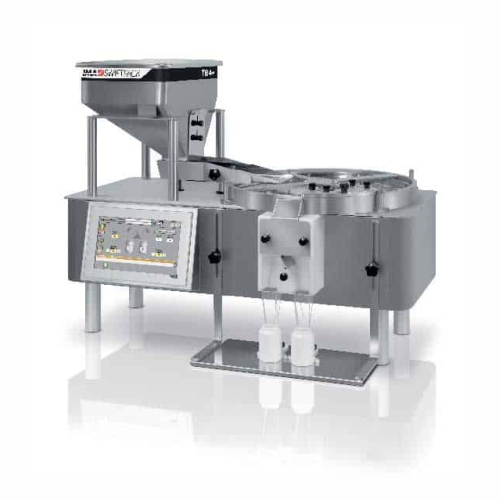

The TB4+ from IMA Swiftpack is a high-speed electronic tablet and capsule counter designed for precision and efficiency in pharmaceutical and nutraceutical manufacturing. It operates using an adjustable batch process capable of handling 1 to 10,000 units, ensuring seamless integration into varied production lines. With its stainless steel construction, the TB4+ excels in dust and chip removal, essential for maintaining product purity. It serves diverse applications, including aspirin and vitamin D tablets, omega-3 softgels, and herbal extract tablets. Optimized for GMP compliance, it features simple operation and fast product changeovers, supported by a robust dust extraction system for clean processing environments.
Benefits
- Increases production efficiency with precise, high-speed tablet and capsule counting.
- Minimizes product contamination risk through effective dust and chip removal.
- Enhances operational flexibility with quick, easy product changeovers.
- Supports compliance with GMP standards, ensuring high-quality processing.
- Reduces manual intervention with straightforward, user-friendly operation.
- Applications
- Vitamins, Supplements, Pharmaceutical tablets, Nutraceuticals, Capsules
- End products
- Ibuprofen tablets, Herbal extract tablets, Omega-3 softgels, Gummy vitamins, Vitamin d supplements, Multivitamin capsules, Fish oil capsules, Gelatin-based nutraceuticals, Protein supplements, Aspirin tablets
- Steps before
- Tablet pressing, Capsule filling, Product formulation
- Steps after
- Packing, Labeling, Quality inspection
- Input ingredients
- tablet, capsule, dragee, hard gelatine capsule, soft gelatine capsule
- Output ingredients
- counted tablets, counted capsules, counted dragees, counted hard gelatine capsules, counted soft gelatine capsules
- Market info
- IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.
- Batch size
- 1-10, 000
- Accuracy
- Extremely accurate
- Material
- Stainless steel
- Automation
- Quick setup and cleaning
- Counting capacity
- Tablets and capsules of most shapes
- Speed (Tablets 5.0 mm)
- 2, 000 tablets/min
- Speed (Tablets 6.5 mm)
- 2, 000 tablets/min
- Speed (Tablets 9.0 mm)
- 1, 800 tablets/min
- Speed (Tablets 10.0 mm)
- 1, 600 tablets/min
- Speed (Tablets 11.5 mm)
- 1, 400 tablets/min
- Speed (Tablets 15.0 mm)
- 1, 000 tablets/min
- Dust and chip removal
- Yes
- Dust extraction points
- Yes
- Energy consumption
- Reduced to a minimum
- Counting method
- Electronic
- Batch operation
- 1-10, 000 tablets/capsules
- Changeover time
- Fast
- Automation level
- PLC-controlled
- Cleaning method
- Easy to clean
- Dust and chip removal
- Included
- Dust extraction points
- Multiple points
- Energy efficiency
- Reduced energy consumption
- Material
- Stainless steel
- Batch Size
- 1-10, 000
- Footprint
- Compact
- Control Panel Type
- Simple operation
- Dust and Chip Removal
- Integrated
- Dust Extraction Points
- Yes
- GMP Design
- New design
- Control panel type
- Touchscreen / PLC interface
- Integration possibilities
- SCADA / MES
- Batch count range customization
- 1 to 10, 000
- Material of contact parts
- Stainless steel
- Product range handling
- Tablets, capsules, dragee hard and soft gelatine capsules
- Dust and chip removal features
- Integrated dust extraction points
