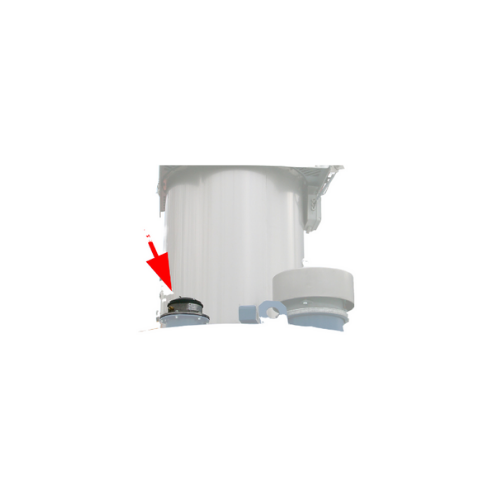

Electronic pressure meters for silo safety monitoring

Ensure precise pressure management in your systems with this advanced electronic solution, designed to safeguard silos during both filling and purging operations, enhancing safety and operational efficiency.

Monitors Pressure in Silo and Tanker Operations

The IPE Electronic Pressure Meter from WAMGROUP is an essential tool for precise pressure monitoring in silo and tanker operations. This meter stands out with its self-cleaning, wear and temperature-resistant membrane, which ensures durability and accuracy in harsh conditions ranging from -30 to 80 °C. It integrates seamlessly into continuous, electronic operations at wastewater treatment facilities, construction sites, and industrial plants.

The meter’s electronic card provides dependable readings, crucial during the filling and purging phases, thus preventing overpressure situations and ensuring safety. Applicable in various industries—from ready-mix concrete production to pharmaceuticals—this meter supports a wide range of end-products such as concrete blocks, aquaculture feed, and synthetic resins.

Designed with an IP 55 protection rating, the IPE offers customization options with its compatibility to be installed on IPX-type weld-on spigots. This adaptability, coupled with its robust assembly fittings, makes it an ideal choice for demanding environments. Its compact design facilitates easy installation and minimal maintenance, making it a cost-effective solution for modern production lines requiring reliable pressure supervision.

Benefits

  • Enhances operational safety by preventing overpressure in silos and tankers.
  • Minimizes maintenance with a durable, self-cleaning membrane.
  • Ensures accurate monitoring in extreme temperatures from -30 to 80 °C.
  • Reduces installation costs with compact, easy-to-integrate design.
  • Offers customizable setup with options for specific installation needs.

General


Applications
Lime,Sugar processing,Rubber processing,Biscuit processing,Drymix building materials,Minerals,Cement,Detergents,Iron and steel,Glass,Spices,Plastics raw materials,Varnishes,Rice milling,Precast concrete,Resin,Coffee processing,Animal feed,Convenience food,Cocoa processing,Power plants,Paints,Fertilizers,Petfood,Pharmaceuticals,Fish food,Pasta making,Gypsum,Ready-mix concrete,Breweries,Coking plants
End products
Spaghetti,Wall paints,Dog kibble,Concrete blocks,Hydrated lime,Poultry feed,Rubber sheets,Wood varnishes,Coking coal,Beer,Cookies,Spice blends,Steel beams,Milled rice,Portland cement,Processed minerals,Aquaculture feed,Plastic pellets,Granulated sugar,Gypsum boards,Synthetic resins,Ground coffee,Laundry detergents,Pain relief tablets,Instant noodles,Precast panels,Dry mix mortars,Electricity generation ash,Crop fertilizers,Chocolate bars,Glass bottles
Steps before
Filling,Purging
Steps after
Pressure Monitoring
Input ingredients
Output ingredients
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Operating Temperature
-30 ~ 80 °C (-22 ~ 176 °F)
Protection Class
IP 55
Cable Size
2 x 1.5 mm² (2 x 0.002 sq in)
Material
Aluminium Alloy
Self-cleaning Membrane
Wear and Temperature-resistant
Installation
Top of IPX-type weld-on spigot
Electronic Card
Included
Assembly Fittings
Bolts and Gasket Included

Operating Characteristics


Pressure monitoring
Real-time
Membrane type
Self-cleaning,wear and temperature-resistant
Automation level
Electronic
Temperature range
-30 ~ 80 °C (-22 ~ 176 °F)
Installation method
On top of IPX-type weld-on spigot

Material Compatibility


Abrasion resistance
Self-cleaning wear-resistant membrane
Temperature resistance
-30 ~ 80 °C (-22 ~ 176 °F)
Corrosive resistance
Aluminium alloy casing
Cleanability
Self-cleaning membrane

Physical Characteristics


Membrane Type
Self-cleaning wear and temperature-resistant
Casing Material
Aluminium alloy
Operating Temperature Range
-30 ~ 80 °C (-22 ~ 176 °F)
Protection Rating
IP 55
Cable Size
2 x 1.5 mm² (2 x 0.002 sq in)

Custom Options


Install location
Top of IPX-type weld-on spigot
