Electric tomato squeezer for large-scale production

Optimize your tomato processing with this high-capacity electric squeezer, designed to streamline sauce and puree production with its robust construction and efficient design, perfect for scaling up culinary operations while ensuring consistent quality.

Processes Tomatoes into Purée and Sauce Formulations

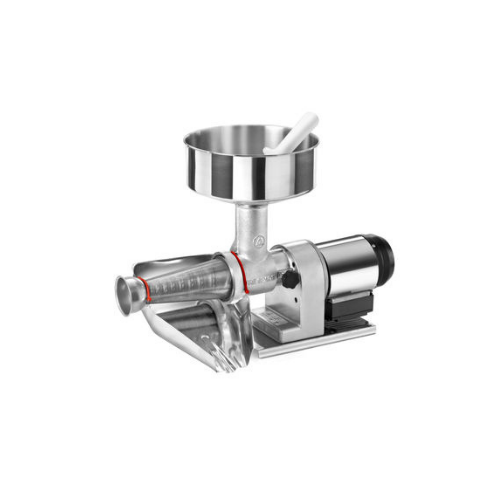

The BIG-2P Elegant from Tre Spade is an electric tomato squeezer designed for seamless integration into both professional and domestic kitchen settings. What sets this machine apart is its robust construction, combining a tinned cast iron body and stainless steel components to withstand high-volume operations. Equipped with a powerful 480 W single-phase asynchronous motor, it processes tomatoes swiftly, achieving up to 160 rotations per minute for efficient output of purées and sauces like marinara and passata. The stainless steel filter ensures longevity and hygiene, crucial for food processing.

This machine excels in applications ranging from tomato purées to complex culinary preparations like salsa and ketchup. It integrates effortlessly into existing kitchen workflows, capable of handling batch and high-speed operations for both solid and slurry product types. Energy-efficient motor options and voltage customization cater to different power specifications, enhancing process adaptability.

The BIG-2P Elegant is easily disassembled, facilitating quick cleaning and maintenance, a significant advantage in minimizing downtime. Optional attachments, such as a meat mincer body, provide versatility in food processing tasks. With its focus on durability and user-centric design, this equipment is ideal for catering businesses, food processing plants, and home kitchens aiming to optimize their tomato-based product output.

Benefits

  • Optimizes processing efficiency with rapid 160 RPM operation, reducing production time.
  • Supports versatile kitchen workflows with optional meat mincer attachment for multi-use functionality.
  • Minimizes downtime with quick-to-disassemble design for fast, thorough cleaning.
  • Offers energy adaptability with configurable motor options to meet diverse electrical specifications.
  • Enhances product consistency with a durable stainless steel filter for superior quality control.

General


Applications
Culinary ingredients,Food processing,Sauces,Tomato products
End products
Ketchup,Tomato puree,Tomato paste,Passata,Bruschetta topping,Marinara sauce,Tomato sauce,Salsa
Steps before
Washing,Chopping,Sorting
Steps after
Packing,Canning,Sterilization
Input ingredients
fresh tomatoes
Output ingredients
tomato puree,tomato sauce
Market info

Technical Specifications


Motor power
480 W
Dimensions
62.5x29x45 cm
Worm revolutions per minute
160 r.p.m.
Voltage
220-240 Volt
Operational Frequency
50 Hz
Weight
13.0 kg
Material
Tinned cast iron,nylon,stainless steel
Production size
Big

Operating Characteristics


Working mechanism
Electric Squeezer
Integrated steps
Tomato squeezing,optional meat mincing
Batch vs. continuous operation
Batch
Cleaning method
Easily disassembled for manual cleaning
Automation level
Manual operation
Splashes protection
Complimentary splashes protection included
Energy efficiency
480 W motor
Worm revolutions per minute
160 r.p.m.
Motor type
Single-phase asynchronous motor
Motor versatility
Motors with other voltages/power available on request

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size
62.5x29x45 cm
Production size
Big production size n° 5

Physical Characteristics


Footprint (Dimensions)
62.5x29x45 cm
Weight
13.0 kg
Body Material
Tinned cast iron
Auger Material
Nylon
Hopper Material
Stainless steel
Collector Material
Stainless steel
Base Material
Stainless steel
Filter Material
Stainless steel
Motor Cover Material
Stainless steel
Feed/Discharge Method
Splash protection included

Custom Options


Material of auger
Nylon
Material of body
Tinned cast iron
Material of hopper,collector,and base
Stainless steel
Disassembly feature
Easily disassembled for quick and easy cleaning
Optional accessory
Meat mincer body
Protection
Complimentary splashes protection included
