Efficient barley malt crushing with roller mills
Achieve precise particle size control in your processing line with a robust roller mill, enhancing efficiency and product uniformity for diverse agricultural and industrial applications.
Controls Particle Size and Grinds Materials

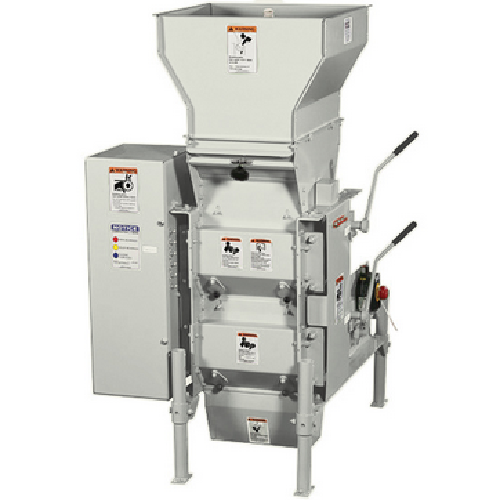

The Roskamp Series 650 Roller Mill by CPM is engineered to deliver precise particle size control for a wide range of industries, including animal feed production, oilseed processing, and ethanol manufacturing. This roller mill stands out for its single-point roll adjustment and heavy-duty relief springs, ensuring long-lasting operation and minimal maintenance. It employs V-belt drives for efficient and quiet performance, capable of processing materials into granules, powders, or solid forms with uniform consistency. Its applications span barley malt crushing, soybean meal production, and biomass processing, with throughput capacities adaptable to your facility’s needs, ranging from 5 to 25 horsepower. Designed for seamless integration, it features a large-capacity bridge-proof hopper with barnacle magnets and offers optional prehopper and agitator configurations. The mill is available with chilled cast iron rolls, and its robust construction supports continuous, high-speed operations with options for customization and technological upgrades to meet your specific processing requirements.
Benefits
- Enhances productivity by delivering consistent particle size control across various raw materials.
- Minimizes maintenance costs with durable construction and reliable roll adjustments.
- Reduces operational noise and energy consumption through efficient V-belt drive mechanisms.
- Increases processing versatility with customizable configurations and heavy-duty roll protection.
- Supports integration into existing production lines, ensuring minimal disruption and easy adaptation.
- Applications
- Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
- End products
- Barley malt,Pelletized hops,Hemp fiber,Dog kibble,Wood pellets,Meat and bone meal,Bread flour,Fish feed,Ethanol from corn,Soybean meal
- Steps before
- Grinding,Cleaning,Drying
- Steps after
- Particle Size Reduction,Pelleting,Briquetting
- Input ingredients
- barley malt,grains,oilseeds
- Output ingredients
- uniformly ground barley malt,crushed grains,processed oilseeds
- Market info
- CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.
- Roll diameter
- 6.5 inches
- Drive type
- V-belt drive
- Horsepower Range
- 5 to 25 hp
- Differential drive
- 1.5
- Roll adjustment
- Single-point
- Material of rolls
- Chilled cast iron
- Roll protection
- Heavy-duty relief springs
- Feed gate width
- Covers full width of rolls
- Roll corrugations
- For broad range of applications
- Motor base
- Adjustable
- Dimensions
- Height/Length/Depth
- Weight
- Model Specific
- Quiet operation
- Yes
- Sample ports
- After rolls
- Hopper capacity
- Large-capacity bridge proof
- Motor type
- Pillow block bearings
- Working mechanism
- Roller mill crushing
- Automation level
- Manual / PLC-controlled
- Batch vs. continuous operation
- Continuous operation
- Noise level
- Quiet operation
- Single-point roll adjustment
- Yes
- Roll protection
- Heavy-duty relief springs
- Roll diameter
- 6.5 inches
- Drive type
- V-belt drives
- Abrasion resistance
- Chilled cast iron rolls
- Cleanability
- Stainless steel contact point (S2)
- Density/particle size
- 50–1000 µm
- Corrosive resistance (e.g. acids)
- Stainless steel components
- Roll Diameter
- 6.5 inches
- Machine Height
- 23-36 inches / 584-914 mm
- Machine Length
- 26-44 inches / 660-1,118 mm
- Machine Depth
- 39 inches / 991 mm
- Weight
- 406-1,423 lbs / 184-645 kg
- Drive Type
- V-belt drives
- Discharge method
- Sample ports after rolls
- Feed Method
- Large-capacity bridge proof hopper with barnacle magnets
- Roll Adjustment
- Single-point
- Roll Protection
- Heavy-duty relief springs
- Material
- Chilled cast iron rolls
- Drive Side
- Left or right side
- Hopper Type
- Large-capacity bridge proof hopper with barnacle magnets
- Model Type
- Single Pair (SP) and Double Pair (DP) models
- Contact Points
- Stainless steel (S1) or full wash-down (S2) components
- Motor Base
- Adjustable
- Feed Gate
- Covers full width of rolls
- Roll Corrugations
- For a broad range of applications
- Sample Ports
- After rolls
- Additional Kits
- Prehopper,hopper agitator,downspout kit,leg kit
