Dust particulate extraction system

Ensure safe containment and minimize airborne particulates in your production line with low-volume air extraction, effectively capturing dust particles and enhancing operational safety in demanding pharmaceutical and chemical environments.

Extracts and Contains Nanoparticles from Production Lines

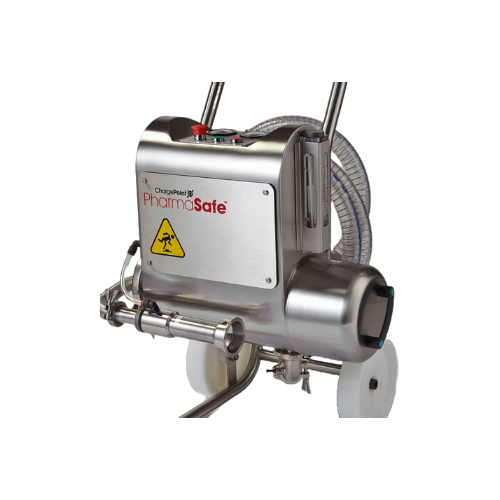

The PharmaSafe Dust Extraction System from ChargePoint Technology is tailor-made for pharmaceutical, chemical, and battery manufacturing environments requiring meticulous particulate management. This pneumatic, compact assembly employs dual HEPA filters for air purification, utilizing low volume air extraction to capture residual dust particulates from active and passive valve interfaces. Its design utilizes true pressure differential measurement and features safe change push-through technology, ensuring minimal exposure risks.

Ideal for use in producing pharmaceutical tablets, APIs, lithium-ion battery cathodes, and nano-sized metal oxides, it offers versatile application through wall-mounted, floor-standing, or mobile configurations. The system can be incorporated seamlessly into existing production lines, enhancing operational safety and compliance.

With optional ATEX-rated components for explosive atmospheres and availability in a range of materials for compatibility with harsh substances, this extraction system adheres to stringent industry standards. Additionally, the design supports easy maintenance with parts accessible for cleaning and filter changes, reinforcing its role as a dependable solution in diverse processing facilities.

Benefits

  • Ensures operator safety and regulatory compliance with integrated HEPA filters.
  • Minimizes contamination risk through efficient particulate extraction and containment.
  • Adapts to varied production setups with flexible mounting options.
  • Enhances process efficiency with pneumatic-driven, low-volume air extraction.
  • Simplifies maintenance with easy access for filter changes and cleaning.

General


Applications
Fine chemicals,Battery industry,Nanoparticles,Powders,Pharmaceuticals
End products
Graphite anodes,Pharmaceutical tablets,Lithium-ion battery cathodes,Active pharmaceutical ingredients (apis),Nano-sized metal oxides
Steps before
Powder transfer,Valve engagement
Steps after
Nanogram containment,Dust particulate disposal
Input ingredients
dust particulate,product particulate,airborne particles
Output ingredients
filtered air,extracted dust,contained particulates
Market info
Chargepoint Technology is known for its expertise in designing and manufacturing high containment and sterile transfer solutions for pharmaceutical and biopharmaceutical industries, particularly in powder containment and aseptic transfer systems.

Technical Specifications


Filtration system
Dual HEPA filters
Energy Usage
Pneumatic powered
Automation
Manual
Airflow control
Low volume air extraction
Mounting configurations
Wall mounted / Floor standing / Mobile
Suction method
Vacuum pump
Pressure measurement
True pressure differential
ATEX rating
Available upon request

Operating Characteristics


Working Mechanism
Low volume air extraction
Cleaning Method
Safe change push through technology
Automation Level
Pneumatic powered
Mounting Configuration
Wall mounted / Floor standing / Mobile
Compliance
ATEX rated version available

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
High
Biological compatibility
Yes
Density/particle size
Varied,handles fine powders


ATEX certification
ATEX rated version of the skid
HEPA Filtration Certification
Dual HEPA filters

Physical Characteristics


Machine footprint
Compact assembly
Discharge method
Pneumatic powered
Mounting configurations
Wall mounted / Floor standing / Mobile
Filter type
Dual HEPA filters
Skid assembly storage
Hose storage capability

Custom Options


Mounting configuration
Wall mounted / Floor standing / Mobile
ATEX rating
ATEX rated version available
Filter type
Dual HEPA filters
