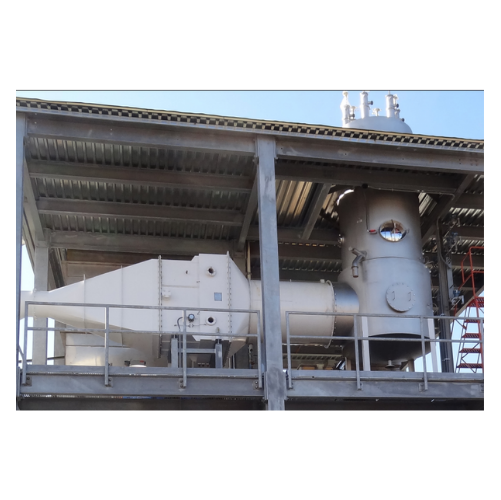

Dust-free granulation system for non-heat sensitive liquid feeds

Transform liquid feeds into dust-free, free-flowing granules efficiently, ensuring high-density output suitable for demanding production environments.

Produces Dust-Free Granules from Liquid Feeds

The SPRAY FLUIDIZER™ from GEA is a sophisticated solution that integrates both spray drying and fluid bed technologies to produce dust-free, high-strength granules from non-heat sensitive liquid feeds. This equipment is essential for chemical producers and ceramic manufacturers aiming for superior product handling and environmental compliance. It utilizes nozzles to atomize feed into a fluidized bed, where particle layering and drying occur continuously. Common applications include the production of ceramic proppants, ammonium sulfate, and various organic salts and acids. The system supports continuous operations and is capable of efficiently handling high throughput with a plug-flow fluid bed for final drying and cooling. Integration into existing production lines is seamless thanks to its PLC-controlled operations and modular design, which allows easy customization. Constructed from durable materials, the SPRAY FLUIDIZER™ ensures longevity and resistance to corrosive substances. With options for recycling oversized particles and fines, it maximizes material use and minimizes waste.

Benefits

  • Ensures environmental compliance with dust-free granule production.
  • Increases operational efficiency with continuous, automated processing.
  • Enhances product handling by creating high-density, compact granules.
  • Minimizes waste through effective recycling of fines and oversized particles.
  • Integrates seamlessly into existing production lines with modular design and PLC control.

General


Applications
Dust-free granules,Sulphate,Organic acids,Ceramic proppants,Chemical products,Chlorides,High-strength products,Organic salts,Granular products
End products
Ammonium sulfate,Urea formaldehyde resin granules,Zinc sulfate,Potassium chloride granules,Sodium chloride granules,Citric acid granules,Calcium chloride granules,Sodium acetate,Tartaric acid granules
Steps before
Purification,Emulsification,Grinding
Steps after
Screening,Milling,Recycling
Input ingredients
solutions,suspensions,slurry,melt,liquid feeds
Output ingredients
dust-free granulates,free flowing granulates,high density granulates,compact granulates,ceramic proppants,sulphate,chlorides,organic salts,organic acids
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Particle Growth Mechanism
Layering
Feed Material Type
Solutions,Suspensions,Slurries,Melts
Granulate Properties
Dust-free,High Density,Free Flowing
Drying Process
Continuous
Atomization Method
Nozzles
Feed Evaporation Start
Atomization
Product Layer Type
Fluidized
Granulate Discharge Mechanism
Rotary Valve
Particle Size Control
Screening,Milling
Second-stage Drying
Plug-flow Fluid Bed
Second-stage Cooling
Plug-flow Fluid Bed
Recycling Method
Cyclone and/or Bag Filter

Operating Characteristics


Working Mechanism
Spray fluidization with combined spray drying and fluid bed technology
Integrated Steps
Spray drying and fluidization
Particle Growth Mechanism
Layering during drying
Batch vs. Continuous Operation
Continuous
Automation Level
PLC / Automated
Cleaning Method
Manual / CIP
Granule Discharge System
Rotary valve and screening
Particle Size Control
Screening and recycling of oversized and undersized particles

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


End-use industry
Chemical / Ceramic / Organic Salts / Organic Acids

Physical Characteristics


Tank shape
Cylinder / Rectangular
Feed method
Atomized nozzles
Discharge method
Rotary valve

Custom Options


Control panel type
PLC-controlled
Integration possibilities
SCADA integration
