Dual filling solution for tetra top packages

Boost production flexibility by simultaneously filling different liquid products with precise volume adjustments while enhancing hygiene for extended shelf life in chilled applications.

Fills and Caps Liquid Beverages Efficiently

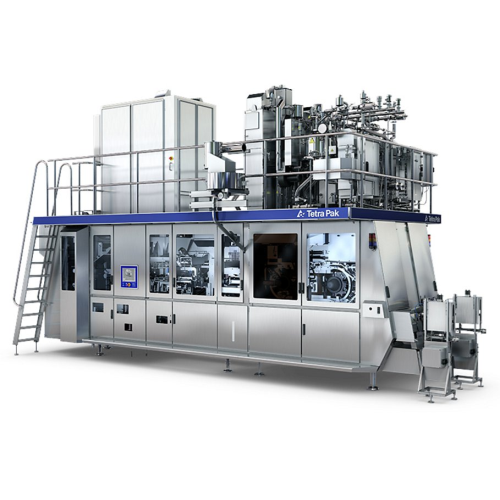

The Tetra Pak® TT/3 XH IC is an innovative dual filling machine designed for high-efficiency beverage production. With its ability to simultaneously fill and cap two different liquid products, this equipment is ideal for manufacturers of flavored milk drinks, plant-based beverages, juices, and nectars. Its standout feature is the dual-line architecture, allowing continuous production even during cleaning processes. The integrated capping unit saves up to 20% of floor space and ensures precision in cap application, enhancing operational efficiency.

Engineered for extended hygiene, the TT/3 XH IC employs state-of-the-art disinfection technologies, including H₂O₂, UV light, and a HEPA clean-air system, ideal for ensuring long shelf life and food safety. With package volumes ranging from 200 to 1000 ml, this machine provides rapid volume adjustments and the capability to rebuild for different package formats, offering unparalleled flexibility to adapt to market demands.

Automated and equipped with an intuitive Operator Interface, it ensures ease of management with remote monitoring and package line monitoring services, reducing operator time and complexity. Designed with operator safety in mind, it includes a large platform and compliant access features. The Tetra Pak® TT/3 XH IC is a robust solution tailored to meet the dynamic needs of modern beverage production environments.

Benefits

  • Maximizes production flexibility by filling two different products simultaneously.
  • Reduces operational costs with integrated space-saving capping unit.
  • Ensures long shelf life with advanced disinfection technologies.
  • Minimizes downtime with continuous operation during cleaning.
  • Facilitates rapid volume changes to adapt to market needs.

General


Applications
Plant-based beverages,Liquid dairy products,Still drinks,Juice,Nectars
End products
Flavored milk drinks,Orange juice,Apple nectar,Almond milk,Soy milk,Mango still drinks
Steps before
Product preparation,Ingredient mixing,Homogenization,Heat treatment
Steps after
Capping,Labeling,Carton packaging,Logistics and distribution
Input ingredients
liquid dairy products,plant-based liquids,juice,nectars,still drinks,polythene
Output ingredients
Tetra Top packages,chilled products,convenient opening caps,sealed and water-cooled lids
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Dual-line production capacity
Simultaneous
Changeover time
5 minutes
Package volume
200 – 1000 ml
Filling accuracy
Not specified
Hygiene system
H₂O₂,UV,HEPA
Integrated capping unit space saving
Up to 20%
Operator interface
Tetra Pak® Operator Panels
Remote supervision
Package Line Monitoring Service (PLMS)
Automation
Operator control panels,Line Controller 40
Production lines
Two separate production lines
Maximum package capacity per hour
Not specified

Operating Characteristics


Working Mechanism
Dual-line production
Integrated Steps
Filling and capping
CIP/SIP
CIP capable
Batch vs. Continuous Operation
Inline Continuous
Changeover Time
5 minutes
Cleaning Method
External Cleaning Unit
Automation Level
PLC-controlled
Energy Efficiency
Space and resource-saving design
Operator Interface
Touchscreen panels
Hygiene Management
HEPA,H₂O₂,UV light

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Carton

Physical Characteristics


Footprint
Saves up to 20% floor space
Dual-line architecture
Enables running of packages independently on both lines
Extended platform
Larger platform for operator safety
Injection moulding unit
World's fastest injection moulding unit
Staircase
For operator safety

Custom Options


Integration possibilities
Dual-line architecture
Control panel type
Touchscreen (Tetra Pak® Operator Panels)
Operating system
Windows 10
Platform size
Large platform
