Dry salt dosage system for curd cheese production

Streamline your cheese production with precise salt dosing, ensuring optimal texture and flavor consistency while integrating seamlessly into your existing processing line.

Accurately Doses and Mixes Salt in Cheese

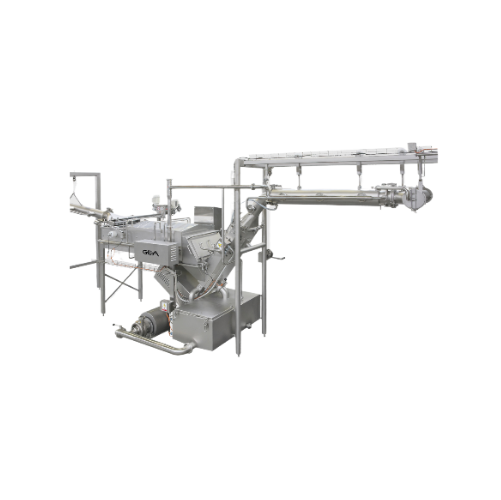

The Dry Salt Dosage System from GEA is tailored for cheese producers seeking precision in salt addition across a range of cheese products such as mozzarella and burrata. This system features a double truncated cone-shaped vat that rotates continuously to prevent salt clumping, combined with a heated external jacket. An integrated variable-speed auger system ensures precise salt application to the curd exiting the stretching machine, with adjustments based on real-time sensor feedback on pasta filata thickness. Constructed from AISI 316 stainless steel, it offers excellent corrosion resistance. The system supports continuous, automated operations, integrating seamlessly into existing production lines with PLC control for fine adjustment. Additionally, it features a CIP connection to streamline cleaning and maintenance, and servo-motor-driven augers for reliable, accurate salt distribution within a 0.1% dosing margin. This unit is a highly efficient choice for dairy processors focused on consistency and production efficiency.

Benefits

  • Ensures precise salt dosing, enhancing flavor consistency across cheese batches.
  • Maintains smooth operation with continuous rotation to prevent salt clumping.
  • Lowers maintenance demands through integrated CIP capabilities.
  • Reduces operational costs with energy-efficient servo-motor driven augers.
  • Provides robust durability and corrosion resistance with AISI 316 stainless steel construction.

General


Applications
Pasta filata cheese,Cheese,Dairy
End products
Burrata,Scamorza,Mozzarella,Halloumi,Provolone,String cheese
Steps before
Curd Stretching,Curd Cheese Processing,Curd Transfer
Steps after
Cheese Molding,Kneading,Salted Cheese Transfer
Input ingredients
dry salt,curd cheese,whey,cleaning solutions
Output ingredients
salted pasta filata cheese
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Tank capacity
150–300 kg
Accuracy
±0.1% salt dosing
Material
Stainless steel AISI 316
Auger system
Variable-speed
Drive system
Servo-motor
Operation
Automated adjustment
Heating mechanism
External jacket
Kneading unit
Counter-rotating augers

Operating Characteristics


Working mechanism
Double truncated cone-shaped vat
Integrated steps
Salt scooping,transferring,and mixing
Automation level
PLC-controlled
CIP/SIP
CIP compatible
Energy efficiency
Low operating costs
Batch vs. continuous operation
Continuous

Material Compatibility


Corrosive resistance (e.g. acids)
AISI 316 stainless steel
Cleanability
Designed for CIP (Cleaning-In-Place)
Abrasion resistance
High due to stainless steel construction
Biological compatibility
Non-reactive with food products
Density/particle size
Suitable for dry salt granules

Physical Characteristics


Tank Capacity
150-300 kg
Tank Shape
Double truncated cone
Material
Stainless steel AISI 316
Rotation Mechanism
Constant rotation
Heating Method
External jacket
Discharge Method
Variable-speed auger system
Mixing Mechanism
Rotating drum with counter-rotating augers
Paddle
Adjustable,Teflon-coated chute
Spooning System
Spoons to scoop salt

Custom Options


Tank Capacity
150-300 kg
Construction Material
Stainless Steel AISI 316
Automated Adjustment
PLC-controlled with sensor feedback
Integration Capabilities
CIP Plant Connection
Heating System
External Jacket
Variable-speed Auger System
Yes
