Dough chunkers for bakery production

Optimize dough processing by efficiently feeding and dividing dough portions, ensuring consistent size and weight for high-quality end products like bread, pizza crusts, and rolls.

Feeds and Portions Dough for Efficient Production

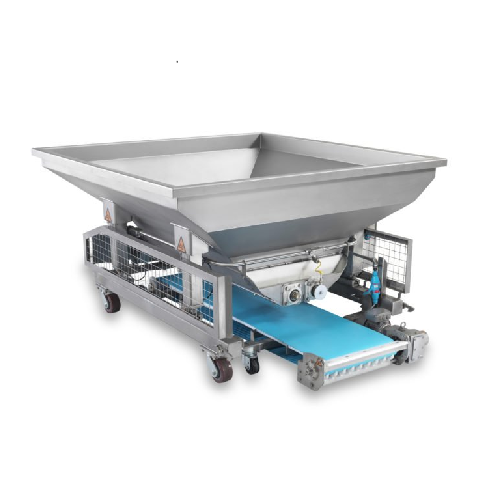

Shaffer’s Dough Chunkers seamlessly integrate into bakery and food processing lines, providing a robust solution for efficiently feeding and portioning dough into downstream equipment like dividers and formers. With models ranging from RDC612 to RDC3264, these systems are designed to handle various dough types, including sourdough, buns, and pizza crusts, with capacities exceeding 29,000 lb/hr. The heavy-duty stainless steel construction and variable frequency controls ensure compatibility with high-speed applications, while options like vertical conveyors and dough level sensors offer enhanced automation. Compliant with UL, cUL, and BISSC standards, these chunkers support both continuous and batch operations, with designs suited for easy wash-down, ensuring hygiene standards are maintained. Optional features like load cells and perimeter guarding enhance operational safety and precision, making them ideal for bakeries, pizza manufacturers, and pet food producers.

Benefits

  • Enhances production efficiency with over 29,000 lb/hr capacity.
  • Minimizes cleaning time with easy-to-sanitize design.
  • Integrates seamlessly with existing lines using variable frequency controls.
  • Improves safety and precision with optional load cells and perimeter guarding.
  • Complies with industry standards, ensuring regulatory adherence.

General


Applications
Buns,Bread,Pet food,Tortillas-flour,Pizza,Granola,Rolls,Sweet doughs,Health bars,Frozen dough
End products
Protein health bars,Soft flour tortillas,Sourdough bread,Kibble dog food,Italian style pizza crust,Chewy granola bars,Hamburger buns,Cinnamon rolls,Par-baked french bread,Dinner rolls
Steps before
Mixing,Dough Preparation
Steps after
Dough Dividing,Forming,Baking,Cooling,Packaging
Input ingredients
dough,flour,bagels,bread,buns,rolls,frozen dough,granola,health bars,pet food,pizza,sweet doughs,tortillas
Output ingredients
dough chunks,chunks of dough,processed dough
Market info
Shaffer is known for designing and manufacturing industrial mixing equipment, primarily for the baking industry, including dough mixers and processing systems. They are recognized for their expertise in creating customized solutions that enhance efficiency and meet specific customer needs.

Technical Specifications


Batch Capacity
Less than 600 lbs,600 to 1,600 lbs,More than 1,600 lbs
Production Rates
Over 29,000 lb/hr
Hopper Volume (cu ft)
660 – 2,750
Hopper Capacity (lb)
11,800 – 29,560
Maximum Production Rate (lb/hr)
11,800 – 29,560
Standard chunker cutter length
24″ with 2 HP drive,40″,53″ with HP drive,60″ with 5 HP drive
Drive Power
2 HP – 5 HP
Frame Construction
Heavy Duty Tubular Stainless Steel
Compliance
UL,cUL,BISSC,ANSI,USDA,CE
Control Type
Variable Frequency Controls

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
Cleaning method
CIP / Manual
Energy efficiency
Changeover time
CIP/SIP
CIP 121°C / SIP 135°C

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Automation Level
Variable Frequency Controls

Physical Characteristics


Discharge method
Removable Discharge Conveyor
Frame construction
Heavy Duty Tubular Stainless Steel
Hopper type
Stainless Steel Sloped Dough Hopper
Mobility
Mounted on Heavy Duty Casters
Customization
Vertical or Incline Dough Conveyor
Hopper volume
660 to 3,520 cu ft
Hopper capacity
1,180 to 3,080 lbs
Power requirements
2 HP to 5 HP drive
Production rate
Up to 29,560 lb/hr
Standard cutter length
24″,40″,53″,60″

Custom Options


Discharge Conveyor
Removable
Hopper Configuration
Sloped Dough Hopper
Production Rate
Over 29000 lb/hr
Traversing Systems
Manual or Automatic
Operator Controls
Integrated with Mixer
Frame Construction
Heavy Duty Tubular Stainless Steel
