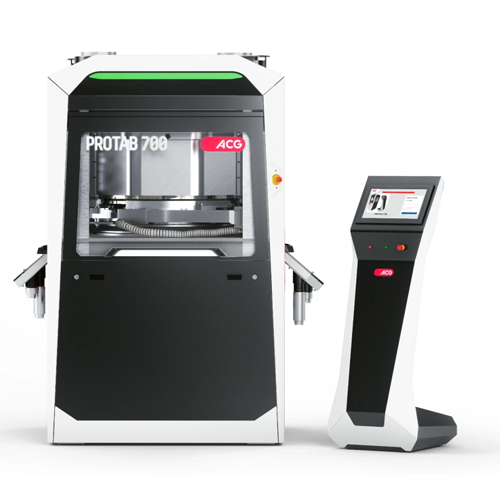

Double rotary press for high-volume tablet compression

Achieve high-speed, precision tablet compression with a machine that ensures optimized weight control and efficient rejection of defective units, enhancing productivity and quality in batch production.

Compresses Monolayer and Bilayer Tablets Efficiently

The PROTAB™ 700 from ACG is a state-of-the-art double rotary tablet compression machine designed for pharmaceutical and nutraceutical manufacturers facing large-scale production challenges. What sets it apart is its ability to compress both monolayer and bilayer tablets with precision, thanks to the InstAmend technology that immediately detects and corrects faulty punches, significantly minimizing process interruptions. This machine is adept at handling a variety of end-products, including paracetamol tablets and multivitamin supplements, with an output of up to 816,000 bilayer tablets per hour.

Furthermore, the PROTAB™ 700 features an interchangeable turret design, allowing for compression of different tablet sizes at varying speeds, and a servo-based automatic weight control system that ensures tablets of consistently precise weight. The toolless assembly design speeds up changeovers, reducing production downtime to just 60 minutes per batch. Designed for seamless integration into existing lines, this machine supports efficient operations with its sophisticated feeder design, effectively reducing formulation loss. Engineered for flexibility and efficiency, it meets stringent industry standards, facilitating compliance with regulatory requirements.

Benefits

  • Enhances production efficiency with quick fault detection and correction, minimizing downtime.
  • Offers flexible production with interchangeable turret design for various tablet sizes.
  • Ensures consistent tablet quality through precise automatic weight control.
  • Accelerates changeover time, reducing batch-to-batch transition to 60 minutes.
  • Increases yield with a sophisticated feeder design, minimizing formulation loss.

General


Applications
Nutraceuticals,Supplements,Pharmaceutical tablets
End products
Herbal extract tablets,Omega-3 softgels,Glucosamine tablets,Iron supplements,Probiotic capsules,Vitamin c supplements,Calcium tablets,Multivitamin tablets,Protein supplements,Paracetamol tablets
Steps before
Granulation,Mixing
Steps after
Coating,Packaging
Input ingredients
tablet powder,formulation
Output ingredients
monolayer tablets,bilayer tablets,high-quality tablets,precise weight tablets
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Punch type
DB / BB / BBB
Punch stations
51 / 63 / 79 / 85
Output Monolayer tablets
489,600 tablets/hr / 604,000 tablets/hr / 758,000 tablets/hr / 237,000 tablets/hr
Output Bilayer tablets
153,000 tablets/hr / 189,000 tablets/hr / 816,000 tablets/hr / 255,000 tablets/hr
Maximum tablet diameter
25 mm / 16 mm / 13 mm / 11 mm

Operating Characteristics


Working mechanism
Double-rotary tablet-compression
Integrated steps
Monolayer and bilayer tablet production
Automation level
Servo-based automatic weight control
Batch vs. continuous operation
Batch processing
Changeover time
60 minutes
Individual layer-sampling
Defective bilayer tablet rejection

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Turret design
Interchangeable
Changeover time
60 minutes

Custom Options


Control panel type
HMI with touchscreen interface
Integration possibilities
PLC / SCADA compatible
Interchangeable turret design
Allows for different tablet sizes
Retrofittable bilayer kit
For monolayer and bilayer production
Servo-based automatic weight control
High precision tablet production
Toolless design
Simplified changeover
