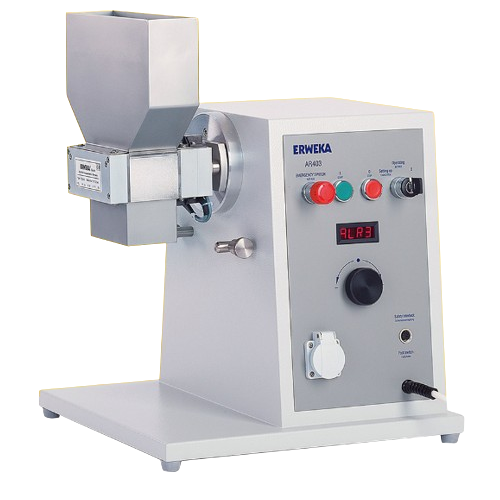

Double roll crusher for laboratory applications

Optimize material processing with a double roll crusher designed for precision grinding and crushing, ensuring finely tuned granules crucial for pharmaceutical and chemical mixing lines.

Efficiently Crushes and Grinds Pharmaceutical Materials

The Double Roll Crusher TG 2000 from ERWEKA GmbH is designed for effective material handling in pharmaceutical, chemical, and food industries. This machine features two driven stainless steel rollers equipped with teeth, enabling precise grinding and crushing by directing materials against braking combs. The TG 2000 is built for versatility, efficiently processing pharmaceutical powders, fine chemicals, nutraceuticals, and metal powders including paracetamol granules and vitamin C tablets. With a throughput capacity of 20 kg per hour, it suits both manual and continuous operations in pre-processing and processing departments. All contact surfaces are made of stainless steel, ensuring product integrity and resistance to corrosion. Compliance with industry standards is ensured, while the easy-to-access design allows for straightforward cleaning and maintenance. Additionally, the system offers customization options to meet specific operational needs, supported by comprehensive engineering support.

Benefits

  • Enhances efficiency by processing up to 20 kg per hour, minimizing bottlenecks in production.
  • Ensures product purity with stainless steel contact surfaces, guarding against contamination.
  • Reduces operational downtime with easy access for cleaning and maintenance.
  • Adapts to specific production requirements with customizable configurations.
  • Complies with industry standards, ensuring safe and reliable operation.

General


Applications
Metal powders,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Minerals
End products
Paracetamol granules,Zinc oxide powder,Vitamin c tablets,Iron powder,Whey protein powder
Steps before
Granulating,Mixing,Filling,Dosing
Steps after
Sterilization,Polishing,Tablet Pressing
Input ingredients
raw materials
Output ingredients
crushed material,processed material
Market info
ERWEKA is renowned for manufacturing high-quality pharmaceutical testing equipment, including dissolution testers, tablet hardness testers, and other analytical instruments, known for their precision and reliability in laboratory testing environments.

Technical Specifications


Roller Material
Stainless Steel
Roller Length
70 mm
Grinding Capacity
20 kg/hour
Teeth Configuration
Equipped with teeth
Safety Features
Emergency Stop

Operating Characteristics


Working mechanism
Double roll crushing
Integrated steps
Grinding with braking combs
Safety features
Emergency stop
Material handling direction
Inside to outside
Roller material
Stainless steel
Grinding action
Teeth-equipped rollers
Capacity
20 kg/hour

Material Compatibility


Corrosive resistance (e.g. acids)
High (stainless steel construction)
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Roller length
70 mm
Material of rollers
Stainless steel
Grinding action
Teeth on rollers
Footprint
Compact

Custom Options


Roller length
70 mm
