Dissolution profiling system for biorelevant media volumes

Optimize your lab’s efficiency by integrating this dissolution monitoring system, designed for small volume testing and rapid data collection, directly at your benchtop.

Monitors Dissolution with UV Fiber Optic Probes

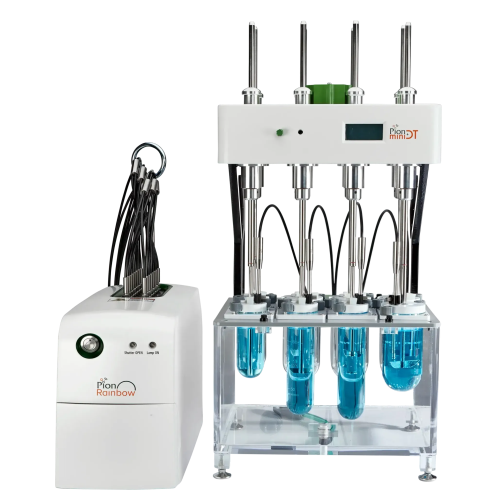

The miniDISS Profiler with the Rainbow R6 configuration from Pion is a cutting-edge UV monitoring system designed specifically for pharmaceutical and biotechnology applications. This equipment is exceptional in providing flexibility for small-volume dissolution testing, crucial for the development of oral formulations and high-potency drugs. Coupled with its dip-style fiber optic probes, the system allows for dynamic UV spectral data collection as frequently as every two seconds, ensuring precise monitoring and optimization of dissolution processes. Accommodating biorelevant media volumes of 100-250 mL, it integrates seamlessly into your laboratory setup, eliminating the need for time-consuming swaps and revalidations with its eight-position stirring system and interchangeable vessel sizes. Additionally, the miniDISS Profiler operates within standard industry parameters, using Rainbow technology to support efficient benchmarking, R&D advancements, and compliance with pharmaceutical standards.

Benefits

  • Enhances testing efficiency by eliminating swap out and revalidation requirements.
  • Provides rapid, accurate data collection with UV spectral readings every two seconds.
  • Supports small-scale operations, reducing material usage and experimental waste.
  • Facilitates drug development for pediatric and high-potency formulations.
  • Integrates seamlessly into laboratory workflows, saving setup and operation time.

General


Applications
Pediatric drug products,Oral formulations,High potency drug products,Pharmaceutical tablets
End products
Amoxicillin suspension,Ibuprofen tablets,Children's paracetamol syrup,Oncology medication capsules
Steps before
Formulation development,Dissolution preparation,Media preparation
Steps after
Data analysis,Dissolution testing,Quality control
Input ingredients
biorelevant media volumes,high-potency API,low concentrations,oral dosage forms,pediatric drug products,sink conditions,non-sink conditions
Output ingredients
UV spectra data,dissolution data,formulation development results
Market info

Technical Specifications


Volume range
100-250 mL
Measurement range
200 - 720 nm UV Spectra
Data collection speed
Every two seconds
Stirring positions
Eight-position system
Interchangeable vessel sizes
100 ml,150 ml,200 ml,250 ml
Path length tips
Interchangeable

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Automatic
Changeover time
Quick with low revalidation
Cleaning method
Manual
CIP/SIP
Not Applicable

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


High Potency Testing
Yes
Formulation Development
Oral Dosage

Physical Characteristics


Compact footprint
Yes
Vessel size
100 ml,150 ml,200 ml,250 ml
Stirring system
Eight-position

Custom Options


Stirring System
Eight-position with interchangeable vessels
