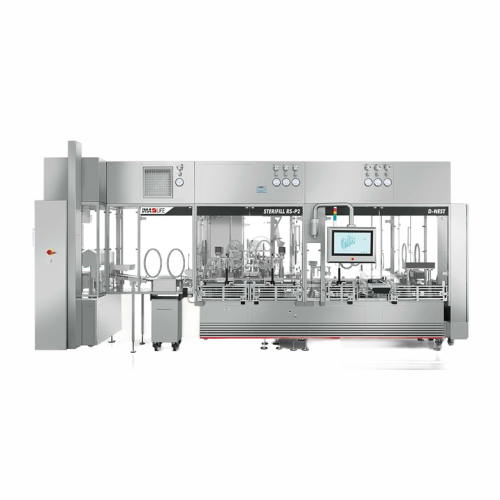

Denesting system for Rtu syringes and vials

Need efficient denesting of sensitive pharmaceutical containers? Streamline your production line and ensure precise handling of pre-filled syringes and vials, facilitating smooth transitions to downstream operations like inspection and capping.

Denests and Positions RTU Syringes and Vials

The D-NEST from IMA Life is an automatic denesting machine engineered to improve the handling and transfer of RTU syringes and vials within pharmaceutical production lines. This compact machine excels in space efficiency, making it suitable for low to medium-speed operations where floor space is a premium. It effectively removes and positions filled and stoppered syringes or vials, ensuring precise alignment for downstream applications such as visual inspections, assembly, labeling, and capping.

Integrated with user-friendly Siemens touch screen interfaces, the D-NEST facilitates easy control and monitoring, enhancing operation efficiency and reducing operator strain. Constructed with stainless steel and FDA-approved inert plastic, it assures durability and compliance with stringent hygiene standards. Its design allows for simple dismantling of moving parts, ensuring quick and safe cleaning and maintenance procedures.

Pharmaceutical manufacturers can seamlessly connect the D-NEST with existing syringe/vial processing lines, providing automatic transition to further processing stages. This machine meets GMP standards, making it a reliable choice for biologic drugs, sterile vaccines, insulin syringes, and lyophilized vial production.

Benefits

  • Enhances production line efficiency by ensuring precise denesting and placement of RTU syringes and vials.
  • Minimizes operational footprint with its compact design, ideal for facilities with limited space.
  • Reduces cleaning and maintenance time with easily dismantled components.
  • Ensures compliance with GMP standards, supporting stringent pharmaceutical production requirements.
  • Lowers operator workload with an intuitive Siemens touch screen interface, simplifying machine control.

General


Applications
Aseptic liquid,Pharmaceuticals,Injectable products,Vials,Biopharmaceuticals,Ready-to-use (rtu) syringes
End products
Insulin syringes,Lyophilized vials,Pre-filled syringes,Single-use injectable vials,Sterile vaccine vials,Pre-stoppered rtu vials,Biologic drug syringes
Steps before
Filling,Plugging,Stoppering
Steps after
Visual inspection,Syringe assembly,Labelling,Vial capping,Automatic vial loading,Freeze drying
Input ingredients
RTU syringes,RTU vials,filled syringes,plugged syringes,stoppered syringes,filled vials,stoppered vials
Output ingredients
denested syringes,denested vials,syringes for downstream processing,vials for downstream processing,syringes for visual inspection,vials for visual inspection,syringes for assembly,vials for assembly,syringes for labelling,vials for labelling,vials for capping,vials for lyo products
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Automation
High degree of automation
Material of Contact Parts
Stainless steel or FDA-approved inert plastic
User Interface
User-friendly HMI with Siemens touch screen
Design
Ergonomic and compact
Operation Speed
Low-medium speed requirements

Operating Characteristics


Automation level
High/PLC-controlled
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick
Cleaning method
Easy dismantling/CIP-friendly
Energy efficiency
Low energy consumption
Upstream/Downstream integration
Seamless integration with assembly and inspection units
Space efficiency
Compact footprint

Material Compatibility


Contact parts material
Stainless steel,FDA-approved inert plastic materials

Product type Characteristics


Container size and shape
Syringes,Vials
Filling purpose
Denesting for RTU syringes and vials
Denesting application
Syringe/Vial before downstream processing
Production speed requirement
Low-medium speed
Automation level application
Automatic
Downstream connection
Visual inspection,Syringe assembly,Labelling,Vial capping
Lyo Product Handling
Pre-stoppered vials
Material cleanability
Stainless steel,FDA-approved plastic
User Interface
Siemens touch screen

Physical Characteristics


Machine footprint
Compact design
Contact parts material
Stainless steel or FDA-approved inert plastic
Control panel type
User-friendly HMI with Siemens touch screen
Discharge method
Single track to downstream equipment

Custom Options


Footprint
Compact
Control panel type
Siemens touch screen
