Degassing and mixing unit for beverage production

Ensure precise beverage formulation and maintain high quality standards with a compact mixing unit that excels in degassing and syrup ratio accuracy, crucial for seamless flavor integration in diverse product lines.

Degasses and Mixes Multi-Component Beverages

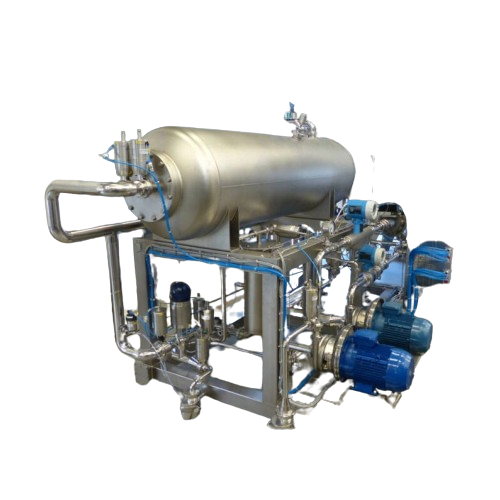

The XBlend multi-component skid-mounted mixing unit from SIPA is a fully automatic solution for precision beverage production. It uniquely employs inline proportional dosing to ensure optimal mixing quality, accuracy, and repeatability. Designed for continuous operations, the XBlend is particularly suited for industries focused on still beverages, carbonated drinks, juices, and more, handling products like flavored milk, vodka, and olive oil. Its degassing and mixing capabilities work on a highly hygienic design, enabled by a vacuum deaeration system and a centrifugal pump that maintains accurate flow control. With capacities of up to 66,000 liters per hour, the XBlend integrates seamlessly with existing production lines and fillers, harnessing a compact horizontal tank arrangement to facilitate easy installation and logistics. The system supports low residual oxygen levels, essential for maintaining product integrity, and its construction in AISI316 stainless steel ensures durability and hygiene. The XBlend offers full PLC control and is capable of handling up to ten components, making it versatile for a broad range of food and beverage applications. Additionally, its sanitation capabilities meet stringent standards, allowing operation at temperatures up to 95°C, while its modular design simplifies maintenance and future upgrades.

Benefits

  • Ensures product consistency and quality with precise mixing accuracy.
  • Minimizes syrup and product waste through efficient start-stop operation.
  • Facilitates rapid setup and integration with compact skid-mounted design.
  • Maintains high hygiene standards with stainless steel construction and high-temperature sanitation.
  • Supports diverse formulation needs with flexible component handling capabilities.

General


Applications
Carbonated beverages,Isotonic drinks,Milk,Non-food products,Alcoholic beverages,Food products,Juice,Still beverages,Tea,Dairy products,Edible oil
End products
Olive oil,Energy bars,Skimmed milk,Flavored milk,Sports drinks,Ready-to-drink tea,Salad dressings,Household cleaning solutions,Still water,Beer,Soft drinks,Fruit juices,Vodka
Steps before
Water purification,Syrup preparation,Ingredient dosing
Steps after
Filling,Packaging,Capping
Input ingredients
water,syrup,components for still beverages,deaerated water
Output ingredients
mixed still beverages,beverage with low oxygen content
Market info

Technical Specifications


Capacity
12,000 - 66,000 l/h
Mixing accuracy
± 0.03 °Bx
Residual Oxygen in final beverage
< 0.5 ppm
Automation
Fully automatic,PLC-controlled
Outflow rangeability
1
Mixing ratio
1
Deaeration type
High vacuum principle
Sanitization temperature
Up to 95°C
Material
1.4401 stainless steel (AISI316)
Control panel
15-inch touch-screen operator panel
Frequency-controlled pumps
Yes

Operating Characteristics


Working mechanism
Inline proportional dosing
Integrated steps
Degassing and mixing
Automation level
Fully automatic PLC controlled
CIP/SIP
Up to 95°C sanitation
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact,easily packable
Tank arrangement
Horizontal
Discharge method
Piping made of stainless steel (AISI316)
Control panel type
15-inch touch-screen
System configuration
Mounted on skid

Custom Options


Control panel type
15-inch touch-screen operator control panel
Integration possibilities
Xfill version available for direct integration with the filler
Compact footprint
Compact,skid-mounted design
Scalability
Expandable to match specific production requirements up to 10 components
