D-limonene extraction system for citrus processing
Enhance your citrus processing capabilities by efficiently extracting and recovering d-Limonene and other valuable citrus oils, maximizing yield and reducing waste in your production line.
Extracts and Recovers Terpenes from Citrus Emulsions

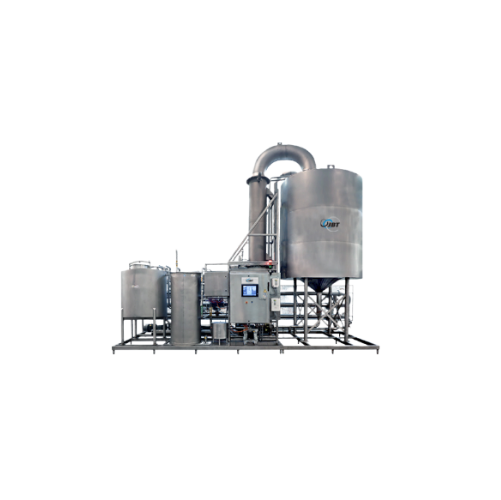

The READYGo d-LIMONENE from JBT is a terpene recovery system designed for chemical and industrial applications, particularly in citrus processing. This system efficiently extracts and recovers terpenes, maximizing d-Limonene yield from oil-bearing emulsions. Operating on a multi-stage extraction process, it achieves higher terpene recovery than traditional methods, handling up to 100 GPM of emulsion with a capacity for 14 extractors. Seamlessly integrating into automated operations, it features a self-contained design with variable speed drives and solenoid valves, facilitating straightforward installation and operation. The system offers energy efficiency by optimizing motor control and is constructed with durable materials suitable for processing citrus oils and juices.
Benefits
- Enhances revenue by recovering up to 85% of terpenes from feed streams.
- Cuts installation costs with an integrated, self-contained system.
- Boosts production efficiency by processing up to 100 GPM of emulsion.
- Minimizes manual intervention through fully automated, continuous operation.
- Increases product quality by producing a clean d-Limonene stream for various applications.
- Applications
- Beverages,Fruits,Citrus processing,Chemical,Nuts,Industrial,Juices,Essential oils
- End products
- Lemonade,Lime oil,Nut extracts,Citrus juice concentrates,Orange essential oil,D-limonene,Natural fragrances,Citrus-based cleaning agents,Industrial solvents,Citrus-flavored beverages,Lemon oil,Citrus oil,Fruit concentrates
- Steps before
- Extraction,Emulsification,Cold-pressing
- Steps after
- Citrus Oil Recovery,Terpene Collection,Integration into Automated Systems
- Input ingredients
- oil-bearing emulsion,citrus fruit
- Output ingredients
- d-Limonene stream,terpenes
- Market info
- JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.
- Recovery Rate
- 70% from fruit,85% from feed stream
- Capacity
- Up to 100 GPM (23 m³/hr)
- Capacity
- Up to 14 extractors
- Emulsion Type
- Oil-bearing emulsion
- Fruit Compatibility
- All types of citrus fruit
- Automation
- Fully automated plant integration
- Oil Concentration Method
- Less water,more concentrated emulsion
- Process Model
- READYGo d-LIMONENE 33
- Specific Model Capacity
- 33 GPM (7.5 m³/hr),8 extractors
- Integration capability
- Fully automated plant
- Automation level
- Self-contained system with variable speed drives and solenoid valves
- Terpene recovery rate
- 70% from fruit,85% from feed stream
- Installation simplicity
- Equipped with control,power conditioning
- Oil-bearing emulsion handling
- Up to 100 GPM (23 m³/hr)
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- System capacity
- Up to 100 GPM (23 m³/hr)
- Number of extractors
- Up to 14 extractors
- Model capacity
- READYGo d-LIMONENE 33
- Discharge method
- Integrated into fully automated plant
- Control system
- Equipped with necessary controls,motor starters,power conditioning,variable speed drives,and solenoid valves
- Product stream type
- Clean d-Limonene stream
- Control panel type
- Equipped with necessary controls
- Integration capability
- Fully automated plant integration
- Variety of extractors capacity
- Up to 14 extractors
- Motor type
- Equipped with motor starters
- Speed control
- Variable speed drives
- Valves
- Solenoid valves included
