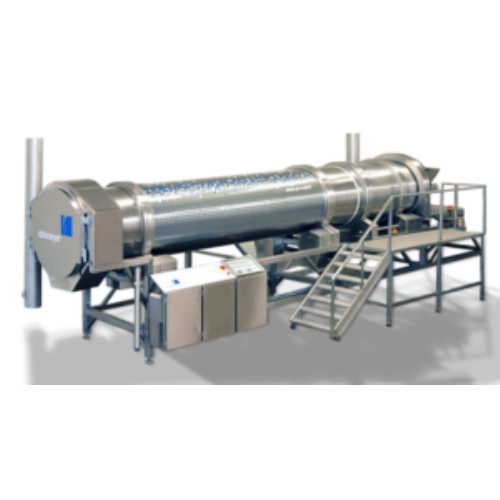

Cryogenic rotary drum freezer for Iqf foodstuffs

Optimize your freezing process with a rotary drum freezer that ensures rapid individual quick freezing (IQF) while preventing clumping, ideal for preserving the quality and texture of delicate foodstuffs like fish, pasta, and vegetables.

Freezes and Mixes IQF Foodstuffs Efficiently

The CryoRoll for IQF Foodstuffs from Dohmeyer is a cryogenic rotary drum freezer designed specifically for high-quality individual quick freezing of various foodstuffs. Utilizing a rotating cylindrical drum, it facilitates continuous mixing and cooling, preventing clumping and ensuring uniform freezing. This innovative equipment supports the food industry by processing items such as fish, meat, vegetables, and pasta into high-standard IQF products like breadcrumbs, chicken nuggets, and vegetable pellets. The unit allows for the use of both liquid nitrogen and liquid carbon dioxide as cooling agents, providing flexibility depending on your specific production needs.

Dohmeyer’s CryoRoll features a unique double drum design for optimal freezing results, with a short, fast-turning drum followed by a longer, slower one to ensure surface and in-depth freezing. This configuration enhances the freezing quality for products requiring different freeze durations. The freezer can integrate easily into existing production lines thanks to automation options, such as PLC controls for seamless operation and monitoring. It is engineered for efficiency, with options for various inclination angles and rotating speeds to suit bespoke processing requirements.

Additional features include exhaust fans for residual gas extraction and optional non-adhesive coatings for the inner drum when handling sticky or wet products. Its compact design offers space savings compared to traditional systems, while custom options allow adaptation to your specific production environment. Ideal for food manufacturers and processing companies aiming to enhance their frozen food offerings, the CryoRoll stands out for its flexibility and effectiveness in large-scale operations.

Benefits

  • Increases production efficiency with continuous mixing and clumping prevention.
  • Enhances product quality with uniform, high-standard IQF freezing.
  • Offers flexibility with dual cooling options, reducing operational constraints.
  • Saves space with a compact design ideal for constrained production areas.
  • Customizable settings ensure optimal performance tailored to your specific processes.

General


Applications
Iqf foodstuffs,Cubes,Precooked dishes,Pasta,Meat,Granules,Crumbs,Vegetables,Fish
End products
Chicken nuggets,Cheese cubes,Ready-made lasagna,Diced carrots,Breaded fish fillets,Vegetable pellets,Frozen berry mixes,Breadcrumbs,Ravioli
Steps before
Product Infeed,Buffering,Conveying
Steps after
Packing,Storage
Input ingredients
free rolling products,granules,crumbs,cubes,fish,meat,pasta,vegetables,precooked dishes,wet products,sticky products
Output ingredients
IQF frozen free rolling products,IQF frozen granules,IQF frozen crumbs,IQF frozen cubes,IQF frozen fish,IQF frozen meat,IQF frozen pasta,IQF frozen vegetables,IQF frozen precooked dishes
Market info
Dohmeyer is renowned for manufacturing advanced cryogenic equipment, specializing in ultra-low temperature applications for various industries, including pharmaceuticals and food processing. They are recognized for their innovation, quality, and customer-focused engineered-to-order solutions.

Technical Specifications


Cooling medium
Liquid nitrogen (LIN) / Liquid carbon dioxide (LCO2)
Continuous operation
Yes
Drum design
Single / Double drum
Inclination
Customizable
Rotating speed
Customizable
Paddle design
Customizable
Drum size
Customizable
Exhaust fan system
Yes
Non-adhesive coating
PTFE (optional)
Space requirement
Compact design

Operating Characteristics


Working mechanism
Rotary drum with sloping cylindrical design
Integrated steps
Cooling and mixing
Batch vs continuous operation
Inline Continuous
Cooling medium usage
Liquid nitrogen (LIN) / Liquid carbon dioxide (LCO2)
Product infeed
Continuous input with buffer hoppers and supply conveyors
Automation level
Customizable to specific needs
Cleaning method
Non-adhesive coating (e.g.,PTFE) when freezing wet or sticky products
Drum design
Unique double drum design

Material Compatibility


Biological compatibility
Food-grade materials
Corrosive resistance (e.g. acids)
Stainless steel construction
Cleanability
PTFE non-adhesive coating
Abrasion resistance
Durable rotary drum materials

Physical Characteristics


Machine footprint
Compact design
Drum shape
Sloping cylindrical
Drum size
Variable
Feed method
Continuous input
Discharge method
Continuous output
Double drum design
Optional

Custom Options


Inclination
Adjustable
Rotating speed
Variable
Baffles
Customizable
Compact footprint
Space-efficient
Double drum design
Available
Paddle design
Customizable
