Cryloc rotary screens for grain processing
Efficiently sort and separate fine particles with high precision to enhance product quality in high-speed, continuous processing environments.
Separates and Screens Raw Materials Efficiently

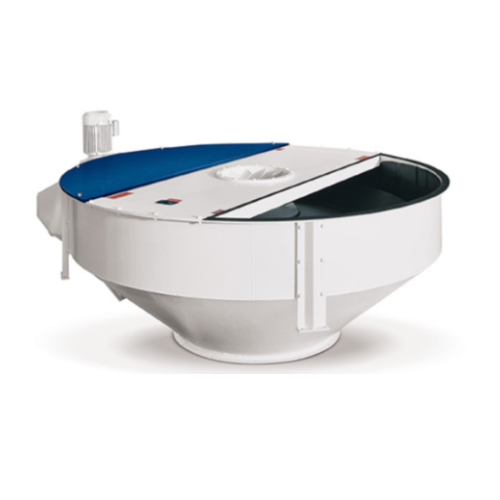

The Cryloc Rotary Screens from Ottevanger Milling Engineers provide a robust solution for efficient particle separation and screening in grain and feed processing. Housed in a cylindrical structure, these rotary screens are equipped with one or two specially formed screens to separate fine particles effectively. Ideal for processing raw materials, pellets, and crumbs, the Cryloc Rotary Screens ensure less than 1% fines in the final product. With a capacity range from 20 to 180 tons per hour and optional single or double screen decks, these screens adapt seamlessly to various production requirements. The electro-pneumatic operated valve between the screens and position feedback sensors allow precise control over processing. Built for continuous and high-speed operations, these screens are certified for ATEX zone 21/22, ensuring safety in explosive environments. The automatic cleaning feature with compressed air maintains performance by preventing blockages, and Ottevanger offers customization options to meet specific production needs.
Benefits
- Ensures high purity by reducing fines to less than 1% in final products.
- Accommodates varied production needs with capacities ranging from 20 to 180 t/h.
- Enhances safety with certification for ATEX zone 21/22 explosive environments.
- Minimizes maintenance downtime with automatic compressed air cleaning system.
- Optimizes production control with electro-pneumatic valve and position feedback sensors.
- Applications
- Raw materials,Extrudates,Pet food,Pellets,Dry cereal,Crumbs,Grain,Expandates,Aqua feed,Bulk processing,Compound feed
- End products
- Oatmeal,Barley malt,Soy pellets,Wheat flour,Shrimp feed,Dog food,Corn grits,Cat food,Fish food flakes,Animal feed pellets,Pet kibble,Poultry feed,Fish meal,Crumbled feed,Livestock feed
- Steps before
- Pre-cleaning,Grinding
- Steps after
- Crumbler processing,Packing
- Input ingredients
- raw materials prior to grinding,pellets,crumbs,extrudates,expandates
- Output ingredients
- fine particles,sifted product
- Market info
- Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.
- Capacity
- 20 to 180 t/h
- Screen Decks
- Single / Double
- Drive
- Single / Double (contra rotation)
- Automatic Cleaning
- Compressed Air
- Automation
- Electro-pneumatic valve with position sensors
- Maximum Pellet Diameter
- 12 mm
- Compact Design
- Yes
- Vibration Free Operation
- Yes
- ATEX Compliance
- Zone 21/22
- Automation level
- Electro-pneumatic
- Screen cleaning method
- Automatic with compressed air
- Batch vs. continuous operation
- Continuous
- Control system
- Process control with sensors
- Screen deck operation
- Double screen deck
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Suitable for
- Raw materials prior to grinding,Pellets,and crumbs
- ATEX certification
- Zone 21/22
- Safety Standards
- Electropneumatic compliance
- Compact design
- Yes
- Electro-pneumatic operated valve
- Yes
- Control panel type
- Electro-pneumatic operated valve
- Drive type
- Single drive / Double drive (contra rotation)
- Screen deck configuration
- Single screen deck / Double screen deck
- Cleaning method
- Automatic cleaning with compressed air
