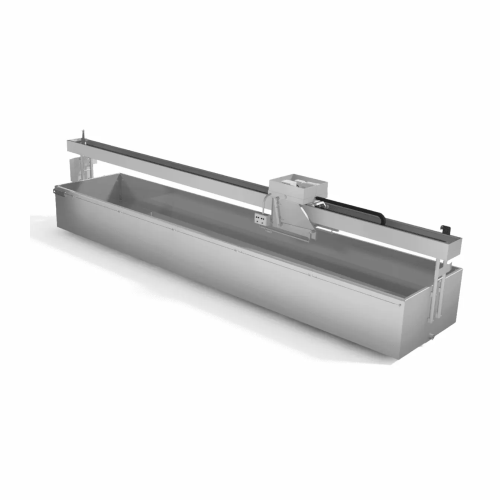

Cottage cheese vat for efficient curds production

Maximize cheese yield while minimizing curd damage with this advanced vat, designed for optimal curd suspension and gentle agitation, ensuring high-quality cottage cheese production.

Suspends Curds and Separates Whey

The SVC Cottage Cheese Production Vat from RELCO® is engineered for the complexities of cottage cheese production, ensuring gentle curd handling and maximizing yield. Featuring the exclusive Verti-Stir Sanitary Agitation System, it provides vertical movement that maintains curd suspension during processing. Suitable for various dairy operations, including low-fat and creamed cottage cheese production, this vat supports both batch and continuous modes, optimizing throughput with its capacities of up to 6,000 gallons. Constructed with 12-gauge 304 stainless steel, it combines strength and corrosion resistance. Integration into existing systems is seamless, with PLC and HMI controls facilitating automated operations. Optional features such as internal spray heating, whey recirculation, and tubular heat exchangers enhance versatility. Compliant with 3A standards and USDA guidelines, it ensures hygiene and safety in dairy environments. Low-maintenance design elements such as sealed bearings extend the equipment’s lifespan, while options for customization allow fine-tuning to specific operational requirements.

Benefits

  • Enhances product yield through gentle curd handling and minimal damage.
  • Reduces maintenance costs and extends lifespan with sealed, grease-free bearings.
  • Facilitates seamless system integration with full PLC and HMI automation capabilities.
  • Ensures compliance with stringent hygiene standards, meeting 3A and USDA guidelines.
  • Offers versatile processing with optional features like whey recirculation and heat exchange.

General


Applications
Cheese varieties,Dairy products,Cottage cheese
End products
Dry curd cottage cheese,Small curd cottage cheese,Large curd cottage cheese,Creamed cottage cheese,Low-fat cottage cheese
Steps before
Milk Preparation,Pasteurization,Coagulation,Milk Stirring
Steps after
Curd Washing,Whey Drainage,Curd Cutting,Creaming,Curd Packaging
Input ingredients
milk,cream
Output ingredients
cottage cheese,whey
Market info
Kovalus Separation is known for manufacturing industrial engineered-to-order (ETO) separation equipment, specializing in tailored solutions for complex filtration and separation needs, with a strong reputation for innovation, quality, and reliability in various industries.

Technical Specifications


Capacity
up to 6,000 gallons
Material
12-gauge 304 steel
Agitation System
Verti-Stir Sanitary Agitation System
Automation
On-board PLC,HMI
Operator Control
Dual operator pendants with sealed-touch buttons
Jacket Construction
Steel-clad sides and ends
Liner Material
12-gauge stainless steel
Travel Motor Control
Encoder technology
Bearing Type
Sealed,stainless
POD Whey Strainer
10-inch diameter
Motor Type
White epoxy painted,wash-down duty

Operating Characteristics


Working mechanism
Verti-Stir elliptical motion
Integrated steps
Agitation,straining,and curd suspension
CIP/SIP
CIP-compatible
Batch vs. continuous operation
Batch
Automation level
PLC-controlled
Changeover time
Efficient due to touch-control and automation
Cleaning method
Manual/CIP

Material Compatibility


Cleanability
Stainless steel construction allows for easy cleaning
Corrosive resistance
Stainless steel offers resistance to corrosive dairy environments
Biological compatibility
Safe for use with dairy products
Abrasion resistance
304 steel-clad construction ensures durability

Product type Characteristics


Curd Suspension Capability
Gentle vertical movement

Physical Characteristics


Capacity
Up to 6,000 gallons
Material composition
12-gauge 304 steel-clad sides and ends,12-gauge stainless steel liner
Agitation System
Verti-Stir Sanitary Agitation System
Whey strainer diameter
10-inch

Custom Options


Whey strainer
Optional removable
