Cooking and stretching solution for pasta filata cheese

Streamline your cheese production with precise cooking and stretching, ensuring optimal texture and quality for mozzarella and other pasta filata cheeses with high-capacity continuous operation.

Cooks and Stretches Pasta Filata Cheeses

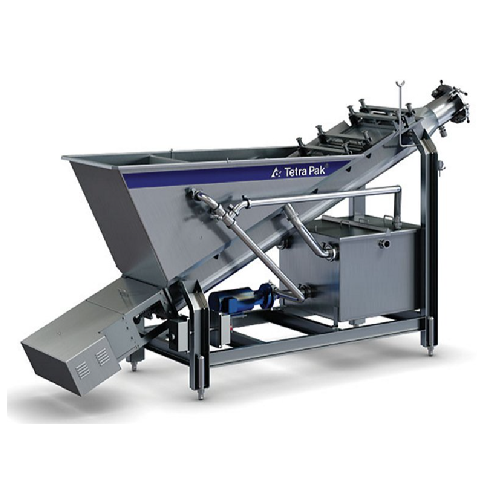

The Tetra Pak® Cooker Stretcher DAW 2/6 is a state-of-the-art solution for the precise cooking and stretching of pasta filata cheeses, such as mozzarella, provolone, and pizza cheese. Equipped with dual overlapped augers, it ensures thorough mixing and stretching by leveraging the natural rollback effect of the cheese. With a capacity of 3.6 tons per hour, it is ideal for high-volume production environments. The equipment features a dimple-patterned auger body, reducing cheese adhesion and easing cleaning processes by eliminating the need for coatings. Its dual heat exchange system maintains product quality by minimizing protein denaturation while optimizing energy use. Automated water level management contributes to operational efficiency, and the optional cyclone curd collector supports long-distance pneumatic conveying. Integration into existing production lines is seamless, with automated and continuous operation suitable for the food, dairy, and cheese industries.

Benefits

  • Enhances cheese consistency and quality through optimized mixing and stretching processes.
  • Increases production capacity with a throughput of 3.6 tons per hour, accommodating high-demand operations.
  • Reduces cleaning time and maintenance costs with non-stick dimpled auger surfaces.
  • Minimizes energy consumption with a dual heat exchange system, preserving product quality.
  • Supports efficient long-distance curd conveying, reducing the need for multiple handling systems.

General


Applications
Mozzarella,Pizza cheese,Provolone,Pasta filata cheeses
End products
Burrata,Caciocavallo,Gouda-style pasta filata,Sfogliatella,Bocconcini,String cheese
Steps before
Curd Formation,Curd Cooling
Steps after
Moulding,Cooling,Packaging
Input ingredients
pasta filata curd,fresh water
Output ingredients
mozzarella cheese,provolone cheese,pizza cheese,fat recovery
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
3.6 tons/hr (or 8000 lbs/hr)
Mixing Type
Dual overlapped augers
Non-stick Effect
Dimple pattern
Water addition rate
2 litres/minute
Heat Exchange System
Dual heat exchange system
Curd Conveying Method
Cyclone curd collector

Operating Characteristics


Cooking and stretching method
Dual overlapped augers
Curve type
Pasta filata style
Capacity
3.6 tons/hr (or 8000 lbs/hr)
Automation level
Automatic water fill
Cleaning method
Minimal maintenance

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Pasta filata cheeses (e.g.,mozzarella,provolone,pizza cheese)

Physical Characteristics


Compact footprint
Compact,space-saving design
Control panel type
Automated control with sensors
Discharge method
Dual augers for thorough discharge
Tank shape and size
Optimized for pasta filata stretching
Feed method
Automatic water fill system

Custom Options


Control panel type
PLC-controlled
Dual auger configuration
Overlapped
Cyclone curd collector
Optional
Customization of water level
Automatic sensor-controlled
Compact design
Space-saving
