Continuous pneumatic silo air filtering system

Ensure clean and efficient pneumatically conveyed materials by integrating a solution that continuously filters silo air, maintaining optimal conditions for sensitive production processes and preventing material contamination.

Filters and De-dusts Pneumatic Conveying Systems

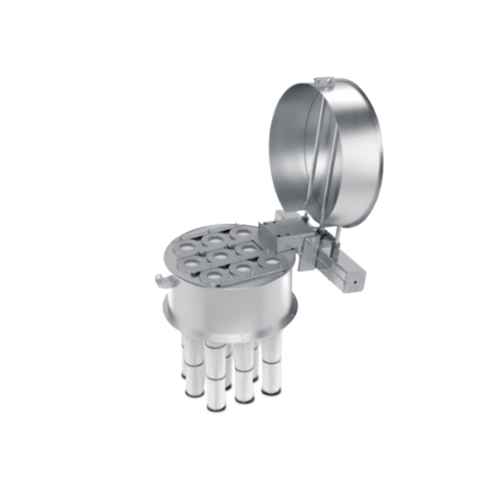

The AE Filter ZSD from Zeppelin Systems is a fully automatic ventilation filter designed for seamless integration into pneumatic conveying systems. Its cylindrical 1.4301 stainless steel housing, with a folding filter head and diaphragm valves, provides efficient de-dusting and pressure regulation, optimized for the plastics, rubber, chemical, and food industries. This filter accommodates a range of materials, including anti-static polyester fleece and PTFE-coated anti-static PE fleece, which can be selected based on product fineness and dust type. Operating within a temperature range of -20 to +60°C and pressure up to +0.1 bar(g), it ensures robust performance in demanding environments. The AE Filter ZSD features automatic de-dusting via purified, de-oiled air compressed to 6 bar, enhancing dust removal efficiency while maintaining environmental standards. Customers can also opt for explosion-protected versions, electronic master controllers, and additional silencing for further customization. Designed for durability and safety, this equipment meets ATEX 2014/34/EU compliance and offers soundproofing and pressure shock resistance up to 1.0 bar(g). Experience low-maintenance operation with easy-to-remove filter cartridges on the clean gas side, ensuring minimal downtime and continued high performance across various production lines handling polyethene pellets, rubber granules, tire compounds, confectionery coatings, and more.

Benefits

  • Ensures process stability with continuous automated operation, minimizing manual intervention.
  • Enhances air quality and product purity through effective de-dusting with high-efficiency filter materials.
  • Customizable to specific production needs with options for explosion protection and electronic controls.
  • Operates reliably under varying conditions with a robust design resistant to pressure shocks.
  • Reduces maintenance time and costs with easy-access filter cartridge replacement.

General


Applications
Food industry,Chemical industry,Plastics,Rubber and tire industry
End products
Polyethylene pellets,Instant soup mix,Tire compounds,Powdered spices,Confectionery coatings,Bakery premixes,Chemical pigments,Rubber granules,Ptfe granules
Steps before
Pneumatic Conveying,Material Loading,Pre-filtration
Steps after
De-dusting,Material Handling,Storage
Input ingredients
conveying air,pneumatically fed materials,dust
Output ingredients
filtered air,de-oiled air,purified air
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Filter Housing Material
1.4301 stainless steel
De-dusting
Purified,de-oiled air up to 6 bar
Temperature Range
-20 to +60°C
Operating Pressure
0 bar to +0.1 bar (g)
Air Pressure for De-dusting
6 bar
Filter Cartridges Material
Anti-static polyester fleece / PTFE-coated,anti-static PE fleece
Air Jet Pipes
Arranged in a pivoting head
Automatic De-dusting
Yes
Pressure Shock-proof
Up to 1.0 bar (g)

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Continuous
Cleaning method
Automatic de-dusting
Temperature range
-20 to +60°C
Operating pressure
0 bar to +0.1 bar (g)
Pressure shock-proof
Up to 1.0 bar (g)
De-dusting air pressure
Up to 6 bar
Filter cartridge handling
Folding head,easy removal

Material Compatibility


Abrasion resistance
Anti-static PE fleece
Corrosive resistance (e.g. acids)
1.4301 stainless steel
Density/particle size
Depends on product fineness/type


ATEX certification
2014/34/EU

Physical Characteristics


Material
1.4301 stainless steel
Filter housing shape
Cylindrical
Filter housing feature
Folding filter head
Integrated weather hood
Compressed air reservoir
Pivoting head with air jet pipes
Filter cartridge material
Anti-static polyester fleece/PTFE-coated anti-static PE fleece
Temperature range
-20 to +60°C
Operating pressure
0 to +0.1 bar (g)
Pressure shock-proof
Up to 1.0 bar (g)

Custom Options


Weather protection
Integrated weather hood
