Container exterior cleaning for pharmaceutical applications
Achieve consistent cleanliness and dryness for your containers with high-speed precision technology, ensuring product integrity and compliance in your pharmaceutical operations.
Cleans and Dries Pharmaceutical Containers Efficiently

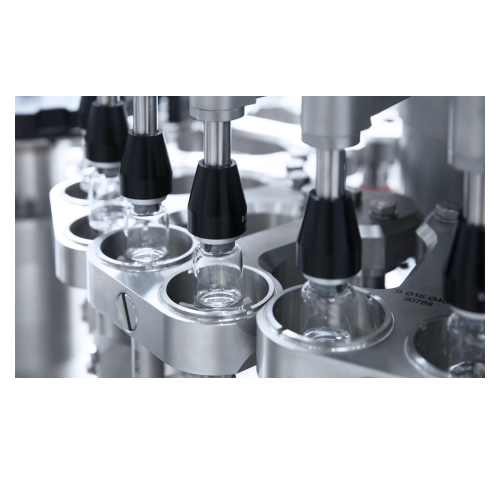

The ARM Series from Bausch+Ströbel includes the ARM 1036 and ARM 10600 models, specialized container cleaning and drying machines designed for the pharmaceutical industry. These machines excel in removing product residues from container exteriors using a rotating cleaning system combined with concentric drying nozzles, efficiently processing up to 36,000 containers per hour. Ideal for vial, ampoule, and syringe barrel applications, the ARM series machines facilitate seamless integration into high-speed, continuous processing lines. Engineered with pharmaceutical-grade materials, they offer gentle transport to prevent damage and feature optional retractable water recycling for media use reduction by up to 90%. Compliance with stringent GMP standards ensures suitability for critical pharmaceutical environments. Maintenance is simplified with Washing In Place (WIP) capabilities and real-time monitoring of temperature and pressure. Custom configurations and engineering support are available to match specific operational requirements, maximizing both efficiency and product integrity.
Benefits
- Ensures high purity of pharmaceutical products by thoroughly removing external residues.
- Increases operational efficiency with processing speeds up to 36,000 containers per hour.
- Cuts cleaning media costs by up to 90% with optional water recycling.
- Minimizes maintenance downtime with integrated Washing In Place (WIP) systems.
- Complies with GMP standards to maintain strict pharmaceutical production quality.
- Applications
- Biopharmaceuticals,Container cleaning,Liquid formulations,Pharmaceuticals
- End products
- Pharmaceutical bottles,Vaccine containers,Infusion bottles,Vials,Syringe barrels,Ampoules,Biologic containers,Diagnostic containers
- Steps before
- Cleaning,Rinsing,Container loading
- Steps after
- Drying,Labeling,Packing,Tray-loading
- Input ingredients
- containers,product residues,cleaning media,washing solutions
- Output ingredients
- clean containers,dried containers,recycled cleaning media
- Market info
- Bausch Stroebel specializes in manufacturing high-quality pharmaceutical packaging and processing machinery, renowned for their precision, reliability, and innovation in filling and packaging lines for the pharmaceutical industry. They are respected for tailored solutions and advanced engineering.
- Output
- Up to 36,000 items/h
- Container Diameter
- 14 - 53 mm
- Container Height
- 35 - 96 mm
- Output
- Up to 12,000 items/h
- Container Diameter
- 14.25 - 52 mm
- Container Height
- 30 - 105 mm
- Cleaning Method
- WIP (Washing In Place) – complete spray down
- Drying Method
- Top to bottom drying by concentric nozzles
- Optional Extras
- Integrated,retractable water recycling station
- Optional Extras
- Preconfigured for a 3rd rinsing station (ARM 1036)
- Optional Extras
- Preconfigured for an additional cleaning medium
- Pressure Monitoring
- Yes
- Temperature Monitoring
- Yes
- Service Portal Vision System
- Cleanroom Compatible
- Reject Discharge
- Yes
- Cleaning method
- WIP (Washing In Place)
- Automation level
- Easy and centralized operation
- Batch vs. continuous operation
- Batch
- Energy efficiency
- Integrated,retractable water recycling station
- Changeover time
- Short set-up time
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container diameter
- 14 - 53 mm (ARM 1036),14.25 - 52 mm (ARM 10600)
- Container height
- 35 - 96 mm (ARM 1036),30 - 105 mm (ARM 10600)
- Processing range
- Up to 36,000 items/h (ARM 1036),up to 12,000 items/h (ARM 10600)
- Container diameter
- 14 - 53 mm
- Container height
- 30 - 105 mm
- Control panel type
- Easy and centralized operation
- Water recycling station
- Integrated,retractable
- Rinsing stations
- Preconfigured for a 3rd rinsing station
- Additional cleaning medium
- Preconfigured
- Purging system
- Purging of water lines downstream of the cycle valve
- Monitoring systems
- Temperature and Pressure monitoring
- Vapor management
- Vapor escape management
- Reject discharge
- Configured for reject discharge
- Vacuum pump
- Free-standing
- Transition and linkage
- To machine downstream
- Control system
- Easy and centralized operation
