Consistent material supply system for industrial applications

Ensure seamless production with a system designed for continuous, air-bubble-free material supply, optimizing your dispensing and mixing processes for both batch and continuous operations.

Provides Continuous, Air-Bubble-Free Material Supply

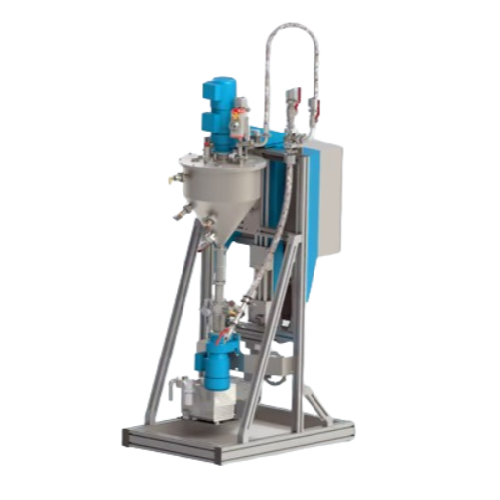

The ViscoTreat series from ViscoTec Pumpen- u. Dosiertechnik GmbH offers a tailored solution for efficient material supply in demanding industrial applications, ensuring precision without interruption. Utilizing the endless piston principle, this system delivers continuous, pulsation-free operation ideal for viscous fluids in automotive, aerospace, and pharmaceutical manufacturing. With customizable container volumes ranging from 300 ml to 80 liters and a viscosity handling capacity of up to 2,000,000 mPas, ViscoTreat systems effectively manage processes from dental composites to chocolate fillings. Optimized for seamless integration, the systems are equipped with vacuum suction for air-bubble-free dispensing, suitable for both continuous and batch operations. The durable construction supports diverse material options, ensuring resistance to corrosive elements, while optional automation features enhance production line efficiency. Engineering support and system customizations are available to meet specific production demands, ensuring optimal performance across all deployed industries.

Benefits

  • Ensures consistent, uninterrupted production with air-bubble-free material supply.
  • Adapts to high-viscosity materials, enhancing flexibility across multiple industries.
  • Customizable capacity optimizes resource allocation and minimizes waste.
  • Easily integrates into existing production lines, reducing retrofit costs.
  • Promotes efficient material handling, minimizing operational downtime.

General


Applications
Food,Automotive,E-mobility,Consumer goods,Cosmetics,3d printing,Dental,Aerospace,General industry,Medical technology,Electronics,Pharmaceuticals
End products
Led encapsulation,Li-ion battery modules,Lip gloss,Printed circuit boards,Consumer electronics housing,Silicone sealants,Chocolate fillings,3d printed medical implants,Cosmetic creams packaging,Aerospace sealants,Dental composites,Pharmaceutical ointments,Epoxy resin components,Adhesive dispensing in automotive assembly
Steps before
Material Preparing,Mixing,Preheating
Steps after
Dosing,Quality Inspection,Packaging
Input ingredients
low to high viscosity materials,viscous fluids,up to 2,000,000 mPas viscosity
Output ingredients
consistent product supply,air-bubble-free supply,seamless production,continuous material treatment
Market info
Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.

Technical Specifications


Container volume
300 ml to 80 l
Viscosity range
up to 2,000,000 mPas
Supply capacity
Individually customizable
Container size
2.5 l,15 l,25 l,80 l
Dosing volume
~1.7 to ~13.5 ml/rev
Volume flow (ViscoTreat-Im)
approx. 0.4 to 105 ml/min
Volume flow (ViscoTreat-Inline)
approx. 144 to 910 ml/min
Container size (Hydraulic accumulator)
300 ml

Operating Characteristics


Working Mechanism
Endless Piston Principle
Flow Type
Continuous and Pulsation-Free
Batch vs. Continuous Operation
Batch and Inline Continuous
Air-Bubble-Free Supply
Optional Vacuum Suction
Material Handling
Low to High Viscosity
Capacity Utilization
Optimal without Standstill
Pressure Fluctuation Compensation
Yes
Automation Level
Customizable Supply Capacity

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy to clean
Viscosity range compatibility
Low to high viscosity (up to 2,000,000 mPas)
Bubble-free supply capability
Yes,air-bubble-free supply

Physical Characteristics


Container size
2.5 l,15 l,25 l,80 l
Container volume
300 ml to 80 l
Footprint
Compact
Material compatibility
1-component and 2-component materials
Feed/discharge method
Continuous and constant
Supply capacity
Individually customizable

Custom Options


Container volume
300 ml to 80 l
Supply capacity
Individually customizable
Viscosity range
Up to 2,000,000 mPas
Container size options
2.5 l,15 l,25 l,80 l
