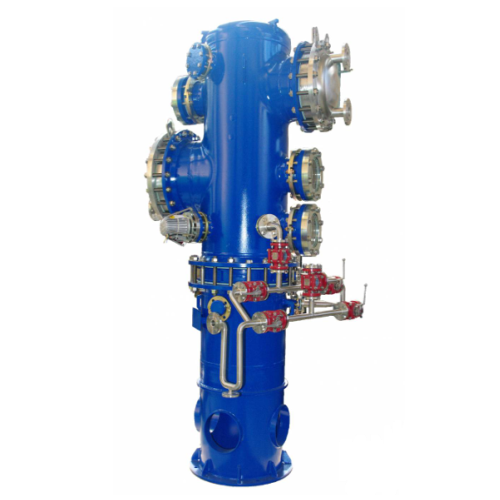

Condensation and separation unit for solvent handling

Enhance solvent management and VOC recovery with this compact condensation and separation unit, minimizing space and piping while ensuring efficient, modular operation for liquid formulations and active pharmaceutical ingredients.

Condenses, Separates, and Recovers Solvents Efficiently

The Thermipack® Condensation and Separation Unit from De Dietrich Process Systems integrates multiple processing steps—condensation, separation, and VOC recovery—into a compact, modular design ideal for biopharmaceutical, fine chemical, and specialty chemical industries. This unit utilizes a two-stage plate condenser to effectively reduce uncondensed solvents, enhancing both the recovery rate and operational efficiency. Its applications span across producing antibiotic solutions, active pharmaceutical ingredients (APIs), specialty solvents, and plant-based extracts. Handling both continuous and batch processes, Thermipack® is adaptable to various scales of operation, including pilot and modular setups, with options in enamel, stainless steel, or alloy construction to suit specific material compatibilities. The system’s design reduces space requirements by up to four times compared to conventional setups and minimizes piping by 80%, leading to lower installation and investment costs. Ensuring ease of maintenance, its FDA-compliant interior supports quick, reliable cleaning with integrated spray nozzles, eliminating the need for disassembly.

Benefits

  • Optimizes space utilization, reducing installation footprint by up to 75%.
  • Decreases project costs with simplified piping, cutting connection needs by 80%.
  • Enhances solvent recovery efficiency, minimizing VOC emissions.
  • Ensures quick turnaround with built-in FDA-compliant cleaning system.
  • Provides versatile operation for continuous, batch, and pilot production environments.

General


Applications
Green chemistry,Liquid formulations,Specialty chemicals,Fine chemicals,Agricultural chemicals,Biopharmaceuticals,Essential oils,Plant-based ingredients,Pigments,Pharmaceuticals
End products
Liquid fertilizers,Organic dyes,Specialty solvents,Emulsifying agents,Active pharmaceutical ingredients (apis),Synthetic pigments,Plant-based extracts,Biopolymer solutions,Antibiotic solutions,Essential oil distillates
Steps before
Solvent Handling,Volatile Organic Compounds Recovery,Material Preparation
Steps after
Solvent Storage,Chemical Analysis,Pre-treatment
Input ingredients
solvents,volatile organic compounds (VOC),liquids for condensation
Output ingredients
condensed solvents,separated solvents,VOC reduced emissions
Market info
De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.

Technical Specifications


Condensing Unit Sizes
3 sizes up to 16m²
Material Options
Enamel,stainless steel,alloy
VOC Recovery
Two-stage plate condensers
Cleaning Method
Spray nozzles,FDA compliant
Space Requirement
4 times smaller than conventional designs
Pipework Reduction
Up to 80% reduction

Operating Characteristics


Modular Design
Yes
Integrated Steps
Condensation,Separation,Storage
Automation Level
Manual / PLC
Cleaning Method
CIP
Batch vs. Continuous Operation
Batch
Space Efficiency
Compact Design
VOC Reduction
Two-Stage Condensers

Physical Characteristics


Machine Footprint
Compact
Compactness
Space requirement 4 times smaller than conventional design
Material
Enamel,Stainless Steel,Alloy
Size Options
3 sizes covering reactors up to 16m²
Discharge Method
Smooth inside and outside surfaces

Custom Options


Modular Design
Yes
Material Selection
Enamel,Stainless Steel,Alloy
Integration Options
VOC Recovery Integration
